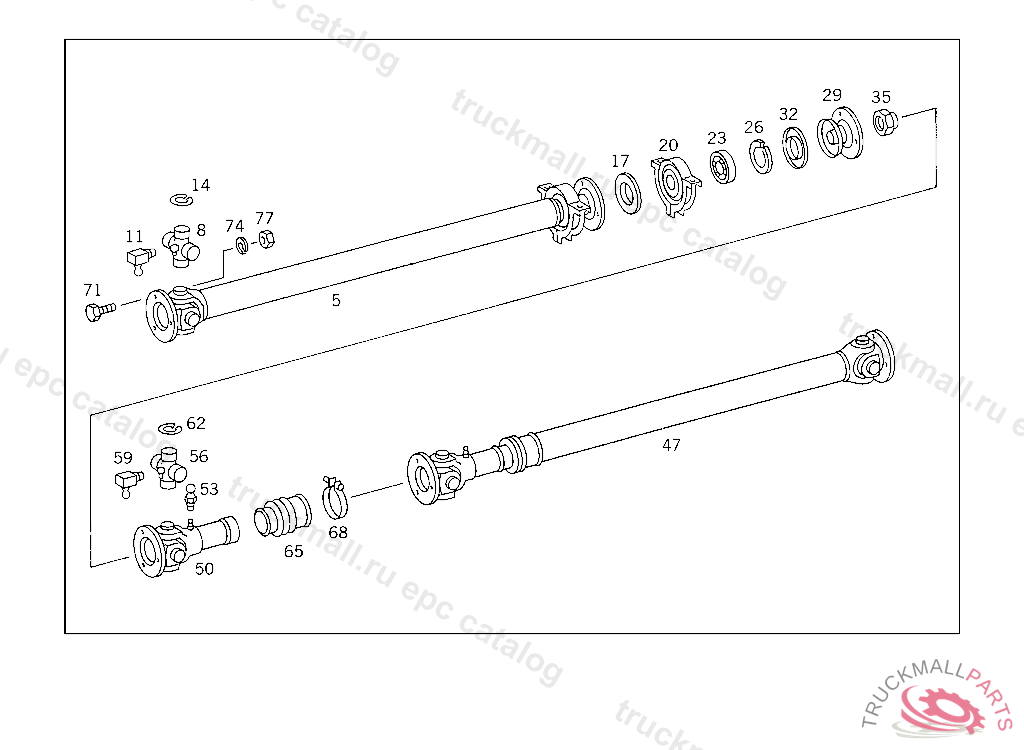

Поз.
Артикул
Описание
5
PROPELLER SHAFT FRONT,FROM TRANSMISSION TO INTERMEDIATE BEARING
8
UNIVERSAL JOINT CROSS WITH BUSHINGS, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
11
GREASE NIPPLE
14
SNAP RING2.650 MM
14
SNAP RING2.550 MM
14
SNAP RING2.700 MM
14
SNAP RING2.750 MM
14
SNAP RING2.600 MM
14
SNAP RING2.500 MM
17
PROTECTIVE CAP , FROM CHASSIS 015333 EXCEPT FOR 016649-016950
20
INTERMEDIATE BEARING INTERMEDIATE SHAFT BEARING, DELIVER ADDITIONALLY: 1X 310 411 00 72
23
BALL BEARING , Replaced By: A0079815825
23
BALL BEARING , UP TO CHASSIS 015332 ALSO INSTALLED ON 016649-016950
23
BALL BEARING , FROM CHASSIS 015333 EXCEPT FOR 016649-016950
23
BALL BEARING , FROM IDENT NO. 015333 EXCEPT FOR 016649-016950
26
LOCK RING DISC SUPPORT
26
SNAP RING72 MM
29
CENTERING FLANGE , UP TO CHASSIS 015332 ALSO INSTALLED ON 016649-016950
29
CENTERING FLANGE , FROM CHASSIS 015333 EXCEPT FOR 016649-016950
32
PROTECTIVE CAP , FROM CHASSIS 015333 EXCEPT FOR 016649-016950
35
NUT
35
NUT
47
PROPELLER SHAFT FROM TRANSMISSION TO TRANSFER CASE L1291 MM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
50
UNIVERSAL JOINT YOKE
53
GREASE NIPPLE , Replaced By: N071412008102
53
GREASE NIPPLE
56
UNIVERSAL JOINT CROSS WITH BUSHINGS, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
59
GREASE NIPPLE
62
SNAP RING2.650 MM
62
SNAP RING2.550 MM
62
SNAP RING2.750 MM
62
SNAP RING2.700 MM
62
SNAP RING2.600 MM
62
SNAP RING2.500 MM
65
BOOT
68
CLAMP
68
CLAMP , WITH BOOT
71
HEX. HEAD SCREW. SCREW PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE, LOCK WASHER MUST NOT BE INSTALLED
71
SCREW , Replaced By: A3539900001
74
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
77
NUT FROM PROPELLER SHAFT TO FRONT AXLE
999
BOOT , Replaced By: A3144100080
999
PROPELLER SHAFT , Replaced By: A3214103402
999
INTERMEDIATE BEARING , 309.302,303,324,325,326 UP TO IDENT NO. 082939 AND FROM IDENT NO. 086539-087431, Replaced By: A3095860141, +001A3104100230, +002N912009072200
999
INTERMEDIATE BEARING , 309.302,303,324,325,326 UP TO IDENT NO. 082939 AND FROM IDENT NO. 086539-087431, Replaced By: A3095860141, +001A3104100230, +002N912009072200
999
REPAIR KIT , Replaced By: A3094100110
999
REPAIR KIT , Replaced By: A3104100822
999
UNIVERSAL JOINT CROSS , Replaced By: A3854100231
