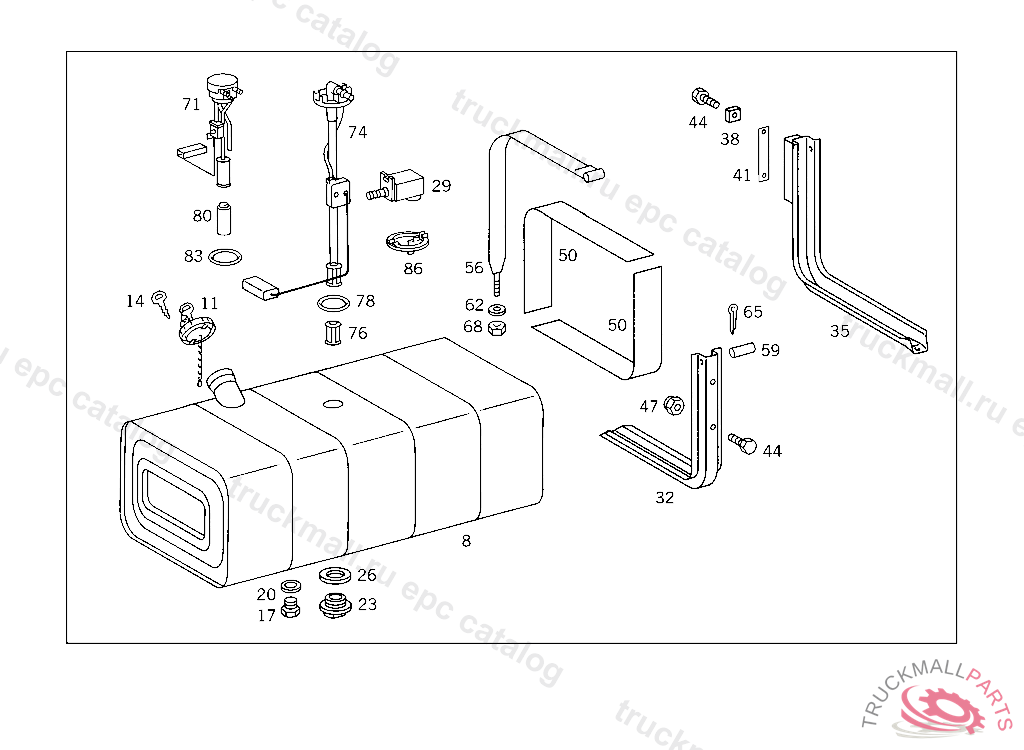

Поз.
Артикул
Описание
8
FUEL TANK , Replaced By: A3884709701
8
FUEL TANK , Replaced By: A3884709701
8
FUEL TANK LESS SENDER UNIT 300 L
8
FUEL TANK LESS SENDER UNIT 300 L
11
FILLER CAP
11
FILLER CAP
17
SCREW PLUG AT TANK
20
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
23
FITTING
26
SEAL RING AT TANK
26
SEAL RING FUEL STRAINER SCREEN
44
SCREW CONSOLE TO SIDE MEMBER M 14X1.5X40
44
SCREW , Replaced By: N308676014012
44
SCREW STEERING SUPPORT TO FRAME M 14X55
47
NUT , Replaced By: N910113014001
47
NUT , Replaced By: N910113014000
50
SHIM CROSS MEMBER AND STRUT TO SIDE MEMBER
50
SHIM BRAKE ANCHOR
50
SHIM FUEL TANK CONSOLE
50
PAD FUEL TANK TO CONSOLE
56
STRAP ,B 959934
59
PIN STRAP TO SUPPORT
62
WASHER SUPPORT TO FRAME,D 127794
65
COTTER PIN STRAP TO SUPPORT
68
NUT FUEL TANK TO SUPPORT
71
SENDER UNIT , Replaced By: A3865427217
71
SENDER UNIT FUEL GAUGE
71
SENDER UNIT FUEL GAUGE
83
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
999
SHIM FUEL TANK TO SUPPORT, NOT USED
999
THRUST PLATE SUPPORT TO FRAME, NOT USED
999
SUPPORT FRONT FUEL TANK, NOT USED
999
EXTENSION FUEL TANK TO SUPPORT, NOT USED
999
FUEL TANK LESS SENDER UNIT AND LESS SCREW CONNECTION PARTS
999
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426317, +001A0005409917
999
FUEL STRAINER FUEL TANK,K 169122
