Поз.
Артикул
Описание

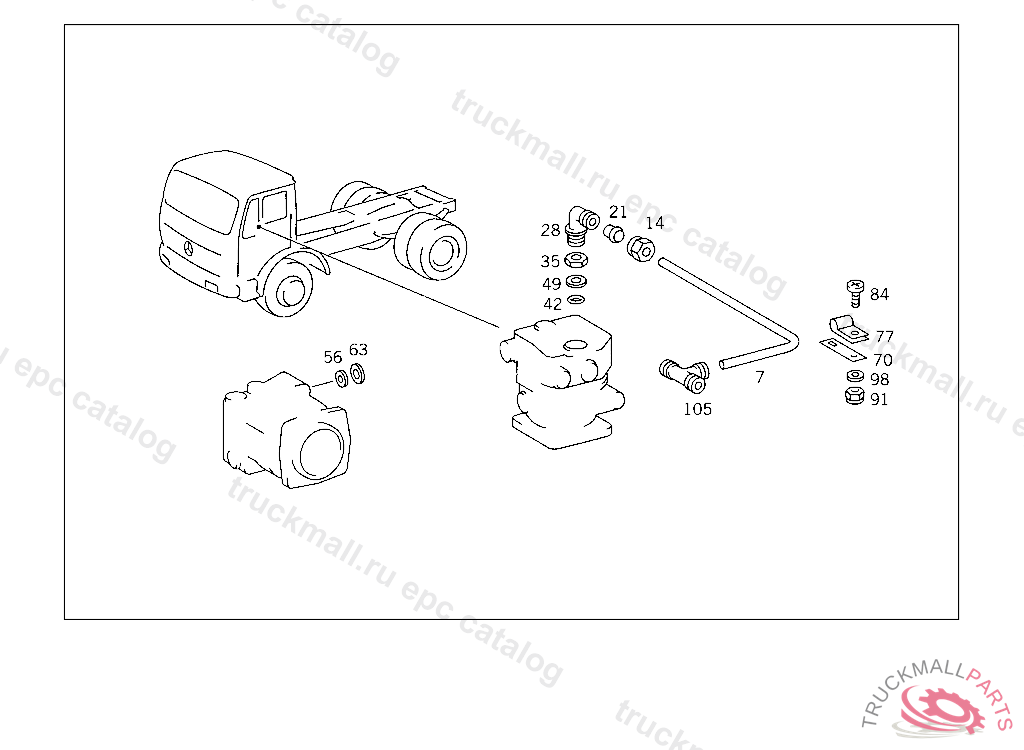

7
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
14
UNION NUT BUTT SCREW CONNECTION
21
GLAND LINE CONNECTION
28
ELBOW FITTING BUTT SCREW CONNECTION "20",5 271048
35
NUT SUCTION LINE TO OIL PUMP
42
SEAL RING LINE CONNECTION
49
THRUST RING SUCTION LINE TO OIL PUMP
56
THRUST RING BUTT SCREW CONNECTION
63
SEAL RING , Replaced By: N007603012121
63
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
70
BRACKET , Replaced By: A3604293140
70
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
77
CLAMP LINE MOUNTING
77
CLAMP , Replaced By: A6739950001
77
CLAMP DELIVERY AND SUCTION LINES TO STEERING
84
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
84
SCREW CLAMP TO BRACKET
91
NUT , Replaced By: N913004006001
91
NUT PUMP TO BRACKET
98
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
98
WASHER COMPRESSED AIR LINE TO BRACKET
105
T-FITTING BETWEEN THE LINES
999
T-FITTING , Replaced By: A0009902370
