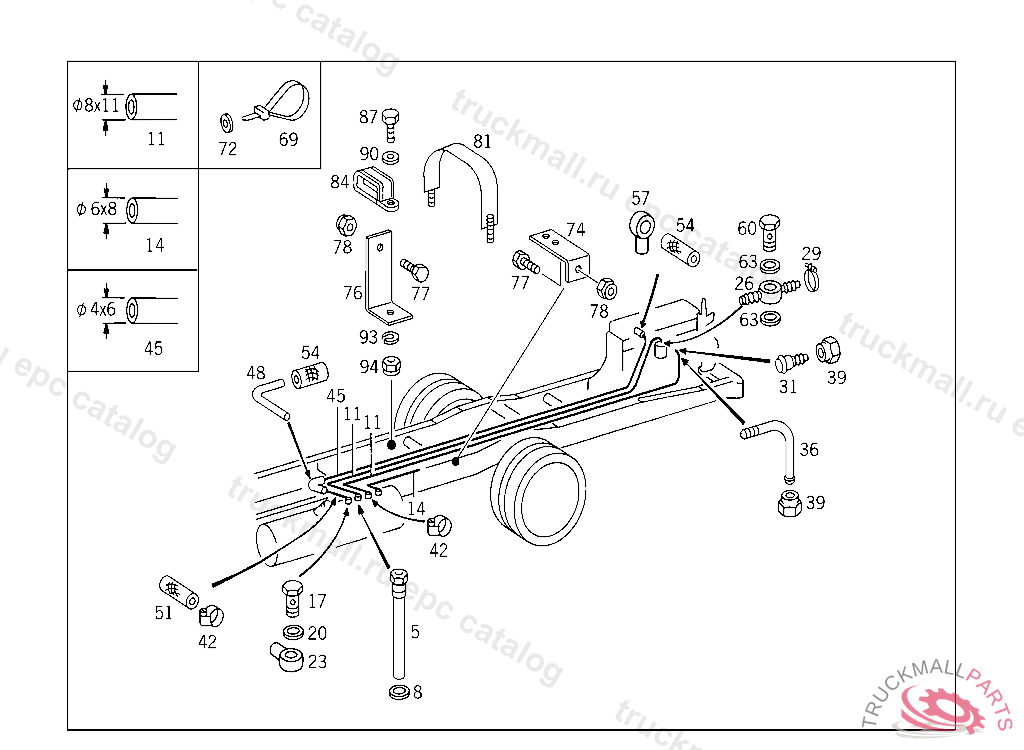

Поз.
Артикул
Описание
11
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
14
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
23
BANJO UNION
26
BANJO UNION FROM HOSE TO FEED PUMP
26
BANJO UNION FEED
31
FITTING RETURN
39
NUT. UNION NUT RETURN
42
CLAMP , Replaced By: N916017011001
42
CLAMP LINE MOUNTING
42
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
48
HOSE , Replaced By: A3849977082, +001A3829907088
51
HOSE FEED LINE AND RETURN LINE
54
INSULATING HOSE , ORDER BY THE METER
54
INSULATING HOSE CHECK VALVE,CONNECTION "2"
69
LOOM TIE AIR INTAKE HOSE TO CLAMP
72
WASHER , Replaced By: A3609902340
76
BRACKET BRAKE LINE COUPLING TO REAR CROSS MEMBER
77
SCREW BRACKET TO BUMPER,LEFT M 10X25
78
NUT BRACKET TO SIDE MEMBER,XB209706
81
CLAMP CLAMP TO BRACKET
84
CLAMP FUEL LINES TO BRACKET
87
SCREW STEERING SHAFT BEARING TO CAB M 8X20
90
WASHER TRAILER PLUG SOCKET TO BRACKET
93
LOCK WASHER RAIL TO BATTERY SUPPORT
94
NUT TAIL LAMP TO BRACKET
