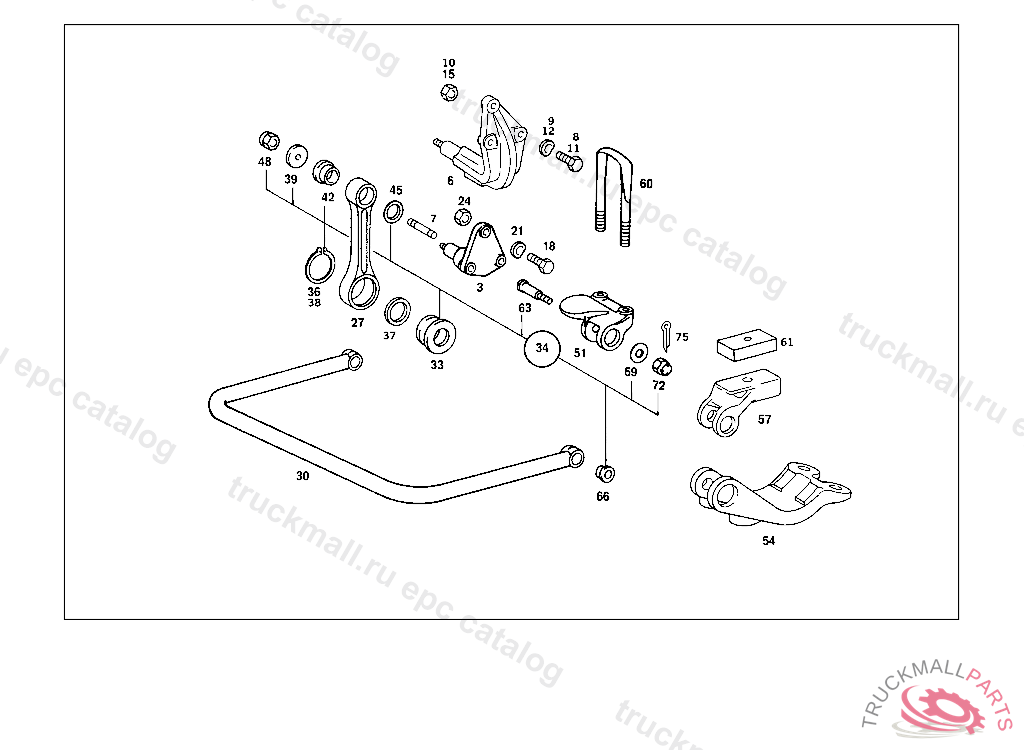

Поз.
Артикул
Описание
3
BEARING BRACKET REAR AXLE STABILIZER
3
BEARING BRACKET , Replaced By: A3873200178
3
CONSOLE , Replaced By: A3873230563, +001N000939012102
6
BEARING BRACKET , Replaced By: A3873200478, +002N000961014008, +002N000961014063, +004N000961014065
6
CONSOLE LINK TO RIGHT SIDE MEMBER,4 207082
6
CONSOLE LINK TO LEFT SIDE MEMBER,4 207082
7
STUD BOLT
8
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
8
SCREW BRACKET TO SIDE MEMBER
8
SCREW MOUNTING TO CONSOLE M 14X55
8
SCREW APPARATUS SUPPORT TO FRAME
8
SCREW , Replaced By: A9429901304
8
SCREW , Replaced By: N308676014003
9
SPRING WASHER BRACKET TO TIMING CASE
9
SPRING WASHER BEARING BRACKET TO SIDE MEMBER,4 207081
10
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
10
NUT , Replaced By: N910113014000
10
NUT , Replaced By: N308673016001
10
NUT , Replaced By: N308673014001
10
NUT BRACKET TO SIDE MEMBER,K 035196
10
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
10
NUT COMBINATION CYLINDER TO BEARING BRACKET
10
NUT STEERING SUPPORT TO FRAME
11
SCREW BRACKET TO SIDE MEMBER
12
SPRING WASHER BEARING BRACKET TO SIDE MEMBER,4 207081
15
NUT BRACKET TO SIDE MEMBER,K 035196
15
NUT , Replaced By: N308673014001
18
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
18
SCREW BRAKE LINE COUPLING TO REAR CROSS MEMBER
21
SPRING WASHER BRACKET TO TIMING CASE
24
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
24
NUT COMBINATION CYLINDER TO BEARING BRACKET
27
SHACKLE. LINK TORSION BAR
27
LINK ,4 707617, Replaced By: A3893230116, +001A3873230185
27
LINK ,4 707917, Replaced By: A3873230816, +001A3873230185
27
LINK TORSION BAR TO CONSOLE
30
TORSION BAR
30
TORSION BAR FRONT AXLE
30
TORSION BAR TRAILING AXLE STABILIZER
30
TORSION BAR ,4 394061
33
RUBBER MOUNTING TORSION BAR TO SHACKLE,4 707917
33
RUBBER MOUNTING TORSION BAR,4 707617
33
RUBBER MOUNTING TORSION BAR TO BEARING BRACKET,5 903513
33
RUBBER MOUNTING SHACKLE TO TORSION BAR
33
RUBBER MOUNTING TORSION BAR,4 3940614 707617
33
RUBBER MOUNTING TORSION BAR TO SHACKLE,4 707918
34
REPAIR KIT TORSION BAR MOUNTING,4 707917 DELIVER ADDITIONALLY:2X 000471 032000,2X 000125 033001 UP TO IDENT NO. 965965
34
REPAIR KIT , Replaced By: A6203200228
34
REPAIR KIT , Replaced By: A3933200328
34
REPAIR KIT , Replaced By: A3933200128
34
REPAIR KIT , Replaced By: A3873200028
34
PIN , Replaced By: A6203200228
34
REPAIR KIT TORSION BAR MOUNTING,4 707918
34
REPAIR KIT TORSION BAR MOUNTING,4 3940614 707617
34
REPAIR KIT TORSION BAR MOUNTING
34
REPAIR KIT TORSION BAR MOUNTING,4 707618
34
REPAIR KIT TORSION BAR MOUNTING,4 394060 DELIVER ADDITIONALLY:2X 000125 033001,2X 000471 032000 UP TO IDENT NO. 4 1498724 707617
36
LOCK RING SHACKLE TO TORSION BAR
37
SPACER WASHER SHACKLE TO BEARING BRACKET
38
LOCK RING SHACKLE TO BEARING BRACKET,965965
39
WASHER SHACKLE TO BEARING BRACKET,965965
42
BUSHING SHACKLE TO BEARING BRACKET
45
SPACER WASHER SHACKLE TO BEARING BRACKET
48
NUT SUPPORT TO SIDE MEMBER
51
BEARING LEFT
51
BEARING RIGHT
54
BEARING LEFT
54
BEARING RIGHT
57
BRACKET RIGHT
57
BRACKET LEFT
60
U-BOLT FRONT SPRINGS TO FRONT AXLE 330 MM
60
U-BOLT FRONT SPRINGS TO FRONT AXLE 290 MM
60
U-BOLT FRONT SPRINGS TO FRONT AXLE 245 MM
60
U-BOLT FRONT SPRINGS TO FRONT AXLE 275 MM
60
U-BOLT , Replaced By: A3363310025
61
SHIM FRONT SPRINGS TO FRONT AXLE
61
SHIM FRONT SPRINGS TO FRONT AXLE,4 630569
63
CENTERING BOLT FRONT SPRINGS TO FRONT AXLE 28 MM
63
PIN FRONT SPRINGS TO FRONT AXLE 28 MM, Replaced By: A9303230374
63
PIN , Replaced By: A6573310074
66
PIN , Replaced By: A6203200228
66
BUSHING TORSION BAR TO BEARING BRACKET
69
DISC SPRING TORSION BAR TO BEARING BRACKET
72
NUT TORSION BAR TO BEARING BRACKET
75
COTTER PINROCKINGER TYP 260 G140
999
SCREW BRACKET TO TRANSMISSION
999
SCREW , Replaced By: N308676012038
999
U-BOLT
999
PLATE , Replaced By: A6243220131
999
PLATE , Replaced By: A6243220031
999
U-BOLT FRONT SPRINGS TO FRONT AXLE 212 MM,5 0251885 184732
