Поз.
Артикул
Описание

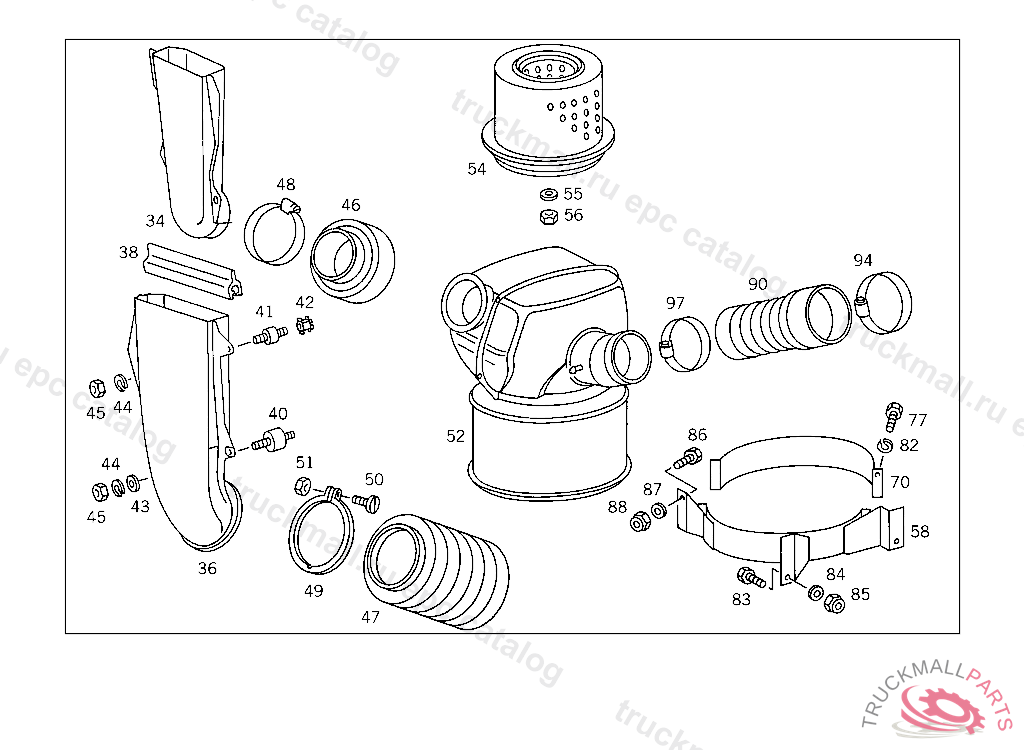

34
AIR INTAKE PIPE ,4 258299
34
AIR INTAKE PIPE ,4 258299
34
AIR INTAKE PIPE ,4 258299
34
AIR INTAKE PIPE ,4 258299
36
AIR INTAKE PIPE LEFT, UP TO IDENT NO.4 872645, FROM IDENT NO. SEE GROUP 83
36
AIR INTAKE PIPE LEFT, UP TO IDENT NO.4 872645, FROM IDENT NO. SEE GROUP 83
36
AIR INTAKE PIPE RIGHT, UP TO IDENT NO.4 872645, FROM IDENT NO. SEE GROUP 83
36
AIR INTAKE PIPE RIGHT, UP TO IDENT NO.4 872645, FROM IDENT NO. SEE GROUP 83
38
BINDING RAIL , ORDER BY THE METER
40
BUFFER AIR INTAKE PIPE TO CAB, UP TO IDENT NO.4 872645, FROM IDENT NO. SEE GROUP 83
40
BUFFER AIR INTAKE PIPE TO CAB, UP TO IDENT NO.4 872645, FROM IDENT NO. SEE GROUP 83
40
RUBBER BUFFER , Replaced By: A3879880011
41
BUFFER AIR INTAKE PIPE TO CAB, UP TO IDENT NO.4 872645, FROM IDENT NO. SEE GROUP 83
42
NUT RETAINER AIR INTAKE PIPE TO CAB, UP TO IDENT NO.4 872645, FROM IDENT NO. SEE GROUP 83
42
NUT RETAINER , Replaced By: A0019901791
43
WASHER EXHAUST MUFFLER TO STRAP
43
WASHER , Replaced By: N000125008443
44
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
45
NUT
46
BOOT ,4 256253
46
BOOT , Replaced By: A3855280391
46
BOOT , Replaced By: A3855280391
47
BOOT AIR CLEANER TO CAB
48
LOOM TIE BOOT TO AIR INTAKE PIPE,4 256253
49
CLAMP BOOT TO INTAKE PIPE
50
SCREW BOOT TO AIR DUCT AND TO AIR CLEANER,5 946572
51
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
52
AIR CLEANER
52
AIR CLEANER ,4 256253, Replaced By: A0090945802, +001A3855200301, +001A3855200733, +002A3815280443, +001A3815280191
52
AIR CLEANER
52
AIR CLEANER ,4 256253, Replaced By: A0090945702, +001A3855200201, +001A6505200333, +002A3815280443, +001A3815280191
54
FILTER ELEMENT
54
FILTER ELEMENT , Replaced By: A0010949304
55
WASHER FELT
56
NUT
58
SUPPORT OIL BATH AIR CLEANER MOUNTING
58
SUPPORT AIR CLEANER
58
SUPPORT , Replaced By: A3855200733
58
SUPPORT OIL BATH AIR CLEANER MOUNTING
58
SUPPORT AIR CLEANER,K 000844
58
SUPPORT , Replaced By: A3855200633
70
STRAP AIR CLEANER TO SUPPORT
77
SCREW BRACKET TO CROSS CONNECTION STRUT
77
SCREW , Replaced By: N304017008034
82
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
83
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
83
SCREW , Replaced By: N308676012026
84
WASHER
85
NUT SUPPORT TO SIDE MEMBER
86
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
87
WASHER RADIATOR TO RUBBER MOUNTING
87
WASHER , Replaced By: N000125010532
88
NUT STRAP TO BRACKET
88
NUT , Replaced By: N910113010000
90
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
94
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
94
CLAMP , Replaced By: N000000000678
97
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
97
CLAMP , Replaced By: A0059971490
999
PIPE ELBOW , 10/20 UP TO IDENT NO. 4 348998,50/60 UP TO IDENT NO. 4 331113, Replaced By: A4010101564, +001A3520100468, +001A4010182540, +001A4010182640, +001A4020180482, +004N000933006121, +004N913004006001
