Поз.
Артикул
Описание

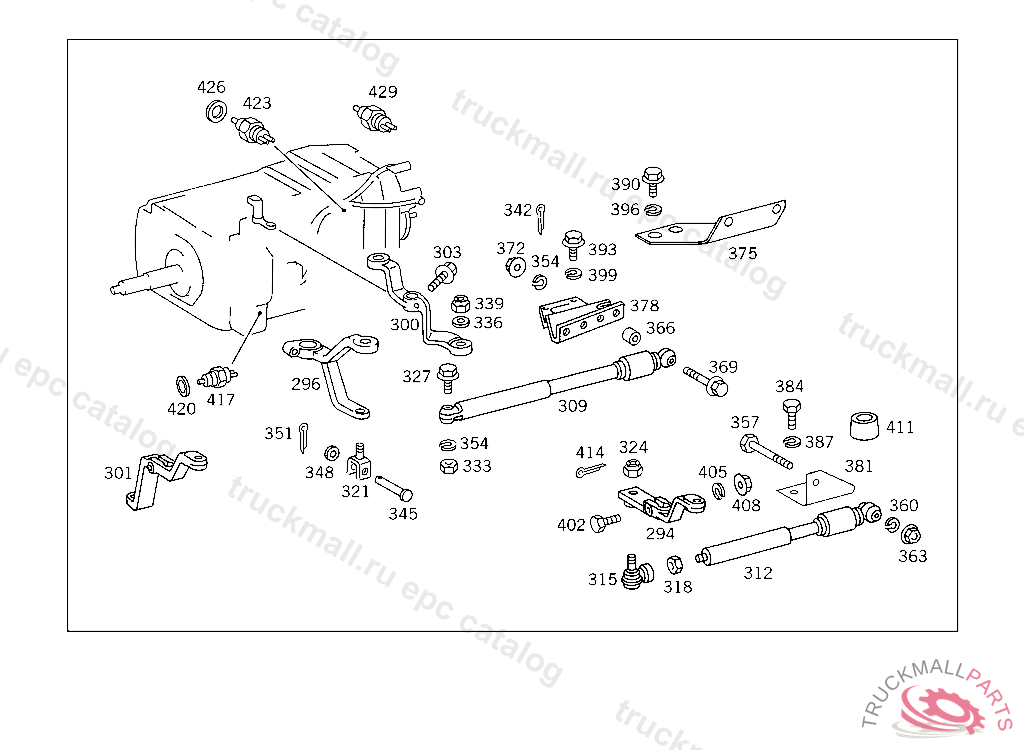

300
LEVER (SHIFT LEVER),4 929958
303
SCREW REAR EXHAUST PIPE TO MUFFLER
303
SCREW , Replaced By: N910105010011
309
VIBRATION ABSORBER
321
BRACKET VIBRATION ABSORBER TO TRANSMISSION
327
SCREW , Replaced By: N000000001441
333
NUT BATTERY CABLE
336
WASHER , Replaced By: N000125010532
339
NUT VIBRATION ABSORBER TO SHIFT LEVER
342
COTTER PIN BRACKET TO TELESCOPIC TUBE,K 142858
354
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
366
SPACER TUBE VIBRATION ABSORBER TO BRACKET
369
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME M 10X60
369
SCREW MOUNTING AND RAIL TO LEAF SPRING
372
NUT BRACKET TO SUPPORT AND TO END PIECE
372
NUT BATTERY CABLE
378
BRACKET VIBRATION ABSORBER TO TRANSMISSION
393
SCREW , Replaced By: N910142008001
393
SCREW , Replaced By: N304017008021
393
SCREW , Replaced By: N304017008034
393
SCREW , Replaced By: N910142008009
393
SCREW , Replaced By: N910143008002
399
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
417
SWITCH , Replaced By: A0005459009
420
SEAL RING IDLE POSITION SWITCH TO THREADED BUSHING, AS REQUIRED 1.80 MM
420
SEAL RING IDLE POSITION SWITCH TO THREADED BUSHING, AS REQUIRED 3.00 MM
420
SEAL RING IDLE POSITION SWITCH TO THREADED BUSHING, AS REQUIRED 2.20 MM
420
SEAL RING IDLE POSITION SWITCH TO THREADED BUSHING, AS REQUIRED 2.00 MM
420
SEAL RING IDLE POSITION SWITCH TO THREADED BUSHING, AS REQUIRED 2.60 MM
420
SEAL RING IDLE POSITION SWITCH TO THREADED BUSHING, AS REQUIRED 1.60 MM
420
SEAL RING IDLE POSITION SWITCH TO THREADED BUSHING, AS REQUIRED 2.40 MM
420
SEAL RING IDLE POSITION SWITCH TO THREADED BUSHING, AS REQUIRED 2.80 MM
423
SWITCH
423
SWITCH , Replaced By: A0015455709
426
SEAL RING SWITCH TO CASE COVER
429
SENDER UNIT , Replaced By: A0075422517
429
SENDER UNIT AT TRANSMISSION CASE TOP COVER
429
SENDER UNIT , Replaced By: A0105428017
429
SENDER UNIT , Replaced By: A0125424617, +001A3565400381
429
SENDER UNIT OVERSPEED WARNING BUZZER
