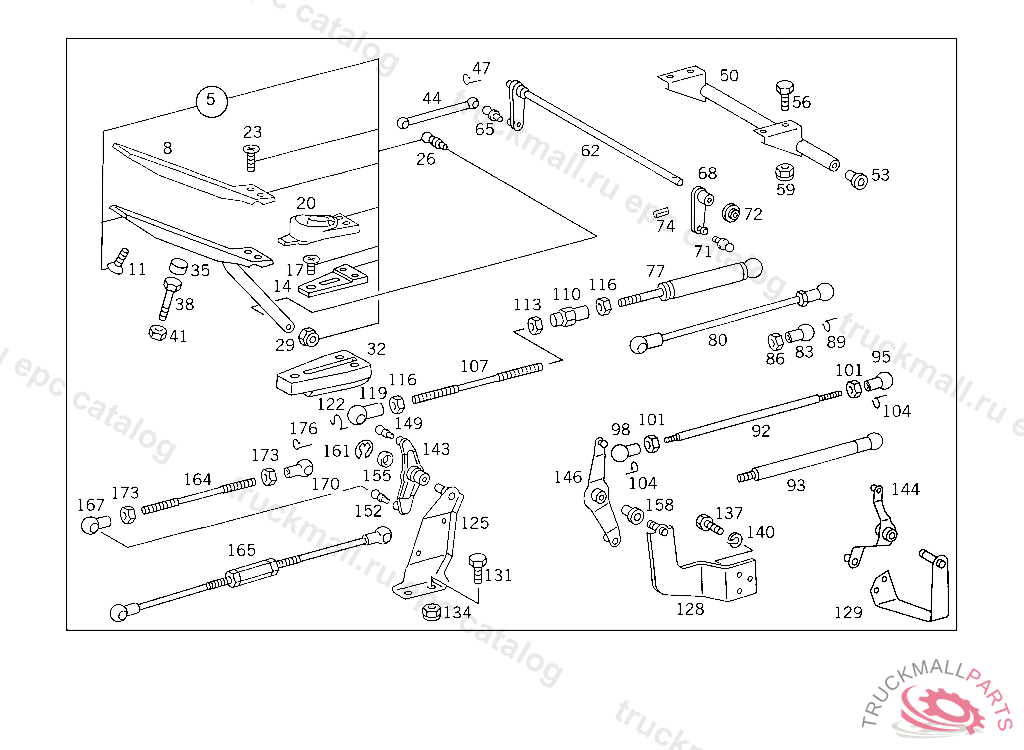

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW ACCELERATOR PEDAL TO CAB M 6X20
20
BOOT ACCELERATOR PEDAL
23
SCREW ACCELERATOR PEDAL TO CAB M 6X25
26
BALL PIVOT LOAD SENSOR
29
NUT AT FILTER BRACKET
29
NUT , Replaced By: N913004006001
32
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
35
STOP ACCELERATOR PEDAL
38
SCREW PEDAL STOP TO CAB FLOOR
38
SCREW VALVE TO BRACKET, Replaced By: N304014008002
38
SCREW. HEXAGON HEAD BOLT , Replaced By: A0019905504
41
NUT , Replaced By: N304032008006
41
NUT
44
BALL SOCKET ROD TO ACCELERATOR PEDAL
47
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
50
BEARING TUBE CONTROL SHAFT
53
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
56
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
59
NUT BRACKET TO BRACKET
62
SHAFT (CONTROL SHAFT)
65
BALL PIVOT
68
LEVER (CONTROL LEVER)
71
BALL PIVOT
72
COVERING
74
CLAMPING SLEEVE , Replaced By: N308752004001
77
ROD , Replaced By: A6583001715
83
SNAP RING SPRING-LOADED PUSH ROD
107
PULL ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING, TO BE ADAPTED DURING ASSEMBLY
110
TURNBUCKLE TURNBUCKLE
113
NUT LINK TO ACCELERATOR PEDAL
116
NUT BALL SOCKET TO ROD
119
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
122
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
125
BEARING BRACKET INTERMEDIATE BEARING
131
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
131
SCREW , Replaced By: N910105010009
134
NUT EXHAUST PIPE TO SIDE MEMBER
134
NUT , Replaced By: N910113010000
143
LEVER (INTERMEDIATE LEVER)
149
BALL STUD. BALL PIVOT TOP B10X4,5 MM
152
BALL PIVOT BOTTOM B13X5 MM
155
COVERING INTERMEDIATE BEARING
161
LOCK PLATE INTERMEDIATE BEARING
164
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
167
BALL SOCKET ROD TO BALL PIVOT
170
BALL SOCKET ROD TO BALL PIVOT
173
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
173
NUT TAIL LAMP TO BRACKET
176
SECURING CLIP. CIRCLIP
