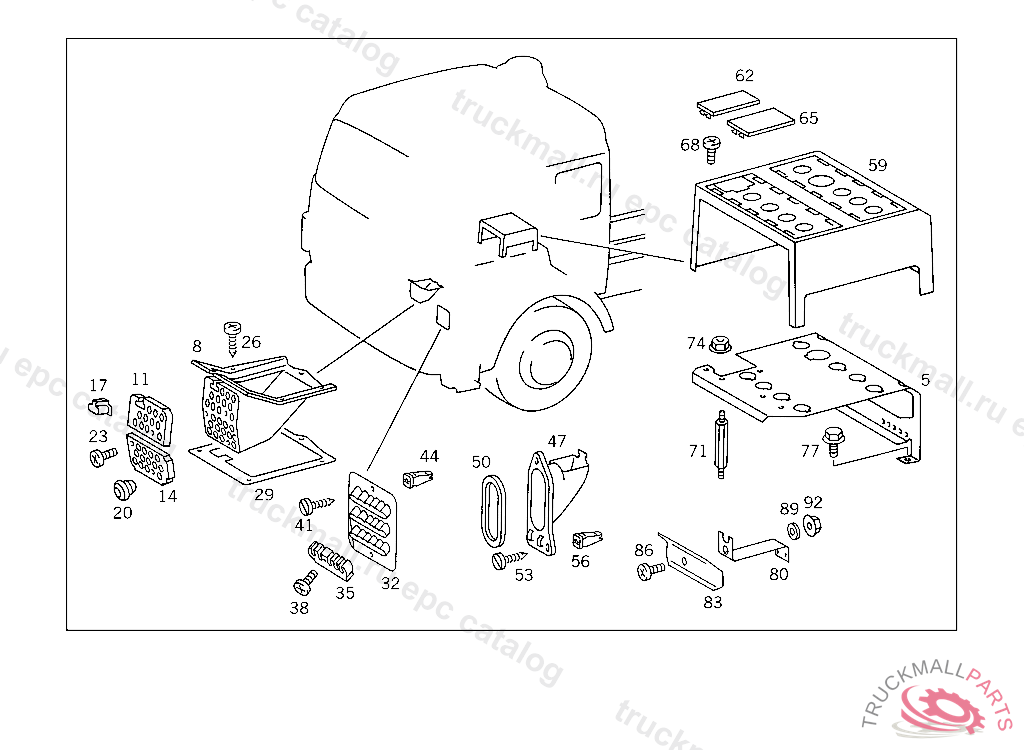

Поз.
Артикул
Описание
5
BRACKET (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
8
BRACKET (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
11
PLATE (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
14
PLATE (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
17
GASKET (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
20
RUBBER BUFFER TO PLUG THE FREE CONNECTIONS
23
SCREW PLATE TO BRACKET
26
SHEET METAL SCREW BRACKET TO FLOOR PLATE
29
GASKET BETWEEN BRACKET AND CAB FLOOR
32
BRACKET (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
35
PLATE COMPRESSED AIR LINE MOUNTING
38
SCREW PLATE TO BRACKET
41
SHEET METAL SCREW BRACKET TO FIRE WALL, Replaced By: N000000000529
44
TREENAIL BRACKET TO FIRE WALL, Replaced By: A6399980185
44
TREENAIL BRACKET TO FIRE WALL
47
BRACKET (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
53
SHEET METAL SCREW BRACKET TO FIRE WALL, Replaced By: N000000000529
56
TREENAIL BRACKET TO FIRE WALL, Replaced By: A6399980185
56
TREENAIL BRACKET TO FIRE WALL
59
PROTECTIVE PLATE BRACKET
62
COVERING IN PLACE OF SWITCH 82X44,5 MM
65
COVERING IN PLACE OF SWITCH 82X56,5 MM
68
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
71
PIN BRACKET TO ENGINE TUNNEL
74
NUT , Replaced By: N913004006001
74
NUT AT FILTER BRACKET
77
SCREW , Replaced By: N304017006034
77
SCREW , Replaced By: N304017006018
80
BRACKET HEAT SHIELD MOUNTING
83
COVERING EXHAUST PIPE
86
SCREW , Replaced By: N000000001146
86
SCREW CLAMP MOUNTING M 6X16
89
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
92
NUT , Replaced By: N913004006001
92
NUT AT FILTER BRACKET
