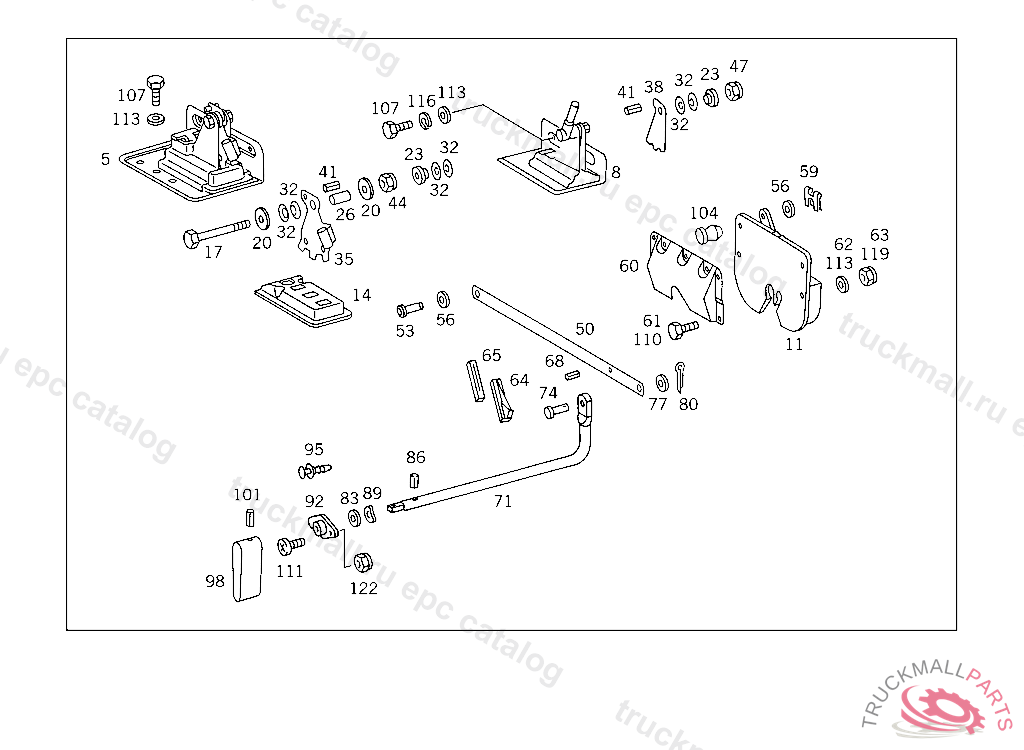

Поз.
Артикул
Описание
11
FASTENER (CENTRAL LOCK) CAB LOCKING MECHANISM
50
ROD CAB LOCKING MECHANISM, TO BE ADAPTED DURING ASSEMBLY
53
PIN PULL TO FASTENER
56
WASHER PULL ROD TO SHIFT LEVER
59
LOCK , Replaced By: N912002008003
61
SCREW LINE MOUNTING M 10X20
61
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
62
WASHER GROUND CABLE
63
NUT EXHAUST PIPE TO SIDE MEMBER
64
BRACKET ROD THRU CAB
65
SEAL ROD THRU CAB
68
CLAMPING SLEEVE ROD THRU CAB
71
LEVER CAB LOCKING MECHANISM,5 287191
74
PIN LEVER TO ROD
77
WASHER PULL ROD TO SHIFT LEVER
80
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
83
WASHER
86
CLAMPING SLEEVE HANDLE TO LEVER
89
SPRING WASHER BRACKET TO BRACKET
92
BUSHING LEVER TO CAB
95
RIVET BUSHING AND LEVER TO CAB
98
HANDLE CAB LOCKING MECHANISM
101
CLAMPING SLEEVE HANDLE TO LEVER
104
RUBBER BUFFER CAB
110
SCREW BRACKET TO BUMPER,LEFT M 10X25
110
SCREW COLD START SYSTEM TO BRACKET
113
WASHER , Replaced By: N000125010532
113
WASHER GROUND CABLE
119
NUT , Replaced By: N910113010000
