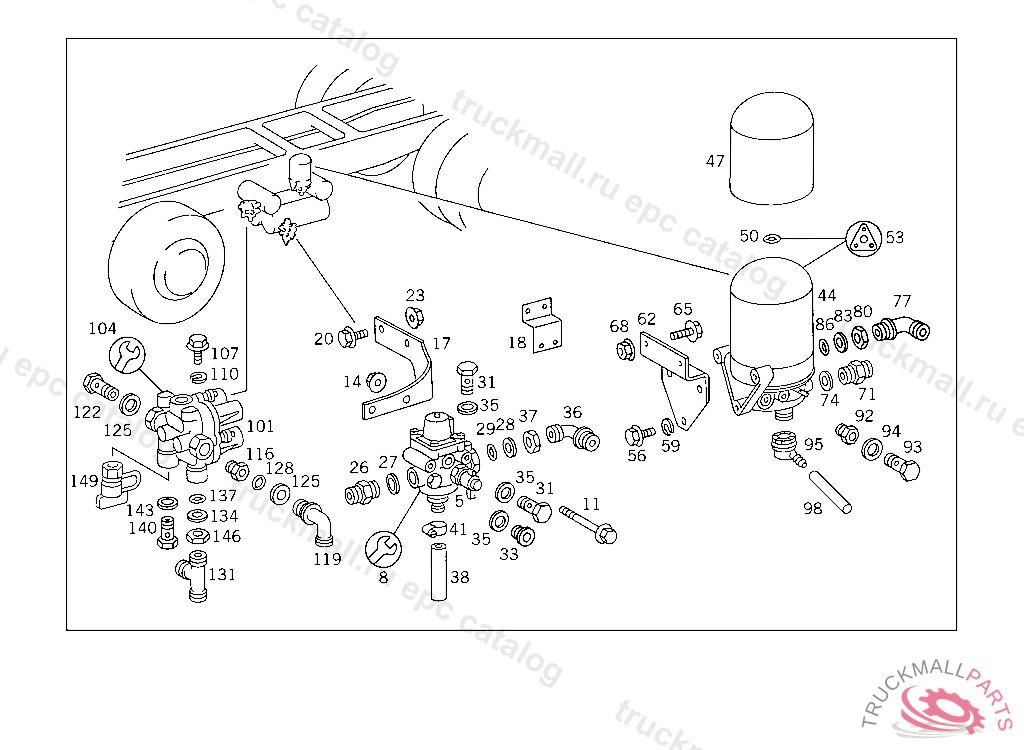

Поз.
Артикул
Описание
5
PRESSURE REGULATORBOSCH,241, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
PRESSURE REGULATORWABCO
8
REPAIR KIT DIAPHRAGM PART BOSCH,209
8
REPAIR KIT SEAL RING BOSCH,209
8
REPAIR KIT PRESSURE REGULATOR WABCO
11
SCREW , Replaced By: N910105008043
11
SCREW REAR AXLE REGULATING SOLENOID VALVE
14
NUT , Replaced By: N913004008001
14
NUT BRACKET TO BRACKET
17
BRACKET PRESSURE REGULATOR
26
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
27
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
31
HOLLOW SCREW HEATING CONNECTION
33
SCREW PLUG , Replaced By: N000908012009
35
SEAL RING LINE CONNECTION
38
HOSE PRESSURE REGULATOR,CONNECTION: "30", ORDER BY THE METER
41
CLAMP , Replaced By: N000000000667
44
AIR DEHYDRATORWABCO,5 937586 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
44
AIR DEHYDRATORKNORR,5 937586, Replaced By: A0024317015
44
AIR DRIERKNORR,5 937586
44
AIR DEHYDRATORBOSCH,5 937586
47
AIR CLEANER COMPLETE TO BOSCH,KNORR
47
AIR CLEANER COMPLETE KNECHT:TO BOSCH,KNORR
50
SEAL RINGWABCO
53
GASKET KITWABCO
53
GASKET KIT SEAL RINGS KNORR,5 937586
53
GASKET KITBOSCH
56
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
59
LOCK WASHER FITTING TO BRACKET
62
BRACKET AIR DEHYDRATOR,5 433280
65
SCREW , Replaced By: N910105010011
65
SCREW BRACKET TO SIDE MEMBER
68
NUT EXHAUST PIPE TO SIDE MEMBER
77
ELBOW FITTING ,5 433281
80
NUT INTERMEDIATE SPEED STOP
83
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
86
O-RING CHECK VALVE TO AIR RESERVOIR
92
SCREW. UNION SCREW , Replaced By: A0009973734
92
SCREW. UNION SCREW LINE CONNECTION
95
CONNECTOR 90 DEG. OFFSET
95
CONNECTOR BLEEDING
98
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
98
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
101
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
101
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) 260 0 WABCO
107
SCREW , Replaced By: N304017008016
107
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
110
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
116
SCREW. UNION SCREW LINE CONNECTION
149
VALVE EMERGENCY RELEASE VALVE,CONNECTION: "23"
149
VALVE EMERGENCY RELEASE VALVE,CONNECTION: "23"
