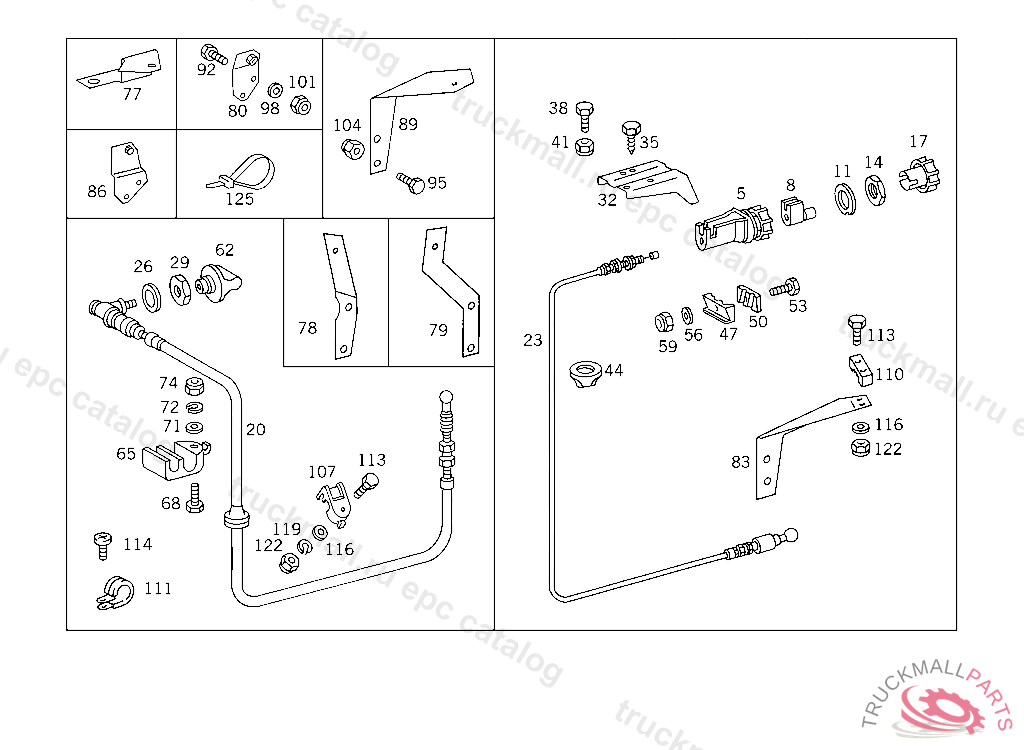

Поз.
Артикул
Описание
20
WIRE CABLE MANUAL CONTROL
26
FITTED WASHER WIRE CABLE TO INSTRUMENT PANEL
29
NUT WIRE CABLE TO INSTRUMENT PANEL
62
KNOB IDLING ADJUSTMENT
65
CLAMPING PIECE IDLING ADJUSTMENT WIRE CABLE
68
SCREW BRACKET TO CROSS MEMBER M 6X35
68
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
71
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
74
NUT AT FILTER BRACKET
74
NUT , Replaced By: N913004006001
79
BRACKET WIRE CABLE TO STEERING OIL TANK BRACKET
89
BRACKET WIRE CABLE TO STEERING OIL TANK BRACKET
95
SCREW , Replaced By: N910105010011
95
SCREW BRACKET TO SIDE MEMBER
104
NUT , Replaced By: N910113010000
104
NUT EXHAUST PIPE TO SIDE MEMBER
107
CLAMPING PIECE IDLING ADJUSTMENT WIRE CABLE
113
SCREW BRACKET TO CROSS MEMBER M 6X35
113
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
116
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
122
NUT AT FILTER BRACKET
122
NUT , Replaced By: N913004006001
125
LOOM TIE LINE MOUNTING 280 MM
125
LOOM TIE LINE MOUNTING
