Поз.
Артикул
Описание

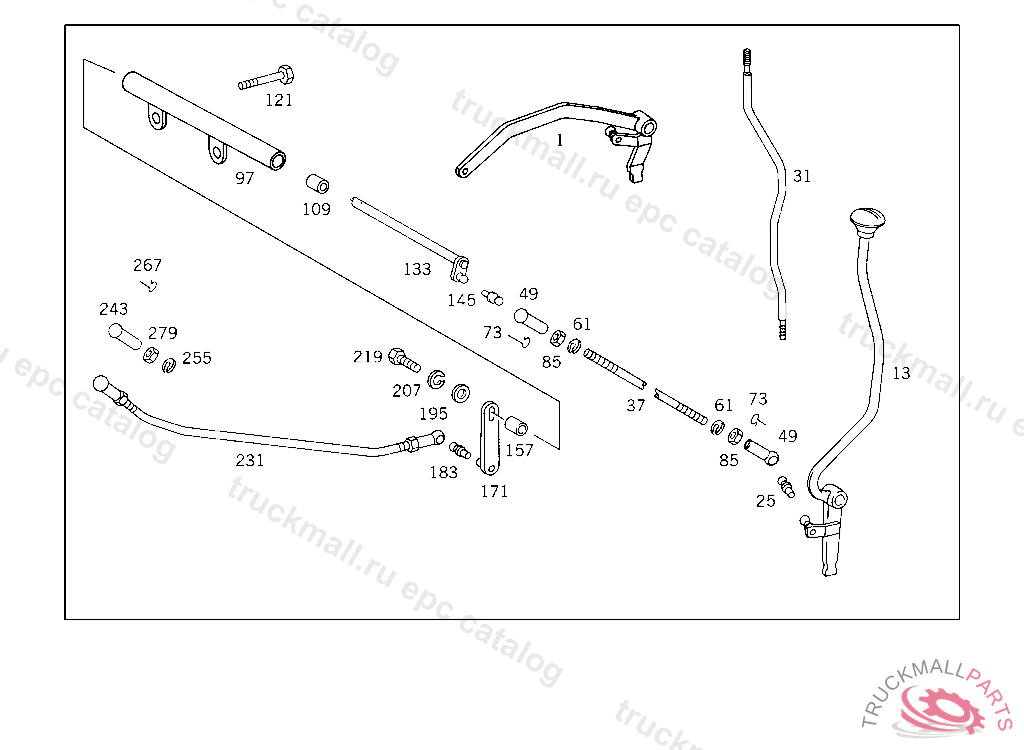

1
LEVER , 10/20 UP TO CHASSIS 879083,50/60 UP TO CHASSIS 880342, Replaced By: A3142603637, +001A3142602533
1
LEVER (CONTROL LEVER),4282708
1
LEVER , 10/20 UP TO CHASSIS 879083,50/60 UP TO CHASSIS 880342, Replaced By: A3142603737, +001A3142602533
1
LEVER (CONTROL LEVER), 10/20 FROM CHASSIS 879084-4282707,50/60 FROM CHASSIS 880343-4282707 AND FROM CHASSIS 8000001
1
LEVER (CONTROL LEVER),4282708
13
SHIFT LEVER
25
BALL PIVOT
31
SHIFTING ROD , 10/20 FROM CHASSIS 879084,50/60 FROM CHASSIS 880343 AND FROM CHASSIS 8000001
37
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
37
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
49
BALL SOCKET ROD TO BALL PIVOT
61
SNAP RING
73
SECURING CLIP. CIRCLIP
85
NUT , Replaced By: N304032008006
85
NUT
97
BEARING (BEARING TUBE), 314 UP TO CHASSIS 614928
97
BEARING SHIFTING SHAFT BEARING
97
BEARING SHIFTING SHAFT BEARING
109
BUSHING
121
SCREW BELL HOUSING TO CYLINDER CRANKCASE M12X100, UP TO IDENT NO. 679695 EXCEPT FOR 500000-599999
121
SCREW BEARING TUBE TO CLUTCH HOUSING, UP TO CHASSIS 679695
121
SCREW BEARING TUBE TO CLUTCH HOUSING, UP TO CHASSIS 679695
121
SCREW BEARING TUBE TO TRANSMISSION CASE TOP COVER M 12X105
133
SHAFT (SHIFTING SHAFT), 314 UP TO CHASSIS 614928
133
SHAFT , 314 FROM CHASSIS 614929,316 FROM CHASSIS 000001 AND FROM CHASSIS 8000001 EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 484801, Replaced By: A3142600338
133
SHAFT (SHIFTING SHAFT),6149298 000001
145
BALL PIVOT
157
HUB SHIFTING SHAFT BEARING TO HOUSING
171
LEVER CONTROL SHAFT
171
LEVER SHIFTING SHAFT
183
BALL PIVOT
183
BALL PIVOT , Replaced By: A3129910120
183
BALL PIVOT LEVER
195
WASHER CONTROL LEVER TO CONTROL SHAFT
207
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
219
SCREW COVER PLATE TO BRACKET
231
PULL ROD , Replaced By: A3142600589
231
PULL ROD CONTROL LEVER, 314 FROM CHASSIS 614929,316 FROM CHASSIS 000001 AND FROM CHASSIS 8000001
231
PULL ROD CONTROL LEVER
231
PULL ROD CONTROL LEVER
243
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
255
SNAP RING SPRING-LOADED PUSH ROD
267
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
279
NUT BALL PIVOT TO LEVER
999
ROD , NO LONGER AVAILABLE
999
ROD , NO LONGER AVAILABLE
999
ROD CONTROL
999
ROD
999
LEVER (CONTROL LEVER), 10/20 FROM CHASSIS 879084-4282707,50/60 FROM CHASSIS 880343-4282707 AND FROM CHASSIS 8000001
999
SHIFT LEVER
999
PULL ROD CONTROL LEVER, NO LONGER AVAILABLE,ORDER INDIVIDUAL PARTS
999
PULL ROD
999
PULL ROD , Replaced By: N900331008262
