Поз.
Артикул
Описание

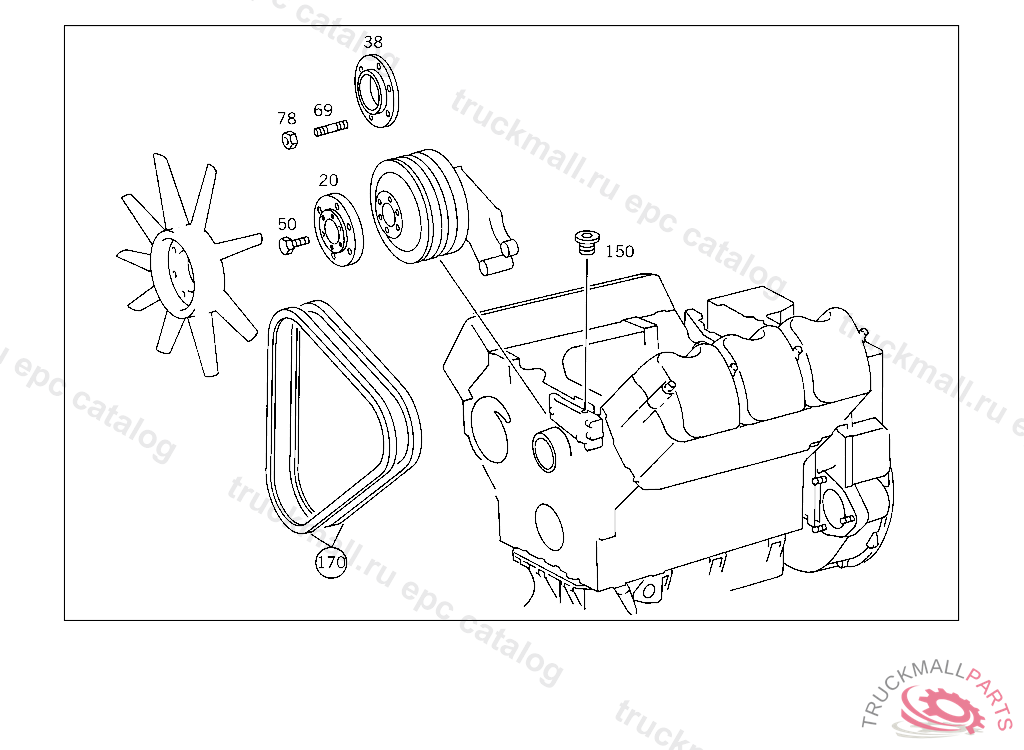

20
PLATE FAN,106664
20
PLATE FAN
20
PLATE FAN
38
SPACER RING PULLEY
38
SPACER RING PULLEY
50
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
50
SCREW , Replaced By: N304017008028
50
HEXAGON HEAD BOLT SHIFT LEVER TO CAB FLOOR M 8X45
50
BOLT. SCREW BRACKET TO PUSH ROD CHAMBER COVER
69
STUD FAN TO INTERMEDIATE PIECE
69
STUD BOLT FAN TO CRANKSHAFT THRUST RING
78
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
150
SCREW PLUG BELL HOUSING
170
V-BELT SET2 PIECES 12.5X1375
999
V-BELT FAN DRIVE
999
SEAL RING SUPPORT TO CYLINDER CRANKCASE
999
CONNECTOR PIPE SOCKET TO THERMOSTAT HOUSING
999
INTERMEDIATE PIECE , Replaced By: A4210350314
999
BRACKET
999
PLATE , Replaced By: A4032050242
999
SPACER TUBE
999
INTERMEDIATE PIECE , Replaced By: A4220350214
999
INTERMEDIATE PIECE , Replaced By: A4040350514
999
INTERMEDIATE PIECE , Replaced By: A4220350214
999
INTERMEDIATE PIECE66 MM
999
HUB , Replaced By: A4032000926
999
PULLEY
999
INTERMEDIATE PIECE , Replaced By: A4030350914
999
INTERMEDIATE PIECE
999
SPACER RING PULLEY
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET M 8X95
999
SCREW , Replaced By: N304017008018
999
STUD
999
STUD
999
STUD BOLT PULLEY TO HUB
999
SCREW CLAMP ON BRACKET
