Поз.
Артикул
Описание

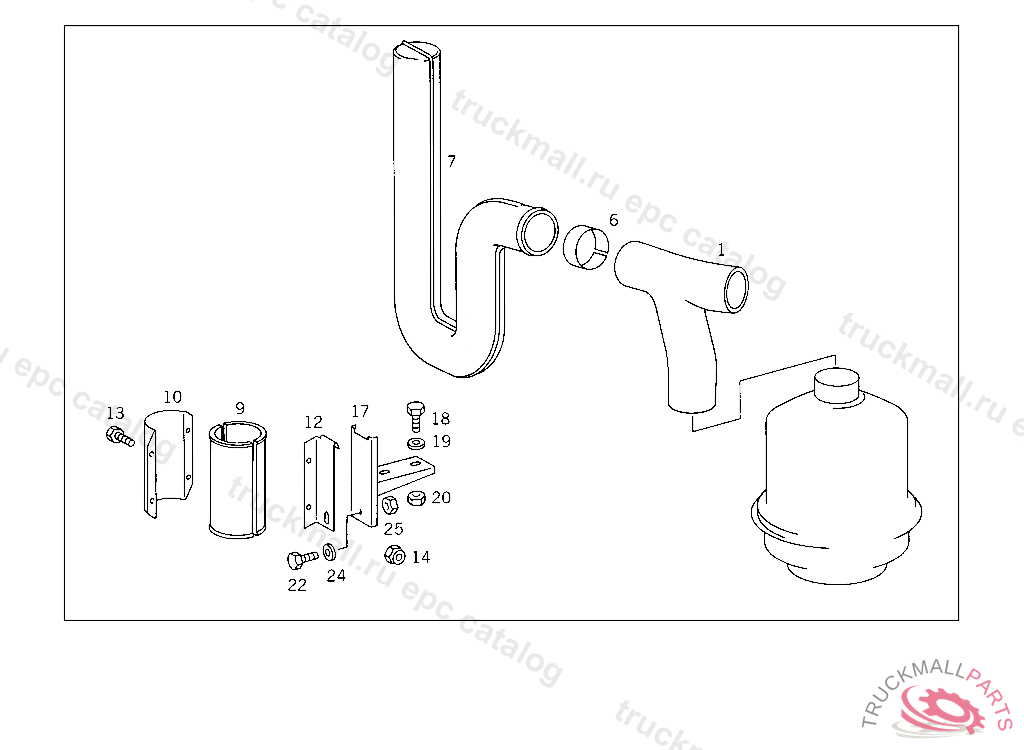

1
AIR INTAKE PIPE
1
AIR INTAKE PIPE
6
SHIM BLIND PIPE MUFFLER
7
AIR INTAKE PIPE BLIND PIPE MUFFLER
7
AIR INTAKE PIPE BLIND PIPE
7
AIR INTAKE PIPE BLIND PIPE
7
MUFFLER , Replaced By: A3095201001
9
SHIM BLIND PIPE MUFFLER
10
BRACKET BLIND PIPE MUFFLER
12
BRACKET BLIND PIPE MUFFLER
13
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
13
SCREW , Replaced By: N304017008016
14
NUT , Replaced By: N913004008001
17
BRACKET BLIND PIPE MUFFLER
18
SCREW COVER PLATE TO COVER PLATE M 6 X 12
18
SCREW , Replaced By: N304017006018
19
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
20
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
20
NUT , Replaced By: N910113006001
22
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
22
SCREW , Replaced By: N304017008016
24
WASHER EXHAUST MUFFLER TO STRAP
24
WASHER , Replaced By: N000125008443
25
NUT , Replaced By: N913004008001
999
LOOM TIE , Replaced By: N916017070000
999
AIR INTAKE PIPE FROM OIL BATH AIT CLEANER TO INTAKE MUFFLER
999
999
AIR INTAKE PIPE FROM OIL BATH AIT CLEANER TO INTAKE MUFFLER
999
CLAMP HOSE 70-90X13 MM
999
CLAMP , Replaced By: N000000000674
