Поз.
Артикул
Описание

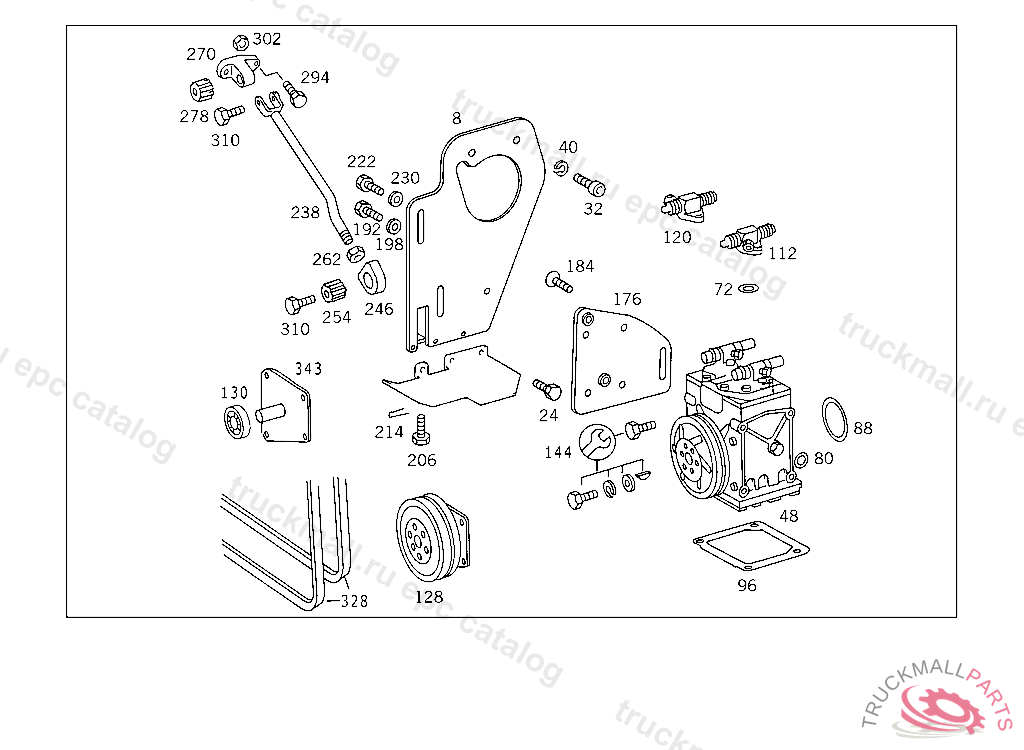

8
BRACKET , Replaced By: A4032300740
8
BRACKET ,617.024-15-229475, Replaced By: A4222300140, +001A4221300035, +001A4222300139, +001A4222300294
8
BRACKET , Replaced By: A4221300235
8
SUPPORT BRACKET TO COMPRESSOR BRACKET, TO BE ADAPTED DURING ASSEMBLY
24
SCREW , Replaced By: N304017008016
24
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
32
SCREW SUPPORT TO CYLINDER CRANKCASE
32
SCREW BRACKET TO FRAME SIDE MEMBER M 14X25,5 724020
40
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
48
COMPRESSOR WITH COUPLING
48
COMPRESSOR
48
COMPRESSOR , WITH COUPLING, Replaced By: A0031314001
48
COMPRESSOR , WITH COUPLING, Replaced By: A0021317101
48
COMPRESSOR , WITH COUPLING, Replaced By: A0031313801
72
SEAL RING
80
SEAL RING
88
SEAL RING
96
GASKET
112
VALVE PRESSURE VALVE
120
VALVE SUCTION VALVE
128
COUPLING6" 24 V
128
COUPLING , Replaced By: A0001325908
128
COUPLING , Replaced By: A0001325808
128
COUPLING6"
130
GROOVED BALL BEARINGTO 000 132 32 08
144
REPAIR KIT (GASKET KIT),VALVE DISC, APPLICALE TO SYMMETRICAL ROTALOCK VALVE,SEE SERVICE INFORMATION 83/24
144
REPAIR KIT COUPLING MOUNTING PARTS
144
REPAIR KIT COMPRESSOR
144
REPAIR KIT CYLINDER COVER
144
REPAIR KIT DRIVE END, WITH REFRIGERANT COMPRESSOR 001 131 17 01 FROM CODE LETTER M
144
REPAIR KIT VALVE DISC
144
GASKET (GASKET KIT),VALVE DISC
176
SUPPORT YORK COMPRESSOR,617.024-15-229475
176
SUPPORT YORK COMPRESSOR
184
SCREW REFRIGERANT COMPRESSOR TO BRACKET
184
SCREW
192
HEX. HEAD SCREW. SCREW STRUT TO SIDE MEMBER
192
SCREW END PIECE TO EXHAUST PIPE M 10X25
198
WASHER STRUT TO CROSS MEMBER
198
WASHER , Replaced By: N007349010007
206
SCREW , Replaced By: N304017010050
206
SCREW , Replaced By: N304017010055
206
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME
214
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
214
COTTER PIN LEVER TO ROD
222
SCREW , Replaced By: N308676012038
222
SCREW BRACKET TO TRANSMISSION
230
WASHER BRACKET TO SIDE MEMBER
238
STIFFENING , Replaced By: A4032300194
238
STIFFENING , Replaced By: A4032300294, +001A4031504170, +001A4031504370, +001A4032300039
238
STIFFENING , 229475
238
STIFFENING , OLD PART NUMBERS TO BE USED UP ON MANUAL TRANSMISSION, Replaced By: A4222300394
238
STIFFENING
246
BEARING BODY , Replaced By: A4222300008
246
BEARING BODY BRACING TO SUPPORT
254
BUSHING
262
NUT JOINT TO BRACKET
262
NUT , Replaced By: N308675014001
270
BEARING BRACKET , Replaced By: A4222300039
270
BEARING BRACKET , Replaced By: A4222300139
270
BEARING BRACKET , Replaced By: A4222300139
270
BEARING BRACKET
278
BUSHING
278
BUSHING
278
BUSHING
294
SCREW , Replaced By: N304017010043
294
SCREW BRACKET TO CONSOLE
294
SCREW BRACKET TO SIDE MEMBER
294
SCREW
302
NUT
310
SCREW BRACKET TO FRAME SIDE MEMBER
328
V-BELT SET2 PIECES 12.5X1450 MM
328
V-BELT12.5X1350
328
V-BELT SET2 PIECES 12.5X1325
328
V-BELT FAN DRIVE,D 180260
328
V-BELT , Replaced By: A0039976292
328
V-BELT SET2 PIECES
328
V-BELT SET OF NARROW V-BELTS2 PIECES 12.5X1325
343
BRACKET TIGHTENER PULLEY
343
ALTERNATOR WITH REGULATOR INCORPORATED,LESS PULLEY BOSCH 28V 110/180A
999
SUPPORT REFRIGERANT COMPRESSOR, NOT USED
999
GASKET
999
V-BELT FROM TIGHTENER PULLEY TO FAN DRIVE 12X1250 MM,D 180260
999
BUSHING
999
BUSHING
999
PULLEY
999
INTERMEDIATE PIECE FAN TO VIBRATION DAMPER
999
GUIDE TUBE
999
PULLEY THREE-GROOVE
999
INTERMEDIATE PIECE PULLEY
999
SUPPORT ALTERNATOR
999
CLAMPING BOLT (CLAMPING BOLT)
999
COVER
999
GASKET
999
INTERMEDIATE PIECE , Replaced By: A4220350314, +006N000933008247
999
PULLEY TWO-GROOVE
999
INTERMEDIATE PIECE , Replaced By: A4030350914
999
INTERMEDIATE PIECE FAN TO VIBRATION DAMPER
999
PROTECTIVE PLATE
999
OIL FILLER NECK
999
OIL FILLER NECK
999
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
