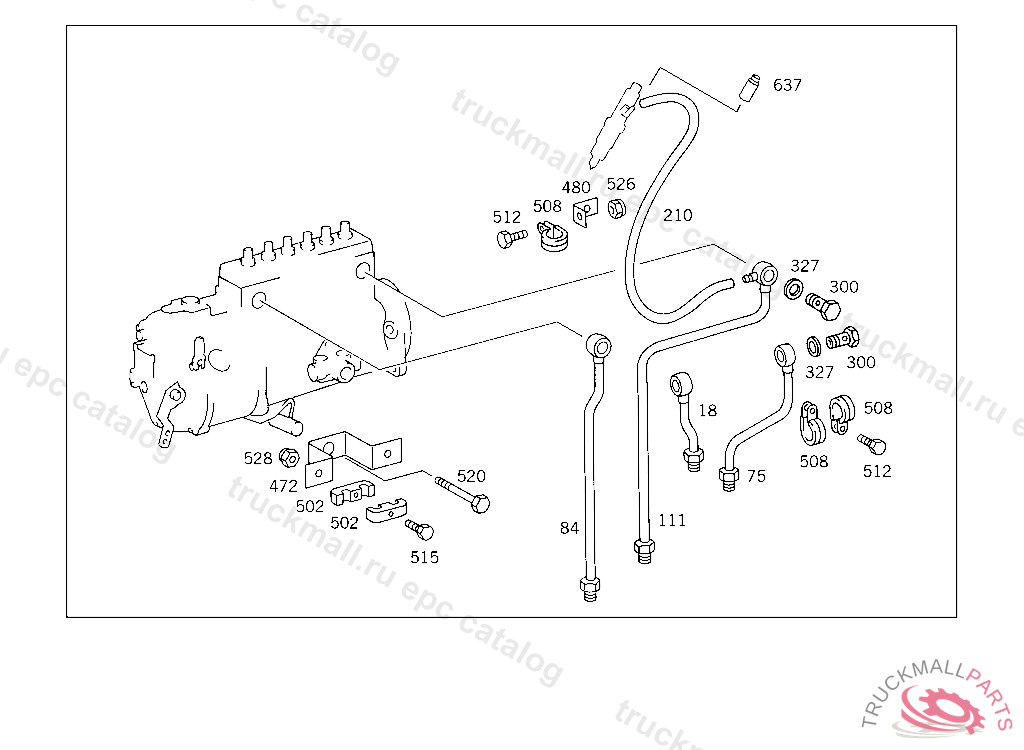

Поз.
Артикул
Описание
18
LINE FROM TANK TO FEED PUMP
75
LINE FROM FEED PUMP TO FILTER
75
LINE FROM FEED PUMP TO FILTER
84
LINE FROM FUEL FILTER TO INJECTION PUMP
111
LINE FROM INJECTION PUMP TO TANK
111
LINE FROM INJECTION PUMP TO TANK
111
LINE FROM INJECTION PUMP OVERFLOW VALVE TO RETURN CONNECTION
210
HOSE LEAK LINE, ORDER BY THE METER
210
HOSE , Replaced By: A0119977782
210
HOSE PLASTIC PIPE,K 223529
300
SCREW DE-AERATION LINE TO TRANSMISSION COOLING WATER LINE
300
HOLLOW SCREW HAND PUMP,K 169122
300
HOLLOW SCREW FUEL LINE TO INJECTION PUMP
300
HOLLOW SCREW FUEL LINE TO PREFILTER
300
HOLLOW SCREW FUEL LINE TO FEED PUMP
300
HOLLOW SCREW FUEL LINE TO FEED PUMP
300
HOLLOW SCREW OIL DELIVERY LINE TO MANUAL PUMP A8
300
HOLLOW SCREW , Replaced By: N915036010109
300
HOLLOW SCREW , Replaced By: N915036010108
327
SEAL RING INJECTION PUMP
327
SEALING RING. SEAL RING ENGINE BREATHING
327
SEAL RING FUEL LINE TO FEED PUMP
327
SEAL RINGTO 000 553 03 05,000 553 18 05,
327
SEAL RING LINE CONNECTION
472
BRACKET RETURN LINE
480
ANGLE LINE MOUNTING
502
PIPE CLAMP HALF FUEL LINE TO FUEL LINE, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
502
PIPE CLAMP HALF FUEL LINES TO INTAKE MANIFOLD
502
PIPE CLAMP HALF FUEL LEAK LINES
502
PIPE CLAMP HALF FUEL LINE TO CHARGING AIR PIPE -MTU-, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN NOT USED
502
PIPE CLAMP HALF FUEL LINE TO FUEL LINE, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
508
CLAMP BATTERY CABLE TO CROSS MEMBER
508
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
508
CLAMP SENSOR CABLE TO FRONT AXLE
508
CLAMP CABLE HARNESS MOUNTING
508
CLAMP ELECTRIC CABLE TO OIL PAN
508
CLAMP HEATER-PLUG/SOLENOID-VALVE BRANCH-OFFS TO NOZZLE HOLDER,K 092646
508
CLAMP FUEL LINES,019450
508
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
508
CLAMP HOSE TO BRACKET 25/20,5 206397
508
CLAMP HYDRAULIC LINE TO SIDE MEMBER,RB012797
508
CLAMP ,K 147121, Replaced By: N000000000319
508
CLAMP , Replaced By: N916016010211
508
CLAMP , Replaced By: N000000001045
508
CLAMP LINE MOUNTING SA 088202/01
512
SCREW , Replaced By: N304017006016
512
HEXAGON HEAD BOLT. SCREW CABLE HARNESS TO BRACKET M8X40
512
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
512
SCREW STOP TO BATTERY CASE
512
SCREW BRACKET TO EXHAUST PIPE BRACKET
512
SCREW BRACKET TO SIDE MEMBER M8X20
512
SCREW CABLE HARNESS MOUNTING
512
SCREW BRACKET TO FRAME
512
SCREW PUMP TO BRACKET
512
SCREW CLAMP ON BRACKET
512
HEXALOBULAR BOLT. SCREW SUPPORT TO CYLINDER HEAD
512
NUT ENGINE MOUNTING M8
512
SCREW FUEL LINE TO INTAKE MANIFOLD M 8X98
512
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
515
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
515
HEXAGON HEAD BOLT BRACKET TO NO.1 CROSS MEMBER M8X35
515
HEXAGON HEAD BOLT. SCREW OIL SEPARATOR TO TRANSMISSION CASE
515
HEXALOBULAR BOLT. SCREW SUPPORT TO CYLINDER HEAD
515
HEXAGON HEAD BOLT
515
SCREW BRACKET TO EXHAUST PIPE BRACKET
515
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
515
SCREW STOP TO BATTERY CASE
515
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
515
HEXAGON HEAD BOLT. SCREW CABLE HARNESS TO BRACKET M8X40
515
SCREW STRAP TO EXHAUST MUFFLER
520
STUD BOLT FAN HUB TO INTERMEDIATE PIECE
520
SCREW , Replaced By: N308676012038
520
SCREW
520
SCREW BRACKET TO TRANSMISSION
520
STUD BOLT SECONDARY PUMP TO TRANSMISSION CASE
526
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
526
NUT SPRING-LOADED PUSH ROD
526
NUT
528
NUT
528
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
637
HOSE LEAK LINE, ORDER BY THE METER
637
SCREENING NOZZLE HOLDER, TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0119977782, +001A4030780074
637
SCREENING LEAK CONNECTION SEALING AT NOZZLE HOLDER, 314 494961 352 851898 364 022454 366 063371, Replaced By: A0119977782, +002A4030780074
999
FILTER ELEMENT WITH SEAL RING
999
FUEL PUMP (MANUAL FEED PUMP)
999
VALVE FUEL FILTER
999
SEAL PRE-CLEANER,014125
999
BANJO UNION FUEL LINES AND BREATHING
999
SCREW CHARGING AIR ELBOW TO TURBOCHARGER
999
CLAMPING PIECE FUEL FILTER TO BRACKET,012710
999
FILTER PREFILTER
999
LOOM TIE LINE MOUNTING 280 MM
999
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
999
HOSE13X200
999
FITTING FUEL LINE TO HAND PUMP
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
999
LINE (FUEL LEAK LINE),FRONT PART, 401-403 263871 421-423 114639
999
SCREENING NOZZLE HOLDER
999
SCREENING NOZZLE HOLDER, TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0119977782, +001A4030780074
999
HOSE (COLLECTING CONNECTOR),019450
999
FITTING FROM INTAKE MANIFOLD TO VACUUM LINE, FROM IDENT NO.002799-360785
999
LINE (FUEL LEAK LINE),REAR PART, 401-403 263871 421-423 114639
999
FITTING FROM FUEL FILTER TO INJECTION PUMP, RETURN
999
HOSE LEAK, FROM LEFT REAR NOZZLE TO COLLECTING HOSE CONNECTION 430 MM, ORDER BY THE METER
999
LINE RETURN LINE FROM ENGINE, NOT USED
999
BRACKET AT BRACKET
999
BRACKET BRACKET TO CONTROL SHAFT BEARING TUBE, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
BRACKET FUEL LINE TO CHARGING AIR PIPE -MTU-, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN NOT USED
999
LINE PREFILTER TO MANUAL FEED PUMP
999
LINE FROM INJECTION PUMP OVERFLOW VALVE TO RETURN CONNECTION
999
INTERMEDIATE PIECE FUEL LINE TO FUEL FEED PUMP -MTU-, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN NOT USED
999
LINE FUEL LINE TO FUEL FEED PUMP, NOT USED
999
LINE FEED PUMP 1 ON FEED PUMP 2, NOT USED
999
LINE AT INJECTION PUMP, NOT USED TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
BRACKET FUEL LINE TO TIMING CASE,021787 TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
LINE FROM INJECTION PUMP TO TANK
999
LINE FUEL FEED,AT PREFILTER, NOT USED
999
LINE FROM FEED PUMP TO FILTER, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
LINE FUEL FEED -MTU-, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN NOT USED
999
LINE FROM SUPPORT TO FEED PUMP -MTU-, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN NOT USED
999
LINE FUEL LINE TO MANUAL FEED PUMP -MTU-, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN NOT USED
999
LINE FROM MANUAL PUMP TO FEED PUMP -MTU-, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN NOT USED
999
LINE FROM FEED PUMP TO FILTER -MTU-, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN NOT USED
999
LINE FROM FUEL FILTER TO INJECTION PUMP -MTU-, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN NOT USED
999
LINE FROM INJECTION PUMP TO VALVE -MTU-, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN NOT USED
999
LINE FUEL RETURN -MTU-, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN NOT USED
999
BRACKET FUEL LINE TO CHARGING AIR PIPE -MTU-, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN NOT USED
999
CONNECTOR FUEL LINES,021787 TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
BANJO UNION FUEL RETURN
999
PIPE CLAMP HALF FUEL LINES,021787 TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
CLAMP FUEL LINES,021787 TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
SHACKLE FUEL LINE TO BRACKET -MTU-, NOT USED
999
GASKET-MTU-, NOT USED
999
BANJO UNION FEED
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER EXHAUST MUFFLER TO STRAP
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SPRING WASHER STEERING COLUMN BRACKET TO CAB
999
SCREW PLUG , Replaced By: N000908014009
999
SCREW PLUGTO 000 553 03 05,000 553 18 05,
999
SCREW , Replaced By: N304017008018
999
SCREW , Replaced By: N304014008018
999
SCREW , Replaced By: N304017008043
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
NUT STRAP TO SUPPORT,5 149419
999
SCREW FUEL FILTER TO SUPPORT M 12X1,5X50, NOT USED
999
WASHER REAR FOGLAMP TO BRACKET
999
SCREW PLUG , Replaced By: N007604014110
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
SCREW 3/2-WAY VALVE TO BRACKET
999
SCREW , WITH DIESEL ENGINE
999
HEXAGON HEAD BOLT. SCREW STARTER SWITCH TO STEERING COLUMN JACKET TUBE
999
SCREW SUPPORT TO FENDER
999
SCREW PILLAR TO BRACKET AND TO FRONT PANEL
999
SCREW VALVE TO BRACKET M 8X55
999
SCREW BRACKET TO CONSOLE
999
PIPE ELBOW OIL LINES ON LONG-LIFE OIL FILTER
999
PIPE ELBOW FUEL LINE TO PREFILTER, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
PIPE CLAMP HALF WIRING HARNESS FIXTURE AT AIR COMPRESSOR COOLANT LINE, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
GROMMET WIRING HARNESS FIXTURE AT AIR COMPRESSOR COOLANT LINE, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
HOSE LINE INJECTION PUMP, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN NOT USED
999
WASHER FUEL LINE TO CHARGING AIR PIPE -MTU-, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN NOT USED
999
SCREW , Replaced By: N914146006102
999
HEXAGON HEAD BOLT. SCREW CABLE HARNESS TO BRACKET M8X40
999
NUT , Replaced By: N913023006001
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
LOCK WASHER FITTING TO BRACKET
999
COMBINATION BOLT BRACKET WITH INTAKE MANIFOLD TO CYLINDER HEAD,021787
999
COMBINATION BOLT , Replaced By: A0079902201
999
SCREW CLAMP MOUNTING M 6X16
999
LOCKING CONE
999
NUT. UNION NUT RETURN
999
FITTING CONNECTION TO HEATER UNIT
999
FITTING LINE CONNECTION
999
FITTING
999
HOLLOW SCREW FITTING LINE CONNECTION
999
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
999
BANJO UNION , Replaced By: N000000000363
999
CLAMP , Replaced By: N916016010211
