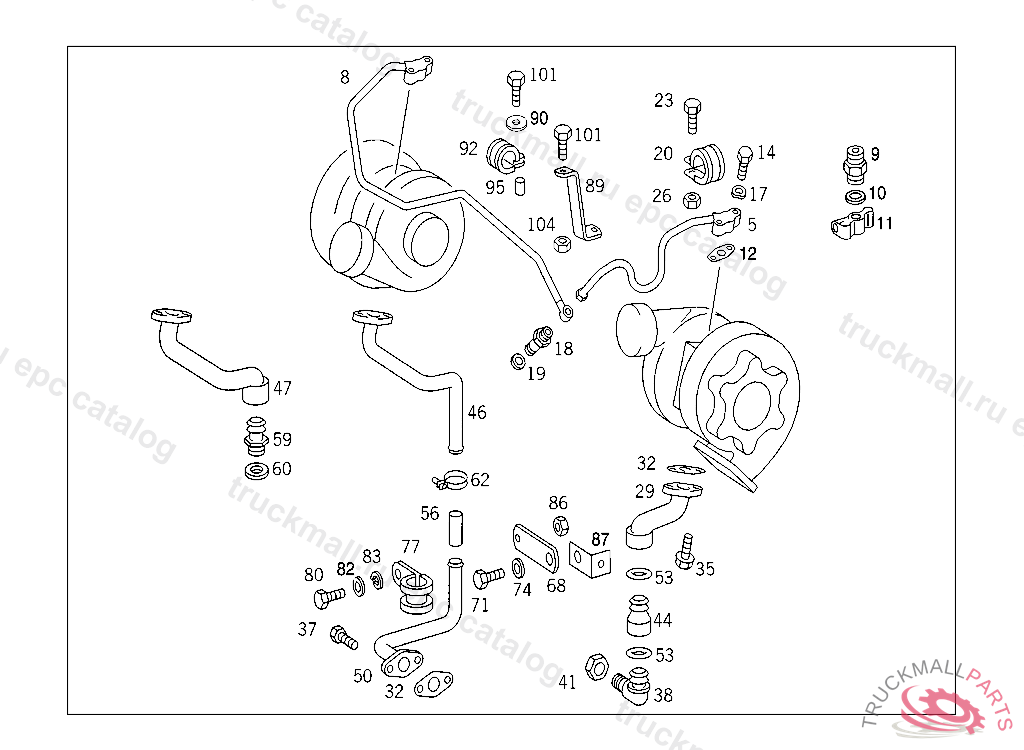

Поз.
Артикул
Описание
5
OIL LINE FEED,LEFT
5
OIL LINE FEED,LEFT
8
OIL LINE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4421802420
8
OIL LINE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A4421802020, +001A4420983039, +001N304017008023, +001N304032008005, +001N916016010203
8
OIL LINE , Replaced By: A4421802220
8
OIL LINE FEED,RIGHT
9
FITTING WATER SEPARATOR
10
SEALING RING. SEAL RING ENGINE BREATHING
11
FLANGE OIL DELIVERY LINE TO TURBOCHARGER,928391
12
GASKET FLANGE TO TURBOCHARGER
14
SCREW FITTING TO TRANSMISSION M8X32
14
SCREW STEERING SHAFT BEARING TO CAB M 8X30,5 191030
17
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
17
SPRING WASHER , Replaced By: N000137008212
18
HOLLOW SCREW FITTING LINE CONNECTION
19
SEAL RINGTO 000 553 03 05,000 553 18 05,
23
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
23
SCREW , Replaced By: N304017008028
29
PIPE ELBOW , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 019695, Replaced By: A4241870624
32
GASKET OIL RETURN LINE TO TURBOCHARGER
35
SCREW PIPE BEND TO BRACKET
38
PIPE ELBOW OIL RETURN TO TIMING CASE,LEFT
41
NUT 3/2-WAY VALVE TO CAB,4 685151
44
OIL LINE EXHAUST GAS TURBOCHARGER OIL RETURN, RIGHT
44
OIL LINE EXHAUST GAS TURBOCHARGER OIL RETURN, RIGHT
47
PIPE ELBOW EXHAUST GAS TURBOCHARGER OIL RETURN, RIGHT
53
SEAL RING TURBOCHARGER OIL RETURN
59
FITTING OIL RETURN TO TIMING CASE,RIGHT
60
SEAL RING FROM PIPE ELBOW TO AIR COMPRESSOR
87
BRACKET COMPRESSED AIR LINE MOUNTING SA 48042
87
ANGLE LINE MOUNTING
87
BRACKET OIL DELIVERY LINE TO TIMING CASE COVER
92
CLAMP HEATER-PLUG/SOLENOID-VALVE BRANCH-OFFS TO NOZZLE HOLDER,K 092646
92
CLAMP CABLE HARNESS MOUNTING
95
BUSHING APPARATUS PLATE 9 MM, TO BE ADAPTED DURING ASSEMBLY
95
SPACER RING BRACKET TO TIMING CASE COVER
95
SPACER TUBE , Replaced By: A4602910350
101
SCREW EXHAUST PIPE TO MUFFLER AND TO HEATER UNIT M 8X55
101
SCREW COVER PLATE TO COVER PLATE M 6 X 12
101
SCREW LEVER TO ENGINE CONTROL SHAFT
101
SCREW CABLE HARNESS MOUNTING
101
SCREW OIL DELIVERY LINE TO TIMING CASE COVER M 8X60,934541
104
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
104
NUT SPRING-LOADED PUSH ROD
104
NUT , Replaced By: N913023006001
104
NUT
999
CLAMP , Replaced By: N000000001045
999
SCREW HOSE TO BRACKET
999
BRACKET , Replaced By: A4420982239
999
BRACKET OIL DELIVERY LINE TO TIMING CASE COVER
999
BRACKET COMPRESSED AIR LINES
