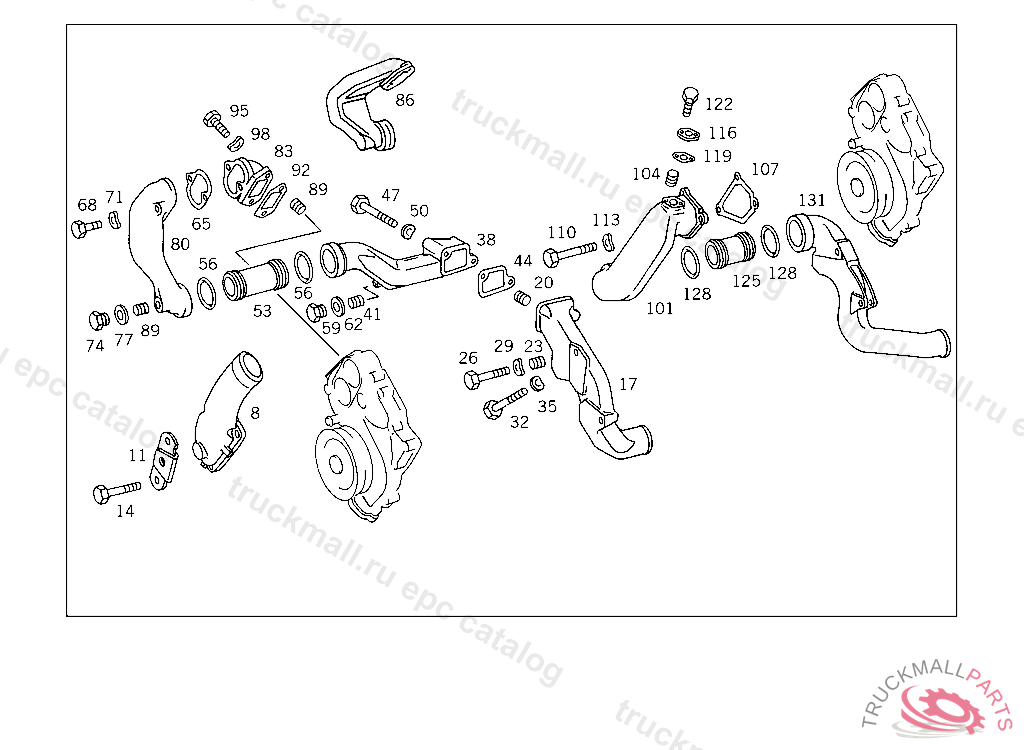

Поз.
Артикул
Описание
8
OUTLET THERMOSTAT HOUSING
11
BRACKET BOTTOM
11
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4422001240
14
SCREW , Replaced By: N910105008007
14
SCREWM 8X20
17
LINE RETARDER COOLING WATER RETURN
20
THREADED INSERT
23
THREADED INSERT ,5 462573
26
HEXAGON HEAD BOLT. SCREW COOLING WATER LINE TO CYLINDER CRANKCASE
29
SPRING WASHER CAB FLOOR
32
SCREW COOLING WATER LINE TO ENGINE SUPPORT
32
HEXAGON HEAD BOLT INTAKE PIPE SOCKET TO WATER PUMP M10X160
35
SPRING WASHER STEERING COLUMN BRACKET TO CAB
38
LINE RETARDER COOLING WATER RETURN
38
LINE RETARDER COOLING WATER RETURN
38
LINE , Replaced By: A4412000752
41
THREADED INSERT REPAIR PURPOSES M 14X1.5X10.5
41
THREADED INSERT
44
GASKET COOLING WATER LINE
47
SCREWTO 001 477 20 01,001 477 21 01
47
SCREW
50
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
50
SPRING WASHER , Replaced By: N000137008212
53
CONNECTOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 682854, Replaced By: A4422030636
53
CONNECTOR COOLING WATER LINES
56
SEAL RING COOLING WATER LINES
56
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4429975545
59
SCREW PLUG , Replaced By: N007604014110
59
SCREW PLUG FUEL TANK
62
SEAL RING INJECTION PUMP
65
GASKET COOLING WATER LINE TO PIPE ELBOW,761788
68
SCREW 3/2-WAY VALVE TO BRACKET
68
SCREW , Replaced By: N304014008009
71
SPRING WASHER , Replaced By: N000137008212
71
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
74
SCREW PLUG FUEL TANK
74
SCREW PLUG , Replaced By: N007604014110
77
SEAL RING INJECTION PUMP
80
LINE , Replaced By: A4422000353
83
PIPE ELBOW , Replaced By: A4422030124
83
ELBOW , Replaced By: A4422000353
86
LINE RETARDER COOLING WATER RETURN
89
THREADED INSERT
89
THREADED INSERT REPAIR PURPOSES M 14X1.5X10.5
92
GASKET
92
GASKET ELBOW TO WATER PUMP
95
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
95
SCREW , Replaced By: N304017008027
98
SPRING WASHER , Replaced By: N000137008212
98
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
101
LINE RETARDER COOLING WATER FEED
104
THREADED INSERT
104
THREADED INSERT
107
GASKET FLANGE TO PUMP
110
HEXAGON HEAD BOLT. SCREW 3/2-WAY SOLENOID VALVE TO BRACKET M 8X150
110
SCREW CONTROL VALVE
110
HEXAGON HEAD BOLT. SCREW COOLING WATER LINE TO WATER PUMP M 8X160
113
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
113
SPRING WASHER , Replaced By: N000137008212
116
FLANGE (BLIND FLANGE)
119
GASKET HEATING PIPE TO ENGINE
122
SCREW STOP TO BATTERY CASE
125
CONNECTOR COOLING WATER LINES
125
CONNECTOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 682854, Replaced By: A4422030436
128
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4429975545
128
SEAL RING COOLING WATER LINES
131
LINE RETARDER COOLING WATER FEED
999
OUTLET , Replaced By: A4412010131
999
LINE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 642425, Replaced By: A4422008052
999
SPRING WASHER , Replaced By: N000137008212
999
SCREW , Replaced By: N304017008053
