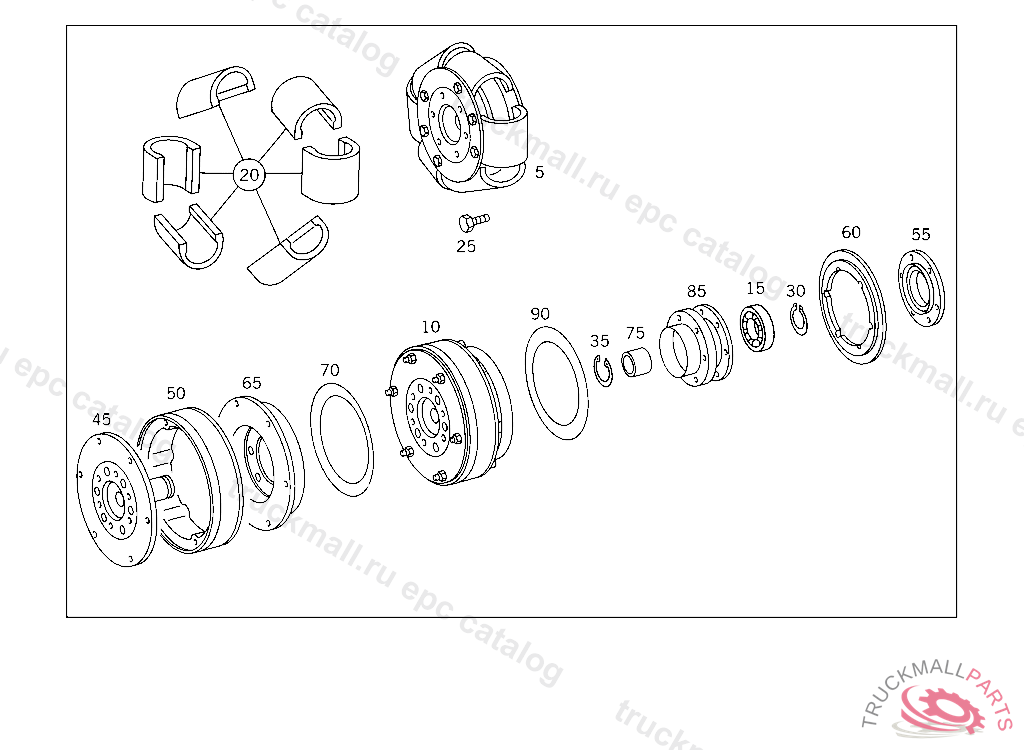

Поз.
Артикул
Описание
5
CLUTCH , Replaced By: A4032505401
5
CLUTCH , Replaced By: A4442500001
10
CLUTCH , Replaced By: A4442500001
10
CLUTCH
15
BALL BEARING. GROOVED BALL BEARINGTO 444 250 00 01
15
GROOVED BALL BEARINGTO 403 250 53 01
15
BALL BEARING , Replaced By: N000625306206
20
RUBBER RING SET6 PIECES TO 403 250 50 01,403 250 54 01
25
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
25
SCREW , Replaced By: N304017008024
25
SCREW , Replaced By: N304017008033
25
SCREW BRACKET TO EXHAUST PIPE BRACKET
25
SCREWM 10X20,TO 444 250 00 01
30
LOCK RING SHACKLE TO CONSOLE TO 393 326 00 63,965965
35
TOOTHED WASHER. SNAP RINGTO 444 250 00 01
45
CLUTCH HUBTO 403 250 53 01
50
SHELLTO 403 250 53 01
55
CENTERING RINGTO 403 250 53 01
60
CENTERING RING , Replaced By: A0002500007
65
RUBBER RINGTO 403 250 53 01
70
DISC SPRINGTO 403 250 53 01
75
SPACER RINGTO 403 250 53 01
85
HUB PARTS KIT TO 403 250 53 01
85
CLUTCH HUB , Replaced By: A0002500007
90
FRICTION DISCTO 403 250 53 01
