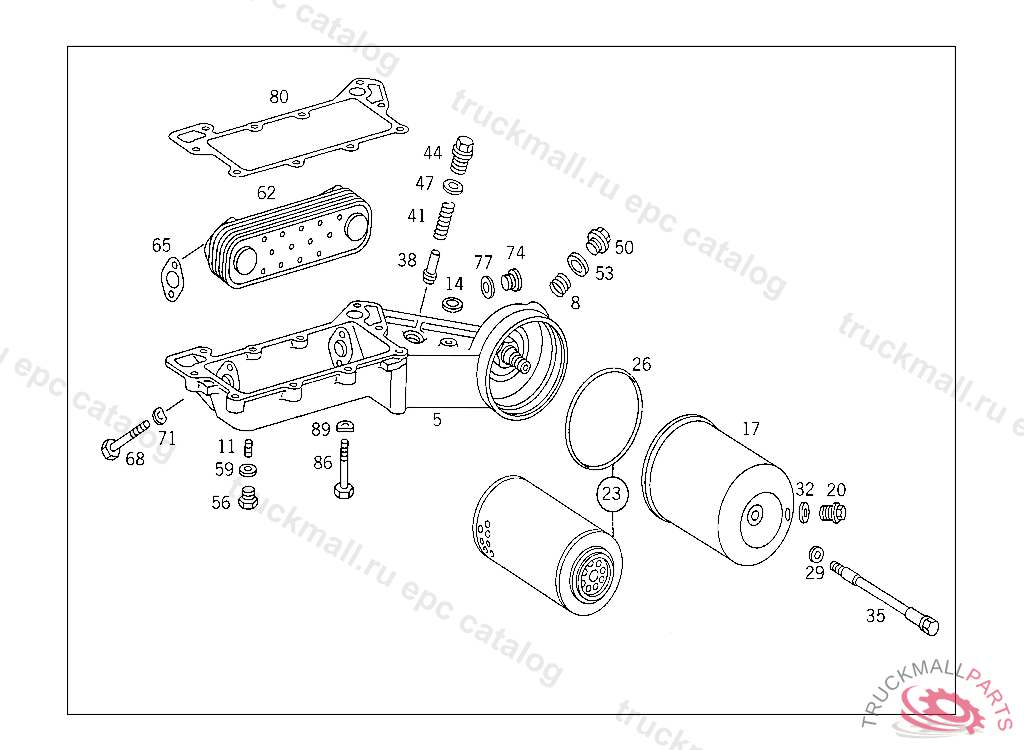

Поз.
Артикул
Описание
5
COVER OIL FILTER
8
THREADED INSERT REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY
14
WASHER OIL COOLER COVER
17
FILTER BOWL OIL FILTER BOWL
20
SCREW PLUG SHIFTING SHAFT DETENT
23
FILTER ELEMENT RANGE OF DELIVERY
26
SEAL RING FILTER BOWL TO FILTER HEAD
29
SEAL RING FROM FUEL TANK TO FUEL TANK
32
SEAL RING VALVE TO VALVE,K 025179
35
SCREW
38
VALVE
41
SPRING BY-PASS VALVE
44
SCREW PLUG
47
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
50
SCREW PLUG
53
SEAL RING
56
SCREW PLUG , Replaced By: A1119970330
56
SCREW PLUG, FILLING OIL DRAIN
59
SEALING RING. SEAL RING ENGINE BREATHING
62
OIL COOLER ,121800907 845891
62
OIL COOLER ,907 845891
62
OIL COOLER
65
SEAL. GASKET , Replaced By: A3661880880
68
HEXAGON HEAD BOLT. SCREW CABLE HARNESS TO BRACKET M8X40
68
HEXALOBULAR BOLT. SCREW SUPPORT TO CYLINDER HEAD
68
SCREW EXHAUST PIPE TO MUFFLER AND TO HEATER UNIT M 8X55
71
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
71
SPRING WASHER , Replaced By: N000137008212
74
SCREW PLUG
77
SEAL RING OIL DRAIN 30X36 MM
80
GASKET OIL FILTER HEAD & OIL COOLER COVER WITH OIL COOLER TO CRANKCASE
86
SCREW REAR EXHAUST PIPE TO MUFFLER
86
SCREW BRACKET TO TRANSMISSION,4 411810
89
SPRING WASHER STEERING COLUMN BRACKET TO CAB
