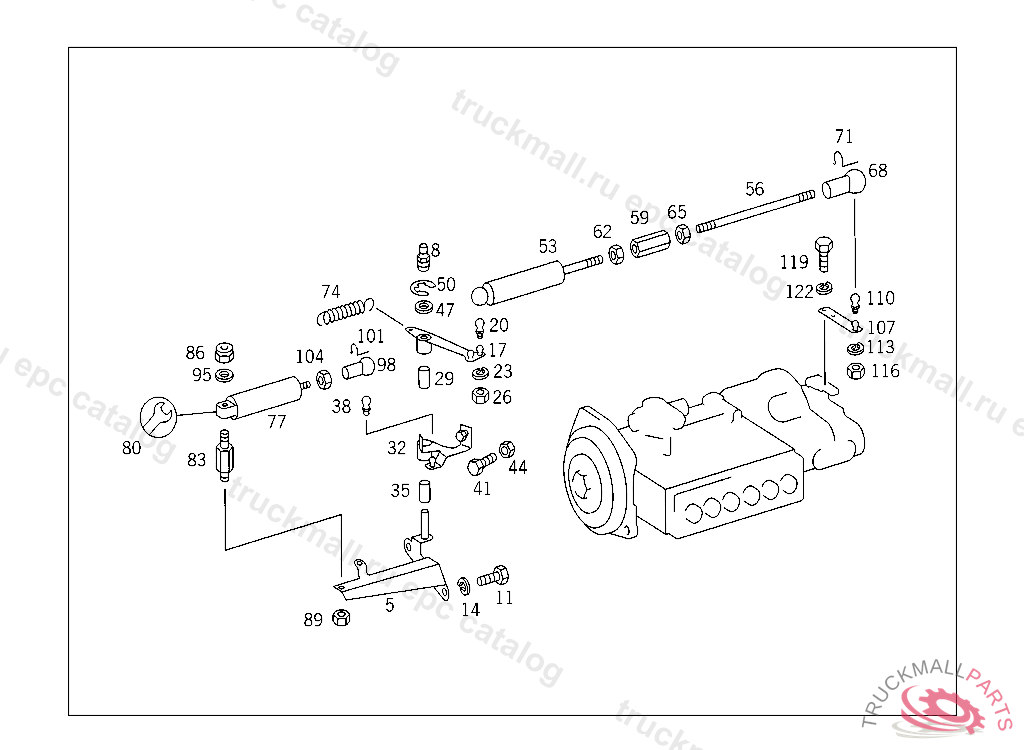

Поз.
Артикул
Описание
5
BRACKET
8
GREASE NIPPLE. LUBRICATING NIPPLE LOCK ANGLE SENSOR
11
SCREW BRACKET TO CONSOLE
14
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
17
LEVER CONTROL
20
BALL PIVOT ROD TO INJECTION PUMP LEVER
23
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
26
NUT SPRING-LOADED PUSH ROD
29
BUSHING
32
LEVER
35
BUSHING
38
BALL PIVOT
41
SCREW , Replaced By: N304017006037
41
SCREW REAR FENDER
44
NUT BATTERY MOUNTING
44
NUT CYLINDER TO BRACKET TO0002902112
47
WASHER , Replaced By: N000433013010
47
WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
50
LOCK PLATE
53
ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING
53
ROD , Replaced By: A6583001715
56
PULL ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER 400 MM, TO BE ADAPTED DURING ASSEMBLY
59
TURNBUCKLE TURNBUCKLE
62
NUT L.H. THREAD
65
NUT SPRING-LOADED PUSH ROD
68
BALL SOCKET ,266368
71
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
74
SPRING , 309.300-326 UNTIL PRODUCTION STOP 309.370-391 UP TO CHASSIS 014221,309.400-426 UP TO CHASSIS 095115,310.300-326,400-426 UP TO CHASSIS 019232 FROM CHASSIS SEE STANDARDVERSION
77
WORKING CYLINDER (POWER CYLINDER),EXHAUST BRAKE
77
CYLINDER (POWER CYLINDER),EXHAUST BRAKE, Replaced By: A0004307926
83
PIN OPERATING CYLINDER TO BRACKET
86
NUT POWER CYLINDER TO BRACKET
86
NUT POWER CYLINDER TO BRACKET
89
NUT
95
WASHER INTERMEDIATE SPEED STOP
98
BALL SOCKET
101
SECURING CLIP. CIRCLIP
104
NUT SUPPORT TO SIDE MEMBER
107
LEVER AT INJECTION PUMP
110
BALL PIVOT ROD TO INJECTION PUMP LEVER
113
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
116
NUT SPRING-LOADED PUSH ROD
119
SCREW , Replaced By: N304017006016
119
SCREW PUMP TO BRACKET
122
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SPRING WASHER , Replaced By: N000137008212
