Mercedes Q0000282V000000000 -

SMART & PULSE 450.352

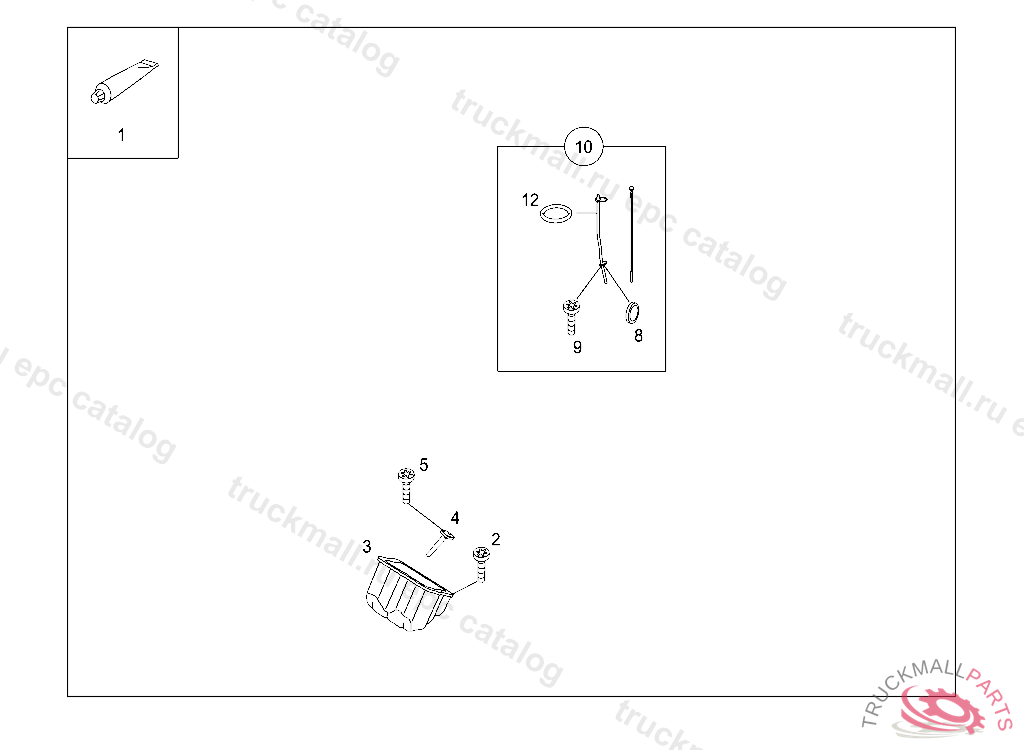

01 ENGINE HOUSING - 050 OIL PAN

Поз.
Артикул
Описание
1
Q0000282V000000000
SEALING COMPOUND
2
N000000001115
HEXALOBULAR BOLTM6X19
3
A1600140002
OIL PAN
4
A1601800051
INTAKE MANIFOLD
5
N000000001117
HEXALOBULAR BOLT. SCREW STAY TO CYLINDER HEAD M 6X23
8
Q0002470V000000000
O-RING
9
Q0007199V000000000
SCREW DUOTAPTITE M6 X 53M6 X 19 S - 10.9
9
N000000001116
HEXALOBULAR BOLT. SCREW WIRING HARNESS ON OIL FILTER HOUSING
10
Q0001428V003000000
GUIDE TUBE DIPSTICK
10
Q0003060V005000000
GUIDE TUBE DIPSTICK OIL DIPSTICK
10
Q0012847V001000000
GUIDE TUBE DIPSTICK
10
Q0012847V002000000
GUIDE TUBE DIPSTICK
10
A1600100266
GUIDE TUBE
10
Q0003060V004000000
GUIDE TUBE DIPSTICK OIL DIPSTICK, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. H 99999720021230, Replaced By: Q0003060V005000000
12
Q0004537V001000000
RUBBER GROMMET
