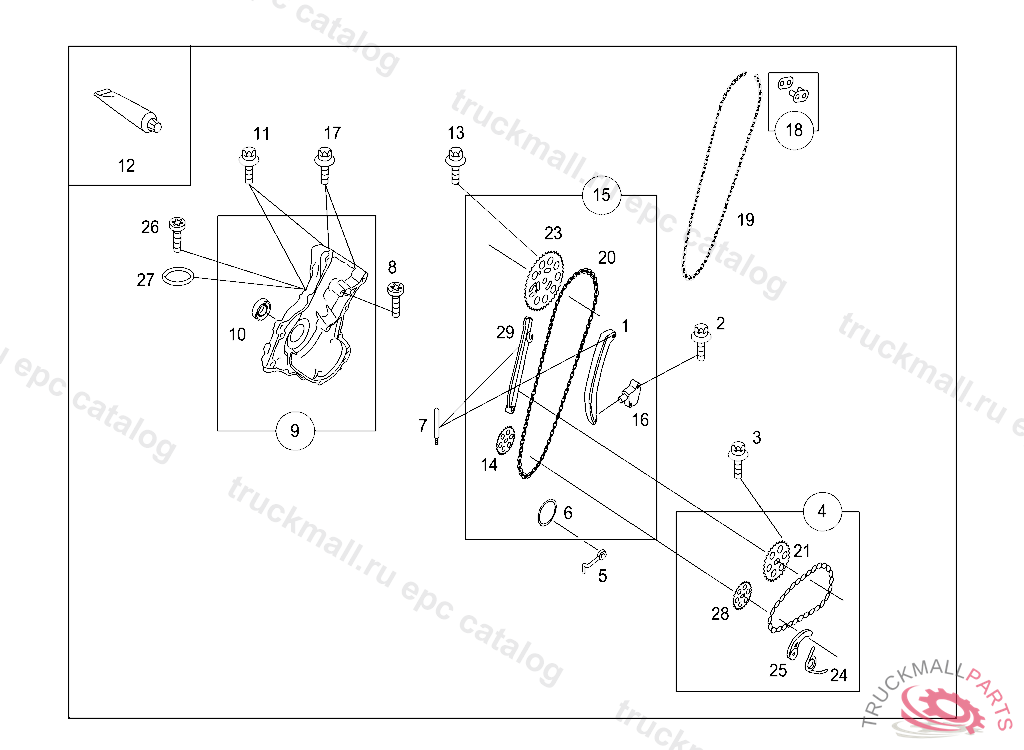

Поз.
Артикул
Описание
1
SLIDE RAIL
1
SLIDE RAIL
2
HEXALOBULAR BOLT SHIELD AND PRESSURE SENSOR AND SPACER SLEEVE TO REAR BRACKET M6X33
3
HEXALOBULAR BOLT AIR CLEANER TO BRACKET
4
CHAIN PULL
4
OIL PUMP
5
OIL NOZZLE
6
SEALING RING A 8 - 11.5 C , 19970613, Replaced By: N007603008109
7
PIN SLIDING RAIL TO CYLINDER HEAD,942/946/947 037074
8
HEXALOBULAR BOLT SHIELD AND PRESSURE SENSOR AND SPACER SLEEVE TO REAR BRACKET M6X33
9
TIMING CASE
9
COVER
10
SHAFT SEAL
12
SEALING COMPOUND
13
HEXALOBULAR BOLT. SCREW POSITION SENDER UNIT TO CYLINDER CRANKCASE M 6X16
13
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
14
CRANKSHAFT GEAR
15
TIMING DRIVE
15
CHAIN PULL
16
CHAIN TIGHTENER
16
CHAIN TIGHTENER
17
COLLAR SCREWTORX M8 X 45S - 8.8
17
SCREW DUOTAPTITE M6 X 53M6 X 48 S - 10.9
18
RIVETED CHAIN LINK
19
REPAIR CHAIN
20
ROLLER CHAIN
21
DRIVE GEAR
23
CAMSHAFT SPROCKET
24
SPRING
25
CLAMPING BAR OIL PUMP DIE , Replaced By: A6601810059
25
CLAMPING BRACKET
26
SCREW PLUG M18 X 1.5 CRANKCASE M10 X 1
27
SEAL RINGTO 001 431 72 14
28
CRANKSHAFT GEAR
29
SLIDE RAIL
29
SLIDE RAIL
