Mercedes Q0000943V012CP6A00 - FLANKENTEIL RE

SMART & PULSE 450.352

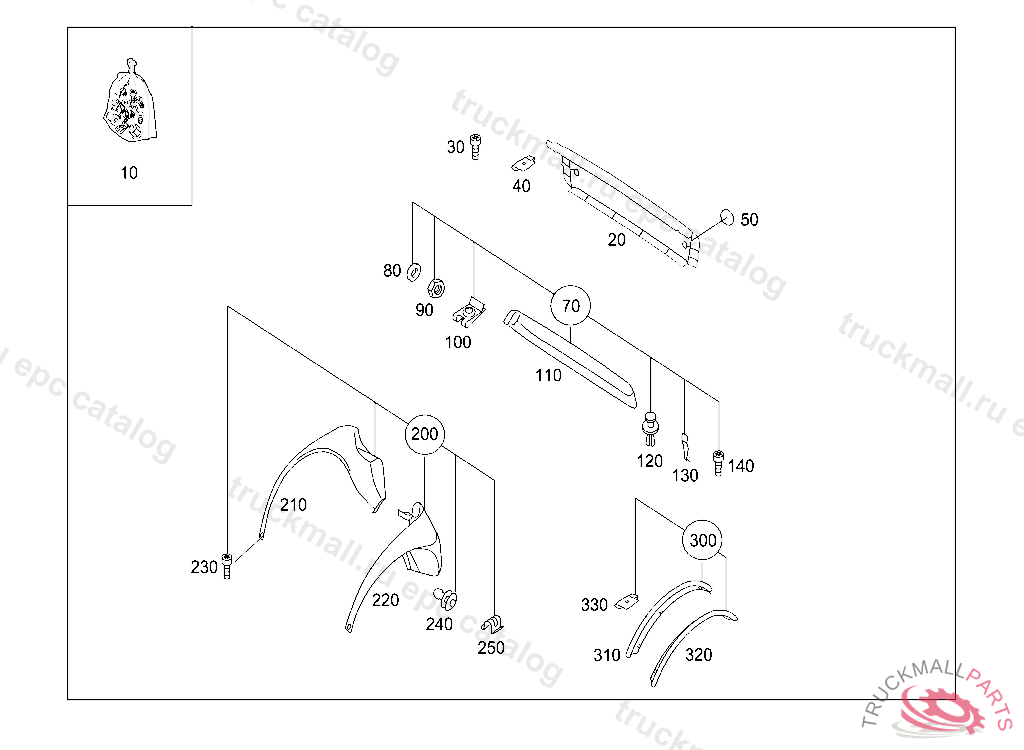

88 ATTACHMENT PARTS - 070 REAR DETACHABLE BODY COMPONENTS

Поз.
Артикул
Описание
10
Q0013749V001000000
ASSEMBLY KIT SIDE SECTION SIDEWALL PART
10
Q0013738V001000000
ASSEMBLY KIT HEAT SHIELD HEAT GUARD
20
Q0000941V013C43L00
REAR CENTRE SECTION LEMON GREEN, H 30204220010115
20
Q0000941V013C50L00
REAR CENTRE SECTION RIVER SILVER
20
Q0000941V012C05L00
REAR CENTRE SECTION HELLO YELLOW, 20010108
20
Q0000941V012C21L00
REAR CENTRE SECTION JACK BLACK, Replaced By: Q0000941V013C21L00
20
Q0000941V013C54L00
REAR CENTRE SECTION NUMERIC BLUE
20
Q0000941V012C03L00
REAR CENTRE SECTION MAD RED, H 12579620000221
20
Q0000941V013C22L00
REAR CENTRE SECTION TRUE BLUE METALLIC
20
Q0000941V013C36L00
REAR CENTRE SECTION PHAT RED
20
Q0000941V012C07L00
REAR CENTRE SECTION AQUA ORANGE, 19990111 H 12752820000225
20
Q0000941V013C85L00
REAR CENTRE SECTION STAR BLUE, H 50073520020211
20
Q0000941V013C21L00
REAR CENTRE SECTION JACK BLACK
20
Q0000941V013C44L00
REAR CENTRE SECTION BAY GRAY
20
Q0000941V013C04L00
REAR CENTRE SECTION LITE WHITE
20
Q0000941V013C84L00
REAR CENTRE SECTION SCRATCH
20
Q0000941V013CP6A00
REAR CENTRE SECTION JACK BLACK UNPAINTED
20
Q0000941V012C08L00
REAR CENTRE SECTION AQUA GREEN, H 30058820010108
20
Q0000941V013C09L00
REAR CENTRE SECTION AQUA VANILLA, H 12752920000225
20
Q0000941V012C44L00
REAR CENTRE SECTION BAY GRAY, Replaced By: Q0000941V013C44L00
20
Q0000941V012C50L00
REAR CENTRE SECTION RIVER SILVER, Replaced By: Q0000941V013C50L00
20
Q0000941V012C54L00
REAR CENTRE SECTION NUMERIC BLUE, H 30058920010108, Replaced By: Q0000941V013C54L00
30
Q0004991V000000000
SCREW FEMALE TORX M5 X 25
40
Q0005362V002000000
PANEL CLIP
50
Q0003944V004C22A00
COVER TOW-HOOK BLACK
70
Q0013731V001C04B00
HEAT SHIELD PANEL HIGH-GRADE STEEL
70
Q0013938V001C04B00
HEAT SHIELD PANEL HIGH-GRADE STEEL
80
Q0006084V001000000
ELASTOMER RING
90
Q0013818V000000000
NUT M5 SELF-LOCKING
100
Q0009222V000000000
PUSH-ON NUTS ST 4.2
110
Q0000946V007000000
HEAT SHIELD PANEL , H 42551020020121
110
Q0000946V009000000
HEAT SHIELD PANEL
120
Q0001789V000000000
SPLIT RIVET D 6
130
Q0000897V007000000
STRUT HEAT SHIELD , H 50002020020211
130
Q0000897V008000000
STRUT HEAT SHIELD , 20020211
140
Q0001774V002000000
BOLTINNENTORX ST 5.5 X 19 FEDERND
140
A0019846429
SCREW W COLLAR A DRIVEM5X35
140
Q0004430V001000000
SCREW FEMALE TORX M5 X 25
200
Q0013747V001C07B00
SIDE SECTION MCC BARE
210
Q0004751V007CP6A00
SIDE SECTION RH JACK BLACK UNPAINTED, RIGHT
210
Q0004751V007C70L00
SIDE SECTION RH FLARE, BLACK, RIGHT, H 37354820010730
210
Q0000943V012CP6A00
SIDE SECTION RH JACK BLACK UNPAINTED, RIGHT
210
Q0013953V001C07B00
WING REAR RH REAR RIGHT
220
Q0013948V001C07B00
WING REAR LH SHELL LEFT
220
Q0004750V007CP6A00
SIDE SECTION LH JACK BLACK UNPAINTED, LEFT
220
Q0000942V012CP6A00
SIDE SECTION LH JACK BLACK UNPAINTED, LEFT
230
Q0013826V000000000
SCREW 3,9 X 13
230
Q0004995V000000000
SCREW FEMALE TORX M5 X 25
240
Q0001781V002000000
CLIP KEYHOLE RIGHT, 19960101
250
Q0001780V000000000
CLIP SPEEDFIX , Replaced By: Q0007371V000000000
250
Q0007371V000000000
CLIP SPEEDFIX , Replaced By: Q0007371V000L04600
300
Q0015595V001C22A00
TOP SECTION BLACK
300
Q0015521V001C22A00
TOP SECTION BRABUS BLACK
310
Q0015519V001C22A00
TOP SECTION RH BRABUS JAP BRABUS SMART
310
Q0015519V001C50L00
TOP SECTION RH BRABUS JAP BRABUS SMART
320
Q0015518V001C50L00
TOP SECTION LH BRABUS BRABUS SMART
320
Q0015518V001C22A00
TOP SECTION LH BRABUS BRABUS SMART
330
Q0014448V000000000
FIXING CLIP
