Поз.
Артикул
Описание

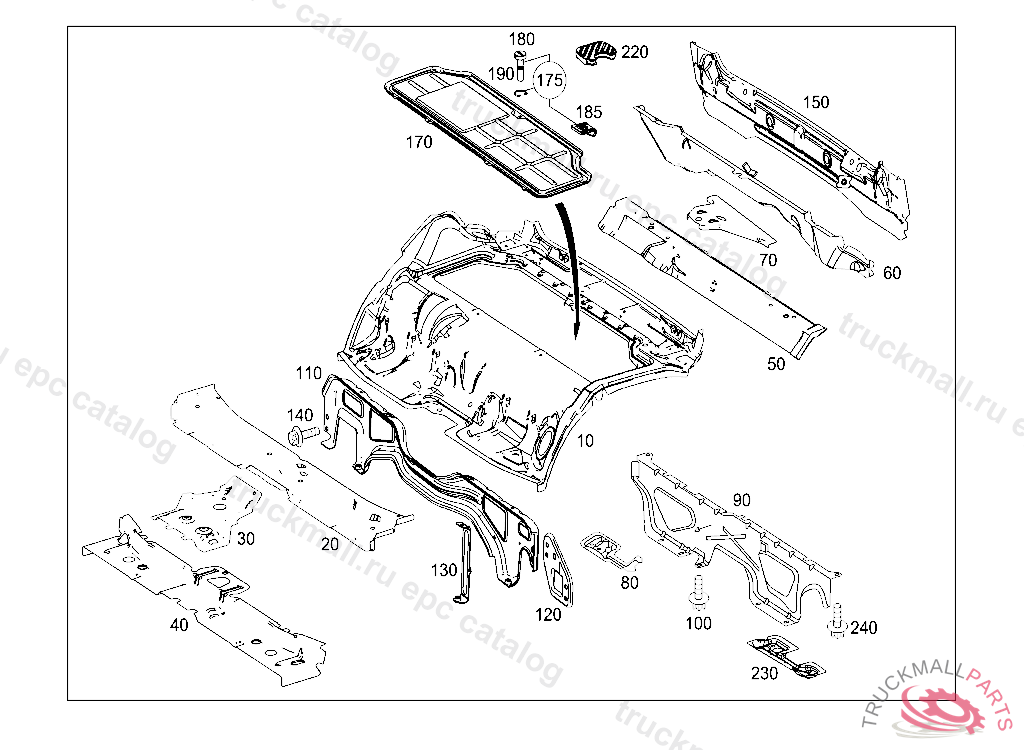

10
FLOOR PANEL REAR END FLOOR
20
CROSS MEMBER REAR END FLOOR,FRONT
20
CROSS MEMBER REAR END FLOOR,FRONT, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 20111115, Replaced By: A4516100900
30
REINFORCEMENT CROSSMEMBER TO REAR FLOOR ASSEMBLY
40
CROSS MEMBER REAR END FLOOR,FRONT
50
CROSS MEMBER REAR FLOOR ASSEMBLY CENTER
60
CROSS MEMBER REAR FLOOR ASSEMBLY, REAR
70
REINFORCEMENT REAR END FLOOR
80
TAKE-UP DEVICE LEFT BULKHEAD
80
TAKE-UP DEVICE RIGHT BULKHEAD
90
REINFORCEMENT PARTITION PANEL,REAR
100
BOLT FASTENING STRUT M 8X16
150
REAR END CENTER ASSEMBLY. REAR END CENTER ASSEMBLY END PLATE
170
COVER ENGINE COMPARTMENT FLAP
175
ROTARY CATCH PARTS KIT
180
TURNING BOLT ENGINE COMPARTMENT FLAP
180
ROTARY KNOB ENGINE COMPARTMENT FLAP, Replaced By: A0009880367
185
HOLDDOWN CLIP ENGINE COMPARTMENT FLAP, Replaced By: A0029913570
185
HOLDDOWN CLIP ENGINE COMPARTMENT FLAP
190
WASHER6 MM
190
LOCK ATTACHMENT NOISE ENCAPSULATION
190
SPACER DISK MOUNTING,ROTARY BUTTON, Replaced By: A0039908740
220
COVER ROTARY KNOB
230
FIXTURE RIGHT BULKHEAD
230
FIXTURE LEFT BULKHEAD
