Поз.
Артикул
Описание

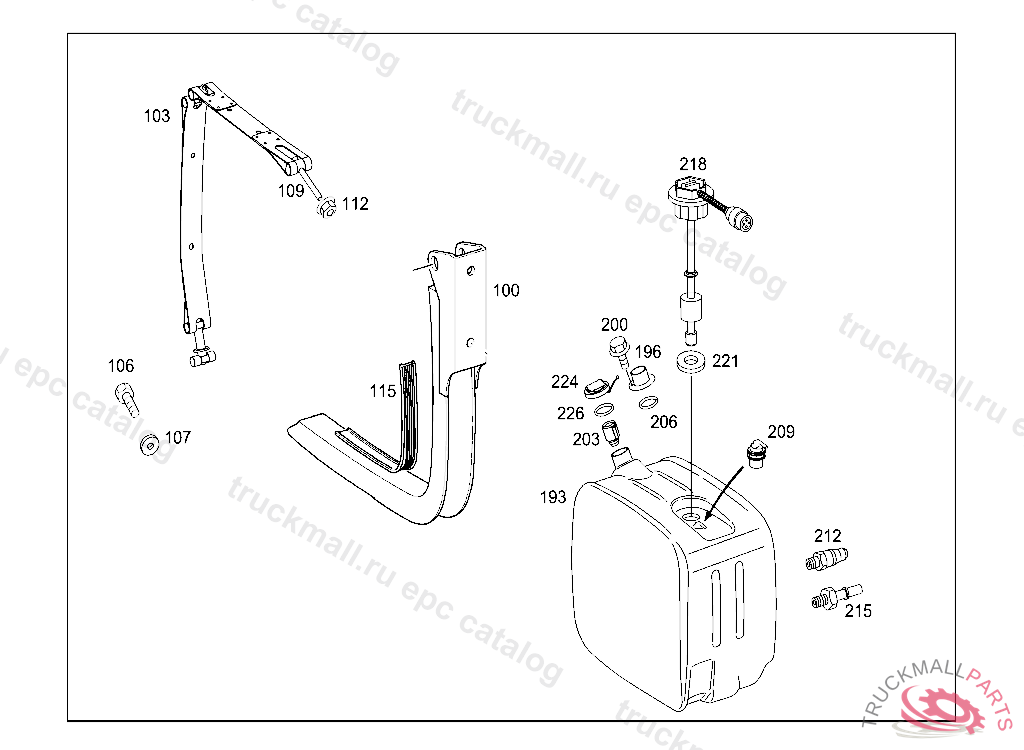

100
SUPPORT RESERVOIR
103
STRAP RESERVOIR
106
CAP BOLTM12X1.5X90
107
WASHER LEAF SPRING TO STRUT
109
SCREW W HEXAGON SOCKET STRAP TO SUPPORT
112
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
115
PAD BRAKE ANCHOR
193
NOX REDUCING AGENT TANK PLASTIC 85L, FOR COMPONENT PARTS SEE SPARE PARTS LIST
196
FILLER NECK PLASTIC CONTAINER
200
SCREW FILLER NECK TO RESERVOIR 3X20 MM
203
ELEMENT ANTI-CONFUSION PROTECTION
206
SEAL RING
209
PRESSURE RELIEF VALVE , FROM 01.07.09
212
SCREW-IN FITTING HEATING CONNECTION M 14X1.5
215
SCREW-IN FITTINGM 16X1.5, ADBLUE
218
SENDER UNIT FILL LEVEL SENSOR 25/45L
221
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
224
FILLER CAP NON-KEY LOCKING
226
SEAL RING
