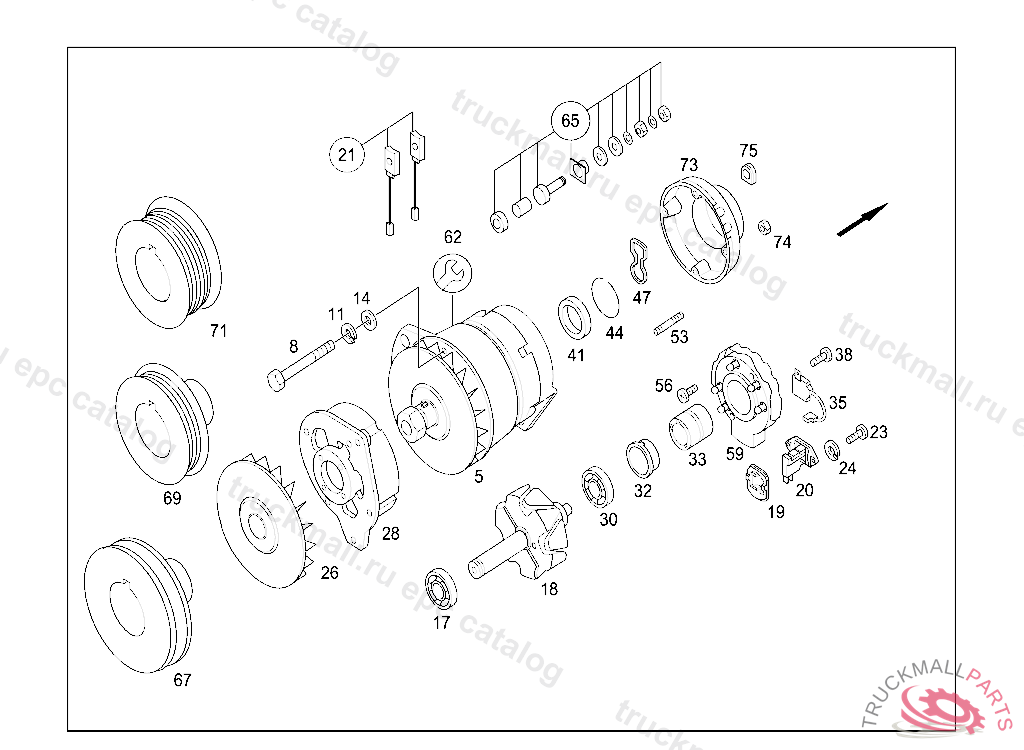

Поз.
Артикул
Описание
5
ALTERNATOR WITH REGULATOR INCORPORATED,LESS PULLEY
5
ALTERNATOR WITH REGULATOR INCORPORATED,LESS PULLEY BOSCH 28V 110/180A
5
ALTERNATOR , Replaced By: A4761547701
8
SCREW HOUSING
8
SCREW
11
LOCK WASHER
14
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
14
WASHER COMPRESSED AIR LINE TO BRACKET
17
BALL BEARING
20
REGULATOR AND CUT-OUT
20
REGULATOR
20
REGULATOR SWITCH
21
CARBON BRUSH SET
23
SCREW
23
SCREW FUSE BOX TO SIDE MEMBER,5 097182
23
SCREW REGULATOR MOUNTING TO 009 154 07 02
26
FAN
26
FANTO 011 154 50 02
26
FAN
28
BEARING
30
CYLINDR. ROLLER BEARING
30
CYLINDR. ROLLER BEARING SLIP RING SIDE
32
SPACER RING
32
SPACER RING
35
CONDENSER
38
SCREW APPARATUS PLATE TO CAB,K 062140
41
SEAL RING
41
SEAL RING
44
SNAP RING
47
GASKET
53
STUD
56
SCREW T-FITTING TO BRACKET M4X25
56
SCREW
59
RECTIFIERTO 009 154 08 02,008 154 78 02
59
RECTIFIER
62
REPAIR KIT ROTOR TO 009 154 08 02,008 154 78 02
71
PULLEY AT ALTERNATOR
71
PULLEY AT ALTERNATOR
71
PULLEY AT ALTERNATOR
71
PULLEY AT ALTERNATOR, EXHAUST STOCK OF OLD PARTS UP TO ENGINE 678009, Replaced By: A9061552515
71
PULLEY AT ALTERNATOR
71
PULLEY ALTERNATOR
71
PULLEY AT ALTERNATOR
73
COVER
75
CABLE GROMMET. GASKETTO 011 154 50 02
