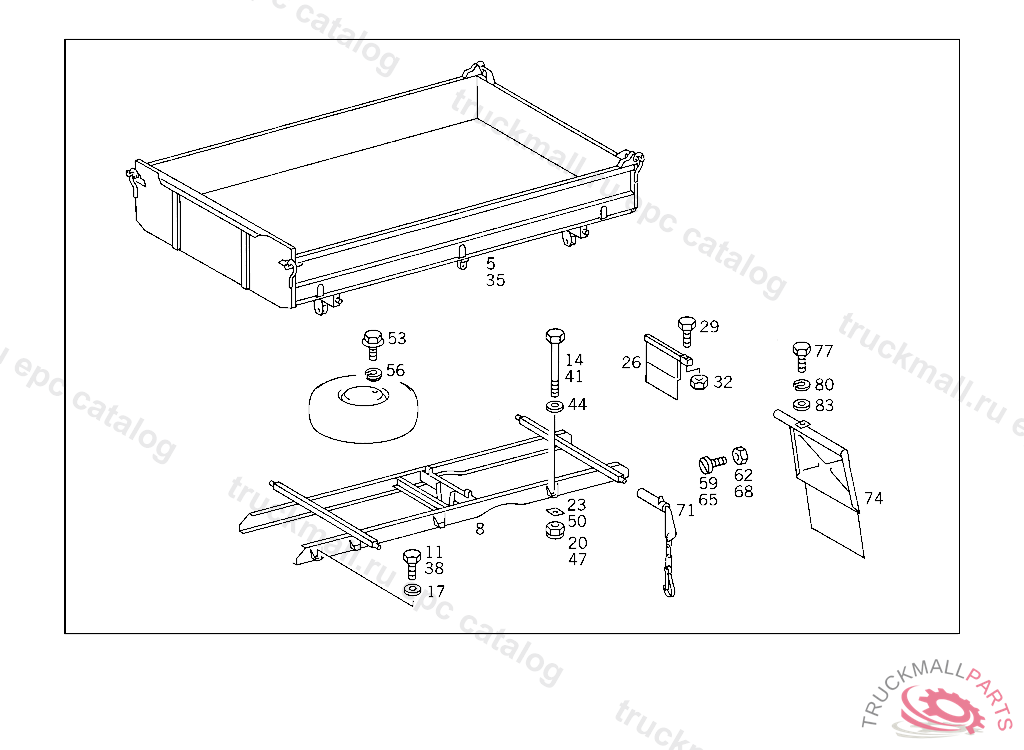

Поз.
Артикул
Описание
35
PLATFORM3500X2000X300 MM, TO BE ORDERED FROM MESSRS.DAUTEL,HEILBRONN
38
SCREW EXHAUST PIPE TO BRACKET
41
SCREW STRUT TO FRAME M 12X62
41
SCREW , Replaced By: N308676012018
47
NUT BRACKET TO FRAME SIDE MEMBER
50
PLATE RUBBER MOUNTING TO SUPPORT
53
SCREW SPARE WHEEL TO AUXILIARY FRAME M 12X30
56
LOCK WASHER SPARE WHEEL MOUNTING,007585
71
COUPLING PIN FROM DUMPER PLATFORM SUBSTRUCTURE LOCK TO FRAME
74
SPLASH GUARD RIGHT
74
SPLASH GUARD LEFT,556499
77
SCREW BRACKET TO TRANSMISSION
80
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
83
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
83
WASHER , Replaced By: N007349013005
999
SUBSTRUCTURE
