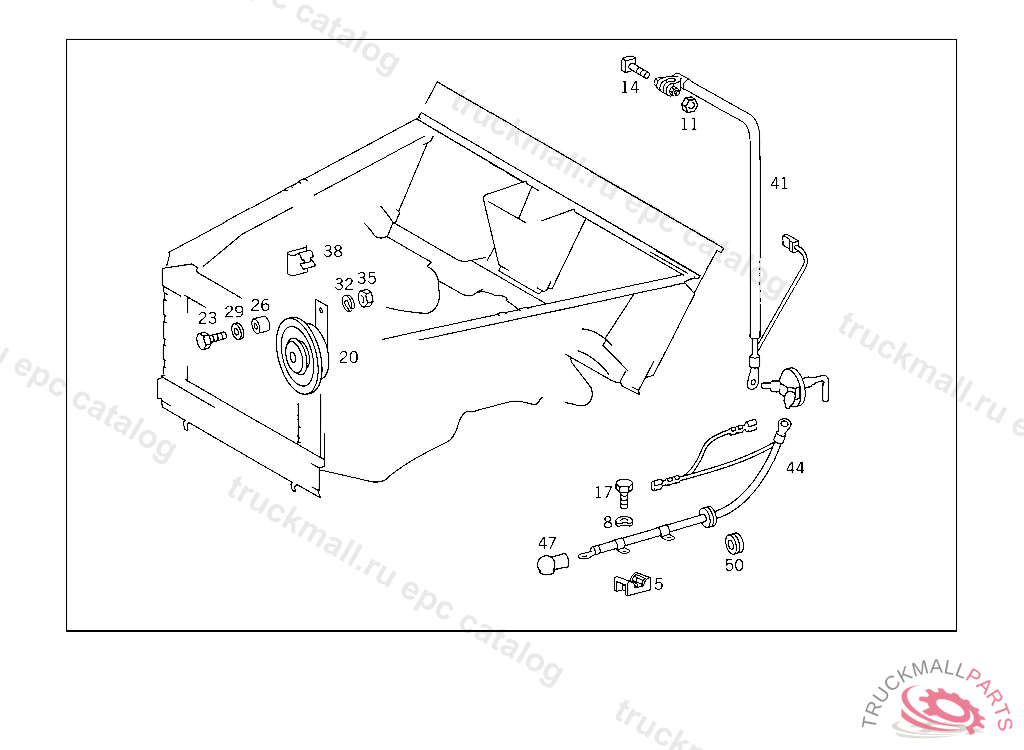

Поз.
Артикул
Описание
5
BRACKET
8
SPRING WASHER LICENSE PLATE TO BRACKET
11
NUT
14
SCREW CLAMPING PIECE
17
SCREW COVER PLATE TO COVER PLATE M 6 X 10
17
SCREW , Replaced By: N304017006034
20
HORN24V 335 HZ
23
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
23
SCREW , Replaced By: N304017008027
26
SPACER TUBE HORN TO CROSS STRUT 14X2X17 MM
29
WASHER EXHAUST MUFFLER TO STRAP
29
WASHER , Replaced By: N000125008443
32
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
35
NUT
38
CLIP CABLE HARNESS MOUNTING
38
CLIP CABLE HARNESS TO ROOF RAIL
41
GROUND STRAP FROM BATTERY TO MASTER SWITCH
41
GROUND STRAP
44
GROUND STRAP BODY 24 V
44
GROUND STRAP FROM BATTERY MASTER SWITCH TO GROUND
47
BOOT BATTERY MASTER SWITCH
50
GROMMET
