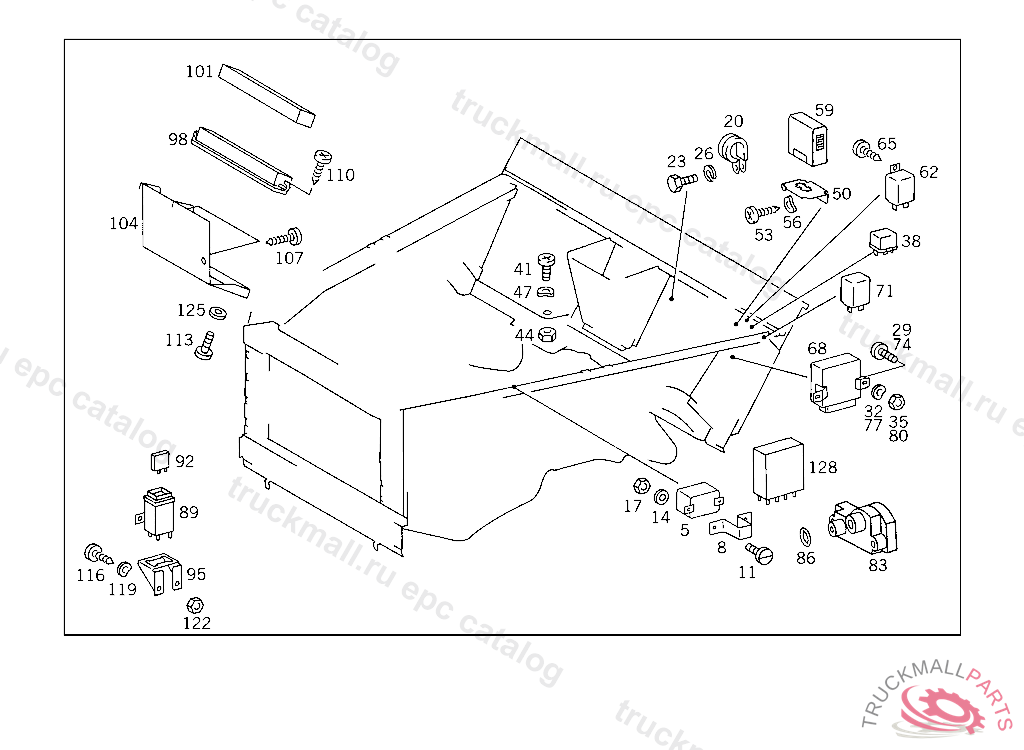

Поз.
Артикул
Описание
5
RELAY
8
BRACKET
11
SCREW
14
WASHER BOOT TO CAB FLOOR
14
WASHER , Replaced By: N000433005304
17
NUT TACHOGRAPH TO BRACKET
20
CLAMP , Replaced By: N916016010211
20
CLAMP , Replaced By: N000000001045
20
CLAMP CABLE HARNESS MOUNTING
23
SCREW COVER PLATE TO COVER PLATE M 6 X 12
26
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
29
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
32
SPRING WASHER ALTERNATOR CONNECTION D+
35
NUT TACHOGRAPH TO BRACKET
38
RELAY , Replaced By: A0035459605
41
SCREW CONTROL UNIT TO CAB
44
NUT TACHOGRAPH TO BRACKET
47
SPRING WASHER ALTERNATOR CONNECTION D+
50
BRACKET ELECTRONIC CONTROL BOX
53
SHEET METAL SCREW BRACKET TO FLOOR PLATE
53
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
56
SPRING WASHER ALTERNATOR CONNECTION D+
59
COVERING
68
CONTROL UNIT WIPER PULSE SENDER UNIT
68
SWITCH,AUTOMATIC
68
SENDER UNIT , Replaced By: A0225452532
68
SENDER UNIT WIPER PULSE SENDER UNIT
71
SENDER UNIT HAZARD WARNING LIGHT,5 447531
74
SCREW CONTROL UNIT TO CAB
77
SPRING WASHER ALTERNATOR CONNECTION D+
80
NUT TACHOGRAPH TO BRACKET
89
RELAY OVERLOAD PROTECTOR
89
SWITCH , Replaced By: A2015400845, +001A1235450628
92
FUSE , Replaced By: A0025450934
92
FUSE , Replaced By: N072581000304
92
FUSE10 A
95
BRACKET OVERLOAD PROTECTOR, TO BE ADAPTED DURING ASSEMBLY
98
FUSE BOX 12-POLE
98
FUSE BOX 12-POLE,024323
98
FUSE BOX 12-POLE
101
CAP FUSE BOX,303365
104
BRACKET FUSE BOX
104
BRACKET FUSE BOX
107
SHEET METAL SCREW BRACKET TO CAB FLOOR
110
SHEET METAL SCREW SWITCH TO BRACKET
113
SCREW REFLECTOR TO BRACKET
119
SPRING WASHER ALTERNATOR CONNECTION D+
122
NUT TACHOGRAPH TO BRACKET
125
WASHER BRACKET TO FIRE WALL
