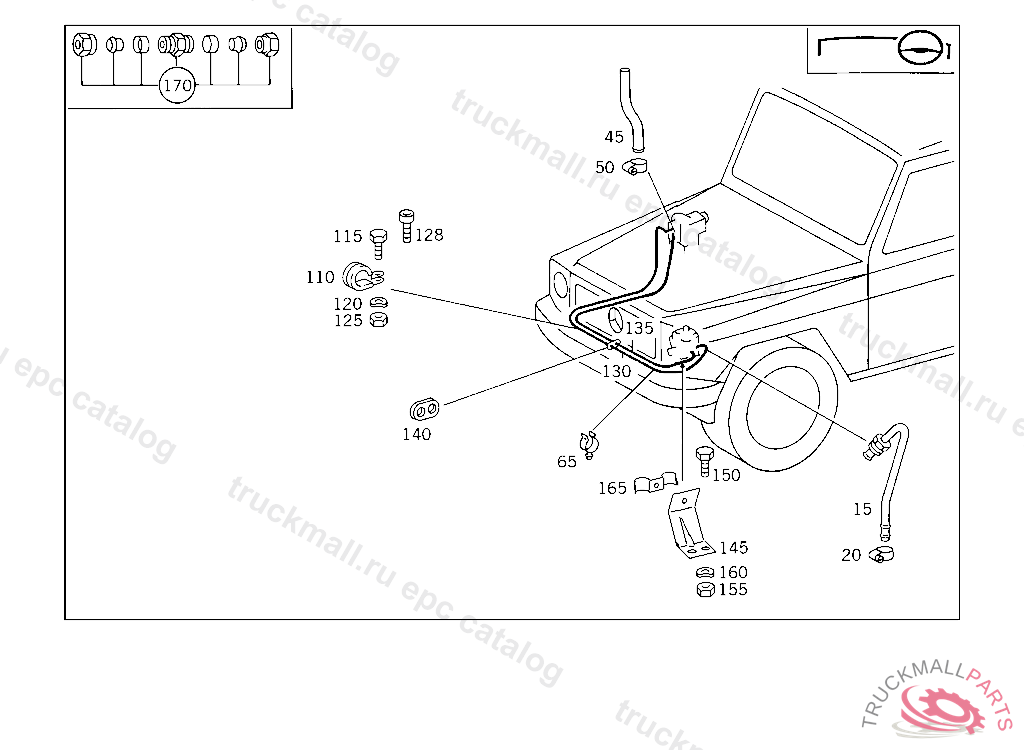

Поз.
Артикул
Описание
15
LINE LOW PRESSURE, 031424 900870
20
HOSE CLAMP LINE MOUNTING
20
CLAMP , Replaced By: A0059970190
45
PIPE , FOR UNION NUT AND GLAND,SEE UNIT MICROFICHE,MODEL 765.5
50
HOSE CLAMP LINE MOUNTING
50
CLAMP , Replaced By: A0059970190
65
CLAMP , Replaced By: A0005465143
110
CLAMP PIPE ON FAN SHROUD
115
SCREW LICENSE PLATE TO BRACKET
115
SCREW , Replaced By: N304017006020
120
SPRING WASHER LICENSE PLATE TO BRACKET
125
NUT BALL PIVOT TO LEVER
128
SCREW CENTRAL LOCK TO CAB M 10X16
130
LINE12 MM, ORDER BY THE METER4 691315
130
LINE , Replaced By: A0004291001, +002A0019901967, +002N915017012100
135
LINE , Replaced By: A0004290101, +002N003861010009, +002N915017010100
135
LINE GAS LINE 10X1,5, LENGTH AVAILABLE 3000 MM REPAIR WORK SUBJECT TO SAFETY CHECK
140
DAMPING STRIP , 031425 900891
145
BRACKET , 031425 900871
150
SCREW COVER PLATE TO COVER PLATE M 6 X 12
150
SCREW COVER PLATE TO BRACKET
150
SCREW , Replaced By: N304017006018
155
NUT BALL PIVOT TO LEVER
160
SPRING WASHER LICENSE PLATE TO BRACKET
165
CLAMP LINES TO BRACKET, 031425 900891
170
FITTING (PARTS KIT),LINE RUPTURE
170
FITTING (PARTS KIT),LINE RUPTURE
170
FITTING , Replaced By: A0029906171
999
HOSE HIGH PRESSURE
999
HOSE HIGH PRESSURE
999
PIPE , FOR UNION NUT AND GLAND,SEE UNIT MICROFICHE,MODEL 765.5
999
LINE FROM POWER STEERING PUMP TO STEERING
999
LINE , Replaced By: A4604605124
999
RUBBER RING , 022 002391 ALSO INSTALLED ON 002285,002389,002390. 042 001836 ALSO INSTALLED ON 001736,001813,001823,001828,001834,001835. 022 005200 EXCEPT FOR 005190-005192,005194-005199. 042 004221 EXCEPT FOR 004213,004215-004218,004220.
999
BRACKET HOSE TO ENGINE
999
HOSE (RETURN LINE),FROM STEERING TO OIL TANK
