Mercedes A4614600105 - Тяга рулевая

G 270 CDI 461.332 FROM CHASSIS 144791

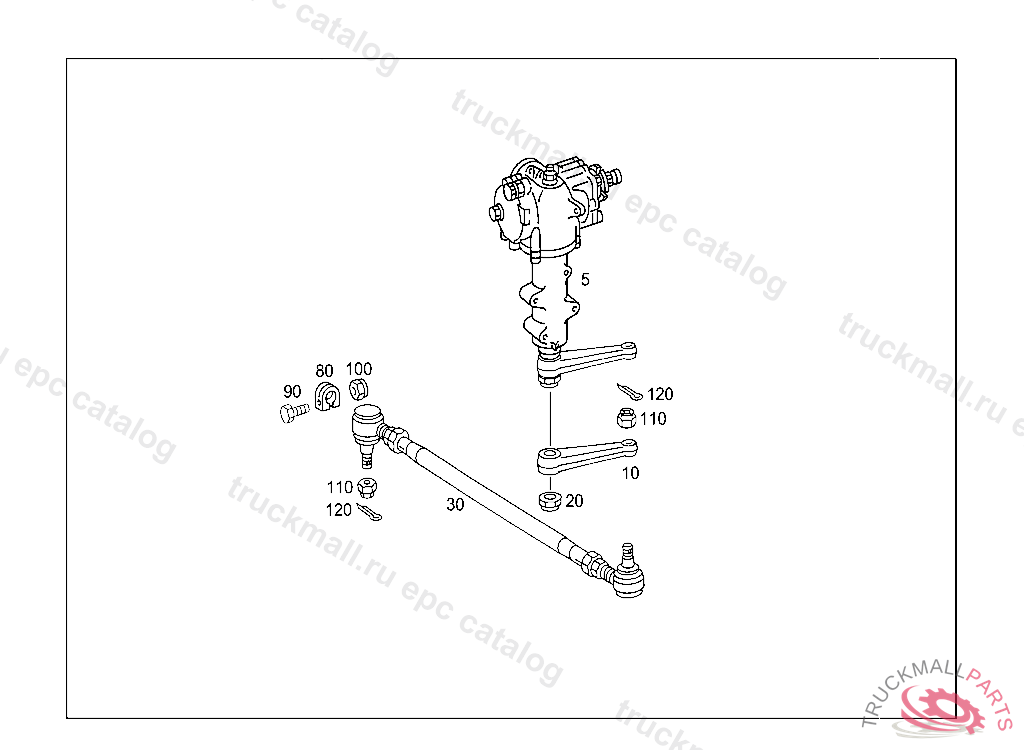

46 STEERING - 120 STEERING LINKAGE

Поз.
Артикул
Описание
5
A4604605101
STEERING BOX ASSEMBLY POWER STEERING
5
A4614600001
STEERING BOX ASSEMBLY STEERING GEAR
5
A4604605001
STEERING BOX ASSEMBLY , Replaced By: A4614600001, +001A4604630201, +001A0019907651
10
A4604630201
PITMAN ARM ,007239
10
A4604630301
PITMAN ARM ,007239
20
A0019907651
NUT DRAG LINK TO LEVER
30
A4614600305
DRAG LINK
30
A4614630315
DRAG LINK
30
A4614600105
DRAG LINK
30
A4614600205
DRAG LINK
80
A0003383245
CLAMP BALL JOINT TO TIE ROD
90
N308676010016
HEXAGON HEAD BOLTM10X1X50
100
N910113010003
NUT REINFORCEMENT TO BRACKET
110
N000979016002
NUT DRAG LINK TO PITMAN ARM AND TO STEERING INTERMEDIATE ARM M 16X1.5
120
N000094004065
COTTER PINROCKINGER TYP 260 G140
