Mercedes A4638550507 - Подножка

G 270 CDI 461.332 FROM CHASSIS 144791

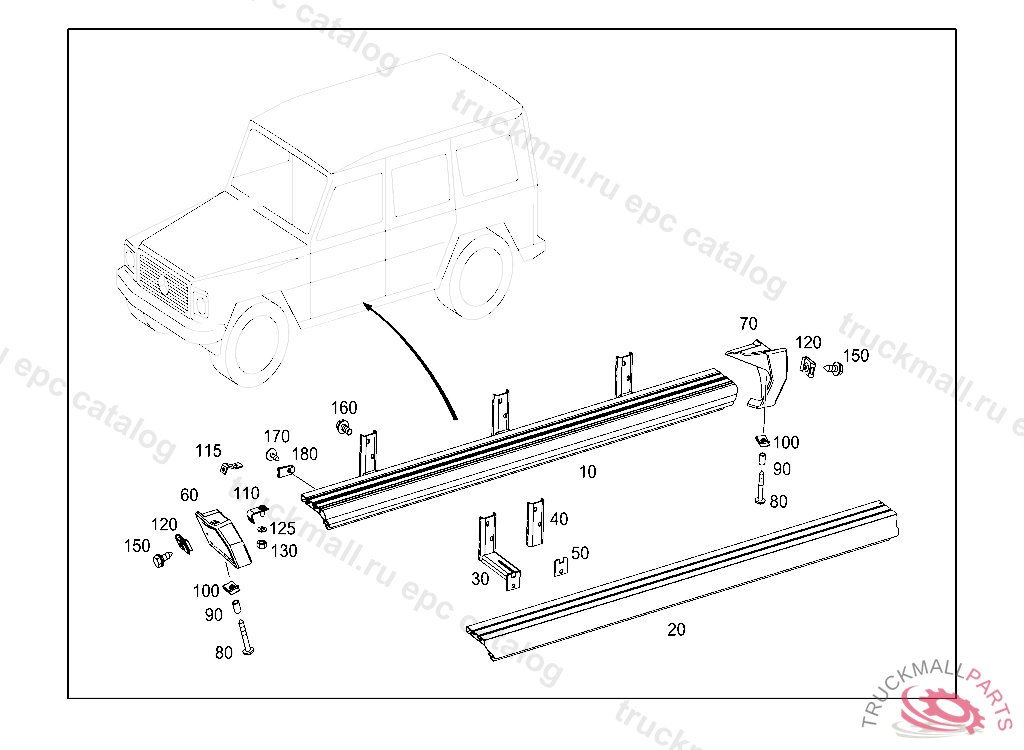

88 ATTACHMENT PARTS - 150 ROCKER PANEL / TOUCH-DOWN PROTECTION

Поз.
Артикул
Описание
10
A4638502807
STEP RIGHT
10
A4638502707
STEP LEFT
20
A4638550607
STEP IN CASE OF FENDER WIDENING,RIGHT
20
A4638550507
STEP LEFT
30
A4638500330
CONSOLE LEFT
40
A4638550031
CONSOLE LEFT
50
A4638550111
PLATE LEFT
60
A4638550235
PANELING FRONT RIGHT
60
A4638550135
PANELING FRONT LEFT
70
A4638550335
PANELING REAR LEFT
70
A4638550435
PANELING REAR RIGHT
80
N000000000532
TAPPING SCREW FOR GRIP HANDLE
90
A1239910040
SPACER TUBE ACTUATOR TO BRACKET
100
A0009949845
LOCK
110
A4638500114
BRACKET END PIECE TO FRONT STEP
115
A4638550014
BRACKET END PIECE TO FRONT STEP
120
A1299940145
LOCK
125
N000125008445
WASHER PUMP TO CONSOLE
130
N304032008012
HEXAGON NUT. NUT L.H. THREAD
150
N000000000535
TAPPING SCREW RADIATOR GRILLE SHELL TO ENGINE HOOD 4.8X13
160
N000000005053
HEXAGON HEAD BOLT HEAT SHIELD MOUNTING M10X20
170
A1239941845
LOCK COVERING TO INSTRUMENT PANEL,TOP
180
N000000001454
TAPPING SCREW , A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 805 FROM MODEL YEAR'95
