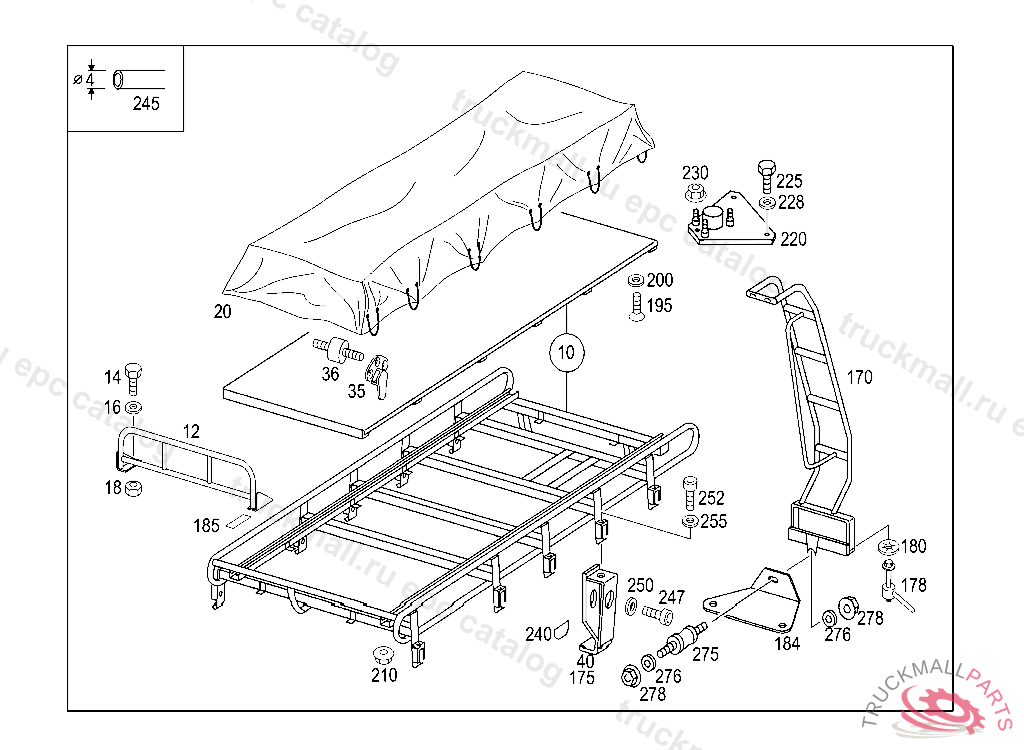

Поз.
Артикул
Описание
10
LUGGAGE GALLERY ROOF
10
LUGGAGE GALLERY ROOF
10
LUGGAGE GALLERY ROOF
12
LUGGAGE GALLERY ROOF, 6431QFT461A3230 BRONZE GREEN DULL MATT
14
ROOF RACK ROOF
14
BOLT FASTENING ROOF RACK
16
WASHER BRACKET TO LEFT SIDE MEMBER
18
HEXAGON NUT. NUT L.H. THREAD
20
TARPAULIN LUGGAGE GALLERY
35
TARPAULIN BOW ROOF RACK
36
RUBBER BUFFER TO PLUG THE MOUNTING HOLE USED FOR GROUND CONNECTION IN CASE OF R.H.D.
40
BRACKET LUGGAGE GALLERY
40
BRACKET SUPPORT
170
LADDER
170
LADDER ROOF RAILING
175
BRACKET SUPPORT
178
TENSIONING ELEMENT MOUNTING, SAND LADDER
180
LOCK STOP TO BEARING BRACKET
184
BRACKET LADDER TO BUMPER
185
SEAL ROOF RACK
195
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
200
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
200
WASHER COMPRESSED AIR LINE TO BRACKET
210
NUT BRACKET TO REAR PANEL
220
CARRIER PLATE CAMOUFLAGE NETTING TO SPARE WHEEL CARRIER
220
PLATE CAMOUFLAGE NETTING TO SPARE WHEEL CARRIER, X 18752220101001
225
HEXAGON HEAD BOLT BRACKET TO BRACKET
225
HEX. HEAD SCREW. SCREW ELECTRIC CABLE TO SIDE MEMBER, 032,033,040,041,132,133,140,141 FROM CAB 1606715
228
WASHER P.T.O. TO TRANSMISSION
228
WASHER RADIATOR TO RUBBER MOUNTING
230
NUT SPARE WHEEL TO SPARE WHEEL CARRIER
240
PAD ROOF MEMBER ON RAIN TROUGH
245
HOSE LEAK LINE, ORDER BY THE METER
247
SCREW SPRING STOP
250
WASHER PUMP TO CONSOLE
252
SCREW SPRING STOP
255
WASHER PUMP TO CONSOLE
275
BUFFER MOUNTING PARTS
276
WASHER PUMP TO CONSOLE
278
HEXAGON NUT. NUT L.H. THREAD
