Поз.
Артикул
Описание

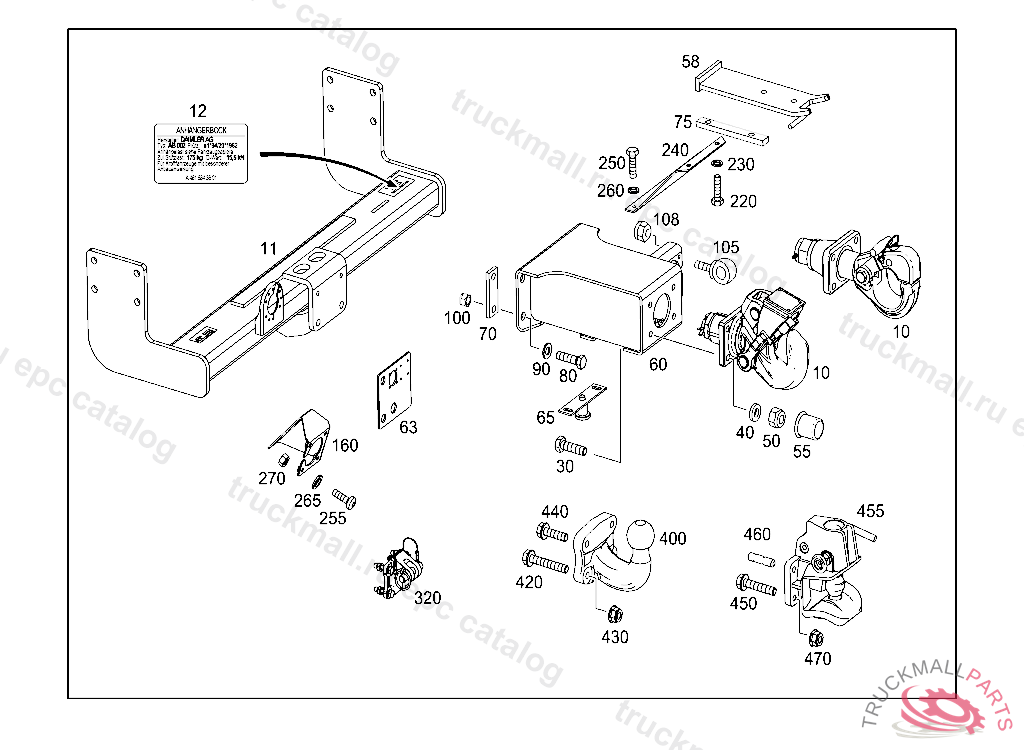

10
TRAILER COUPLING MAXIMUM DRAWBAR LOAD: 1235 KG
11
TRAILER BRACKET
12
MODEL PLATE HITCHING MECHANISM
30
SCREW CONNECTOR TO REAR SHIFTING ROD
40
WASHER P.T.O. TO TRANSMISSION
50
NUT CROSS MEMBER TO SIDE MEMBERS
58
BRACKET HOOK TYPE COUPLING LOCKING MECHANISM
60
BRACKET
63
BRACKET TRAILER PLUG SOCKET,7-POLE
65
BRACKET DETENT LOCKING MECHANISM
70
PLATE BRACKET TO FRAME
75
PLATE DETENT,BRACKET AND PLATE TO ZB BRACKET
80
HEXAGON HEAD BOLT. SCREW , Replaced By: N910105010044
90
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
100
NUT BRACKET TO SIDE MEMBER M12X1.5
100
NUT STEERING SUPPORT TO FRAME
105
SCREW FOR TRAILER BREAK-AWAY SAFETY VALVE
108
NUT COMBINATION CYLINDER TO BEARING BRACKET
160
BRACKET TRAILER PLUG SOCKET
220
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
230
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
240
BRACKET GUIDE CROSS LAMP
250
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
255
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
260
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
265
SPRING WASHER LICENSE PLATE TO BRACKET
270
NUT SPRING-LOADED PUSH ROD
400
BALL HEAD COUPLING
420
HEXAGON HEAD BOLT AUTOMATIC TRANSMISSION AT ENGINE M10X60
430
NUT LINKAGE TO REAR AXLE M10, J 45136320070307
440
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
450
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
455
TRAILER COUPLINGROCKINGER TYP 243U115EA
460
STUD TRAILER COUPLING TO REAR CROSS MEMBER
470
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
