Mercedes N910105008005 - БОЛТ М8

G 300 CDI 461.343 FROM CHASSIS 144791

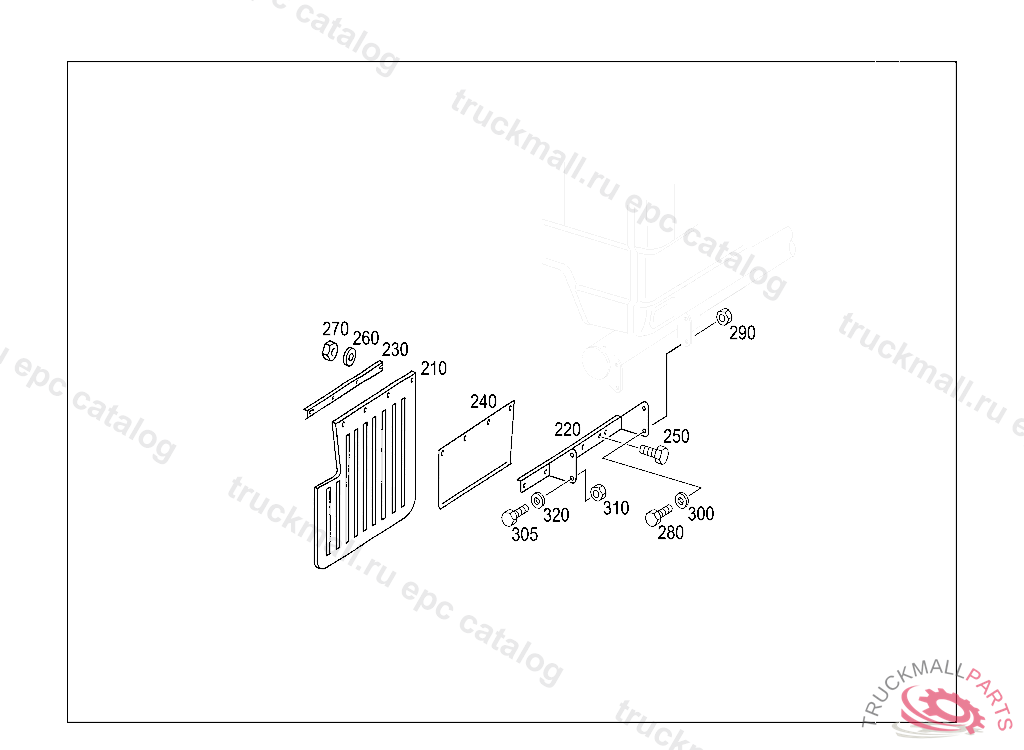

88 ATTACHMENT PARTS - 115 MUD APRON IL. 2

Поз.
Артикул
Описание
210
A4608891005
MUD APRON REAR LEFT
210
A4608891105
MUD APRON REAR RIGHT
220
A4618801514
BRACKET REAR RIGHT
230
A4615200233
SUPPORT TOWING EYE
250
N304017006016
SCREW PUMP TO BRACKET
250
N304017006020
SCREW LICENSE PLATE TO BRACKET
260
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
260
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
270
N304032006004
NUT SPRING-LOADED PUSH ROD
270
N910105008005
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
270
N910112008003
HEXAGON NUT. NUT OIL TANK TO SUBSTRUCTURE
280
N000961012039
SCREW BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER
290
N910113012002
NUT SUPPORT TO SIDE MEMBER
300
N000125013008
WASHER
305
N308676014003
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
310
N913002012004
NUT END PIECE TO EXHAUST PIPE
320
N000125015019
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
