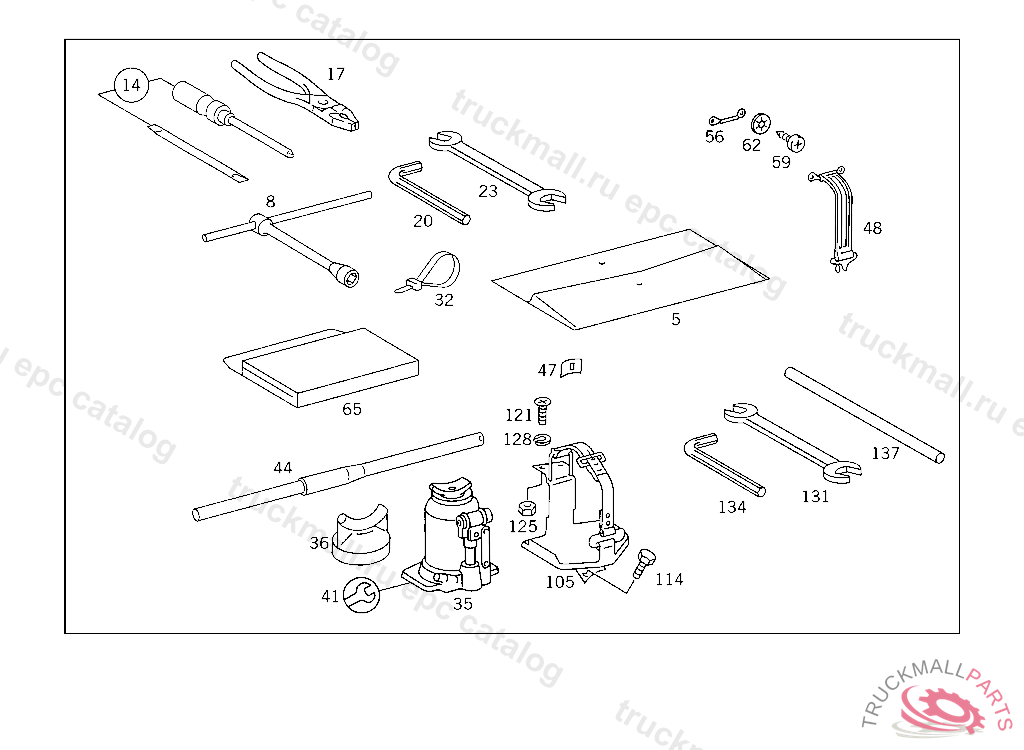

Поз.
Артикул
Описание
5
TOOL BAG
8
COMBINATION WRENCH , Replaced By: A3095810046
14
SCREWDRIVER THREE-PART
17
COMBINATION PLIERS NOT INCLUDED IN RANGE OF DELIVERY OF: 385 580 00 03
17
PLIERS
17
COMBINATION PLIERS , Replaced By: N005244180004
20
HEX. KEY WRENCH
23
OPEN END WRENCH11X13
23
OPEN END WRENCH10X11 MM
23
OPEN END WRENCH17X19 MM
32
LOOM TIE LINE MOUNTING
35
JACKWEBER 3,0 T,043531
35
JACK , Replaced By: A4615800118
35
JACK
35
JACK
36
LOCKING CAPTO 001 583 14 15
41
REPAIR KITTO 001 583 18 15,001 583 24 15
41
REPAIR KITTO 001 583 04 15,09 15,14 15
44
ROD
47
LOCK
48
BRACKET
48
CLAMPING BRACKET , Replaced By: A4607510332, +001A4607920384, +001A4609835294
56
BRACKET
59
SHEET METAL SCREW , Replaced By: N007981004385
59
SHEET METAL SCREW BRACKET TO UNDERRUN PROTECTION
62
SERRATED WASHER
65
PROTECTIVE WRAPPER LICENSE DOCUMENTS
105
SUPPORT
114
SCREW COVER PLATE TO COVER PLATE M 6 X 12
121
SCREW
125
NUT BALL PIVOT TO LEVER
128
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
HOOK APPARATUS PLATE
999
ELASTIC BAND TOOLS
