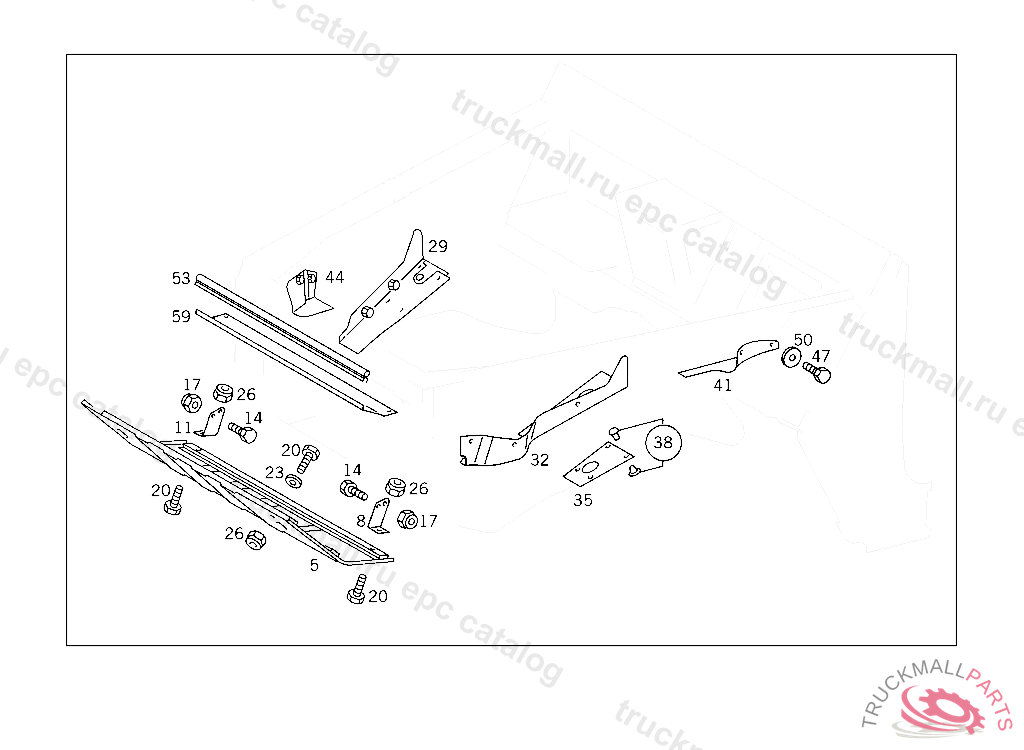

Поз.
Артикул
Описание
5
PROTECTIVE PLATE ENGINE PROTECTIVE PLATE
8
MOUNTING ANGLE LEFT
11
MOUNTING ANGLE RIGHT
14
SCREW BRACKET TO CROSS CONNECTION STRUT
14
SCREW , Replaced By: N304017008034
17
NUT SWITCH TO FLOOR PLATE
20
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
23
WASHER RADIATOR TO RUBBER MOUNTING
23
WASHER , Replaced By: N000125010532
26
NUT AIR CLEANER ELEMENT
29
PROTECTIVE PLATE LEFT
32
PROTECTIVE PLATE RIGHT
35
RUBBER SEALSA 28400/02
35
RUBBER SEAL , Replaced By: A4619870151
38
RIVETB 4X11X12
41
PROTECTIVE PLATE REAR RIGHT
41
PROTECTIVE PLATE REAR LEFT
44
PROTECTIVE PLATE FRONT
47
SCREW PUMP TO BRACKET
50
WASHER , Replaced By: N009021006208
50
WASHER COMPRESSED AIR LINE TO BRACKET
53
RUBBER SEAL , ORDER BY THE METER
59
PROTECTIVE PLATE FRONT
