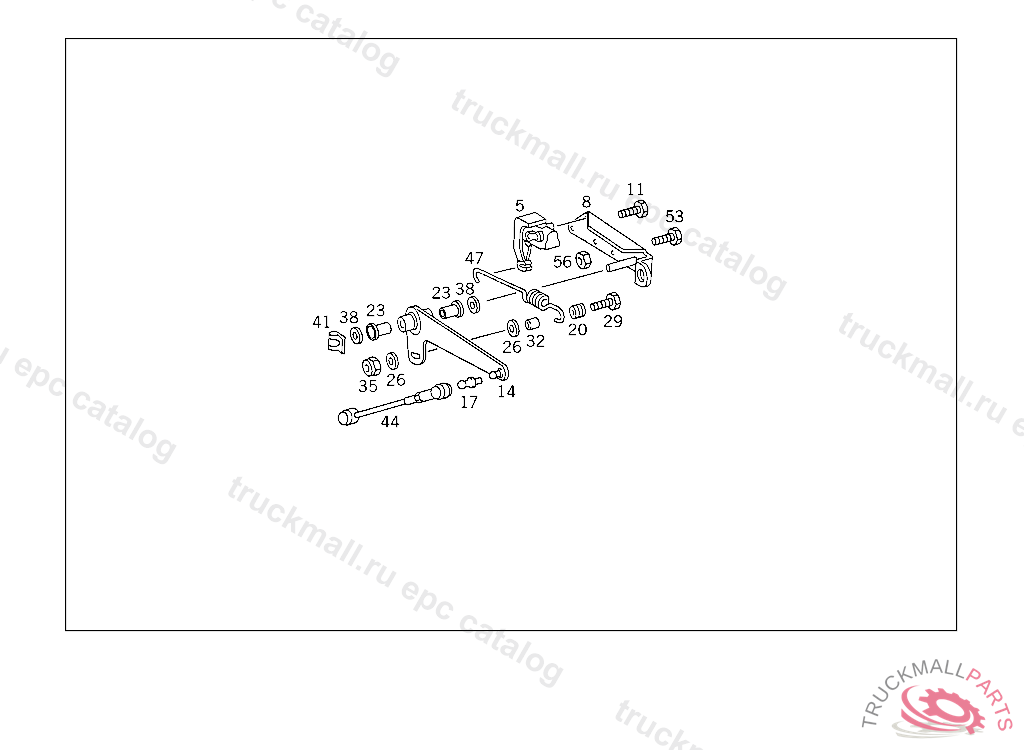

Поз.
Артикул
Описание
5
BRAKE PRESSURE REGULATOR ,649391 P 000001
5
BRAKE PRESSURE REGULATOR
8
BRACKET BRAKE POWER REGULATOR
11
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
11
SCREW , Replaced By: N304017008039
14
LEVER
17
BALL PIVOT BOTTOM B13X5 MM
20
BRACKET
23
BUSHING BRAKE PEDAL
23
BUSHING , Replaced By: A1242920050
26
WASHER , Replaced By: N000125008443
26
WASHER EXHAUST MUFFLER TO STRAP
29
SCREW VALVE TO CROSS MEMBER, NOT USED
32
SPACER TUBE , Replaced By: A4214210053
32
SPACER TUBE
35
NUT SWITCH TO FLOOR PLATE
38
FITTED WASHER ADJUSTING LEVER TO BRACKET
41
CLIP RESERVOIR TO CAB FRONT PANEL
44
ROD LEVER TO CONSOLE
47
SPRING
53
SCREW , Replaced By: N304017008021
53
SCREW PIPE CLAMP
56
NUT , Replaced By: N304032008006
56
NUT
