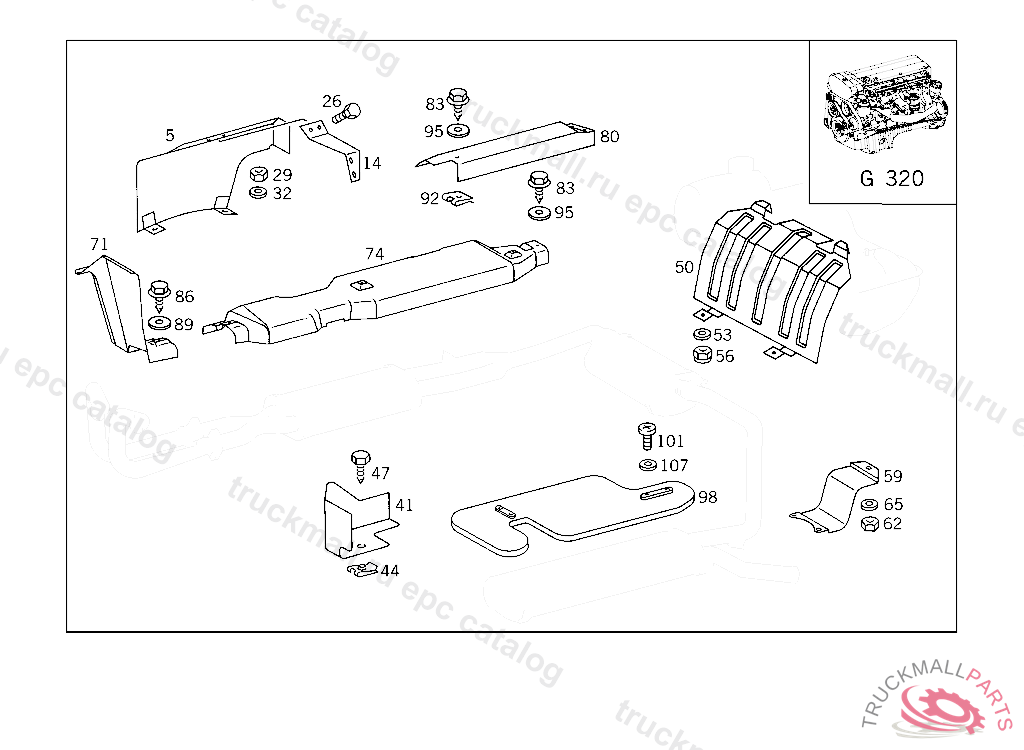

Поз.
Артикул
Описание
5
PROTECTIVE PLATE (HEAT SHIELD)
5
PROTECTIVE PLATE (HEAT SHIELD)
14
BRACKET AT HEAT SHIELD
26
SCREW PUMP TO BRACKET
29
NUT BALL PIVOT TO LEVER
29
NUT , Replaced By: N913004006001
29
NUT PUMP TO BRACKET
32
WASHER , Replaced By: N009021006208
32
WASHER COMPRESSED AIR LINE TO BRACKET
41
PROTECTIVE PLATE HEAT SHIELD AT BODY MOUNT,FRONT RIGHT
44
LOCK , Replaced By: A0049944545
44
CLIP-TYPE NUT BRACKET TO RELAY PLATE, A 994528 F 110300
44
LOCK AT ANGLE
47
SHEET METAL SCREW
50
PROTECTIVE PLATE AT FRAME ABOVE MUFFLER REAR
53
WASHER COMPRESSED AIR LINE TO BRACKET
56
NUT LICENSE PLATE TO BRACKET
59
PROTECTIVE PLATE
62
NUT
65
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
65
WASHER COMPRESSED AIR LINE TO BRACKET
71
SCREENING FRONT EXHAUST SYSTEM, 105668 912730
74
SCREENING CENTRAL EXHAUST SYSTEM G 320 3.6
74
SCREENING CENTRAL EXHAUST SYSTEM
80
SCREENING REAR EXHAUST SYSTEM
80
SCREENING REAR EXHAUST SYSTEM G 320 3.6
83
COMBINATION BOLT , FROM MODEL YEAR'95
83
TAPPING SCREW , A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 805 FROM MODEL YEAR'95
86
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
89
WASHER COMPRESSED AIR LINE TO BRACKET
92
LOCK INTAKE SCOOP TO FENDER
95
WASHER
95
WASHER MAIN MUFFLER SUSPENSION
98
PROTECTIVE PLATE , Replaced By: A4634925530
98
PROTECTIVE PLATE POSTERIOR MUFFLER, TO BE ADAPTED DURING ASSEMBLY
101
SCREW , Replaced By: N000000001146
101
SCREW CLAMP MOUNTING M 6X16
107
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
107
WASHER COMPRESSED AIR LINE TO BRACKET
