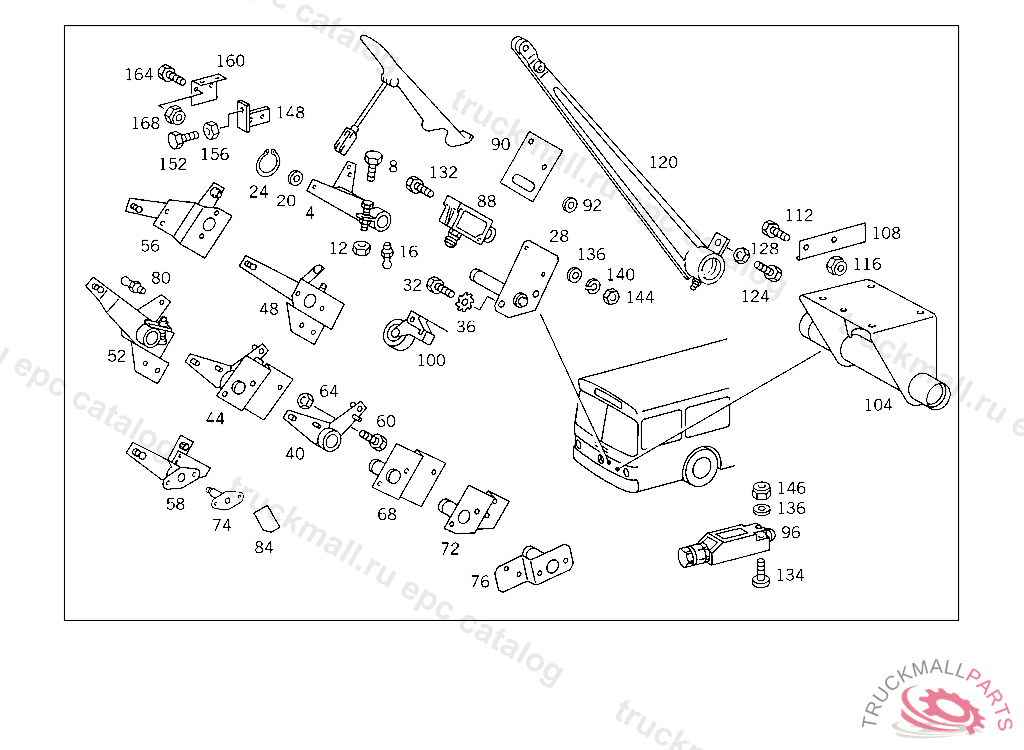

Поз.
Артикул
Описание
4
ACCELERATOR PEDAL
8
SCREW , Replaced By: N000933008337
8
SCREW , Replaced By: A0099900101
8
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
12
NUT , Replaced By: N304032008006
16
GREASE NIPPLE PROTECTIVE TUBE
20
WASHER PEDAL BEARING
24
LOCK RING
28
SHAFT PEDAL BEARING
32
SCREW END PIECE TO EXHAUST PIPE M 10X25
36
TOOTHED WASHER
40
LEVER
44
LEVER , Replaced By: A3073000428
44
LEVER (DOUBLE LEVER),005246
44
LEVER , FIRST EXHAUST STOCK OF OLD PARTS FROM IDENT NO. 005247-027364, Replaced By: A3073002428
44
LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 030214, Replaced By: A3073003228
44
LEVER (DOUBLE LEVER)
44
LEVER (DOUBLE LEVER)
44
LEVER (DOUBLE LEVER), NOT FOR USE WITH DAIMLER-BENZ BODY FROM IDENT NO. 033472 ALSO INSTALLED ON 033267 EXCEPT FOR 033588,033589,033610,033620,033621,033641,033649,033650. FOR USE LESS DAIMLER-BENZ BODY FROM IDENT NO. 033656 ALSO INSTALLED ON 033267 EXCEPT FOR 033588,033589,033610,033620,033621,033641,033649,033650.
48
LEVER (DOUBLE LEVER)
52
LEVER (DOUBLE LEVER)
56
LEVER (DOUBLE LEVER)
58
LEVER (DOUBLE LEVER)
60
SCREW , Replaced By: N000933008337
60
SCREW , Replaced By: A0099900101
60
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
60
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
60
SCREW , Replaced By: N304017008040
60
SCREW BRACKET TO SIDE MEMBER
60
SCREW , Replaced By: N304017008027
60
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
64
NUT , Replaced By: N304032008006
68
PIN
72
PIN DOUBLE LEVER, FROM IDENT NO. 005247-027544 ALSO INSTALLED ON 027365
72
PIN DOUBLE LEVER, FROM IDENT NO. 027545 EXCEPT FOR 027365
72
PIN DOUBLE LEVER
72
PIN DOUBLE LEVER
74
PIN INTERMEDIATE LEVER
76
PIN DOUBLE LEVER
80
BALL PIVOT BOTTOM B13X5 MM
80
BALL PIVOT , Replaced By: A3129910120
80
BALL PIVOT LEVER
84
STOP
88
SWITCH , Replaced By: A3575407645
88
SWITCH (LEVEL SWITCH)
88
SWITCHMILTAC,005246
88
SWITCHMILTAC,005246
88
SWITCH DOOR CONTROL LOCK,005247
88
SWITCH DOOR CONTROL LOCK,005247
88
SWITCH DOOR CONTROL LOCK
88
SWITCH DOOR CONTROL LOCK
90
PLATE ACCELERATOR PEDAL SWITCH
92
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
96
SWITCH DECLUTCHING START UNIT IN ENGINE COMPARTMENT, Replaced By: A0138200410
96
SWITCH BLOCK DECLUTCHING START SWITCH
100
SWITCH BLOCK DECLUTCHING START SWITCH
100
KNOB DECLUTCHING START SWITCH, Replaced By: A0138200410
100
LEVER OPERATING LEVER
100
LEVER OPERATING LEVER
104
BEARING BRACKET ACCELERATOR PEDAL,000789
108
BRACKET , Replaced By: A3172910640
108
BRACKET ACCELERATOR PEDAL
112
SCREW , Replaced By: N304017008021
112
SCREW PIPE CLAMP
116
NUT , Replaced By: N913004008001
120
ACCELERATOR PEDAL , Replaced By: A3173000304
120
ACCELERATOR PEDAL
124
SCREW , Replaced By: N304017008034
124
SCREW BRACKET TO CROSS CONNECTION STRUT
128
NUT , Replaced By: N304032008006
132
SCREW FUSE M 4X40
132
SCREW FUSE M 4X40
134
SCREW T-FITTING TO BRACKET M4X25
136
WASHER SWITCH TO BEARING BRACKET
136
WASHER SWITCH TO BEARING BRACKET
136
WASHER , Replaced By: N000125004319
136
WASHER BRACKET TO SUPPORT
140
LOCK WASHER T-FITTING TO BRACKET
140
LOCK WASHER T-FITTING TO BRACKET
144
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
144
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
146
NUT , Replaced By: N913002004001
146
NUT ATTACHMENT, MARKER LIGHT
148
STOP ACCELERATOR PEDAL
152
SCREW , Replaced By: N304017006016
152
SCREW PUMP TO BRACKET
152
SCREW , Replaced By: N304017008034
152
SCREW BRACKET TO CROSS CONNECTION STRUT
156
NUT , Replaced By: N913004006001
156
NUT PUMP TO BRACKET
156
NUT , Replaced By: N304032008006
160
BRACKET STOP
164
SCREW IN CASE OF SUBSEQUENT INSTALLATION
168
NUT TWO-WAY VALVE TO BRACKET
999
LEVER (DOUBLE LEVER)
999
LEVER (DOUBLE LEVER), NOT FOR USE WITH DAIMLER-BENZ BODY FROM CHASSIS 033472 ALSO INSTALLED ON 033627 EXCEPT FOR 033588,033589,033610,033620,033621,033641,033649,033650. FOR USE LESS DAIMLER-BENZ BODY FROM CHASSIS 033656 ALSO INSTALLED ON 033627 EXCEPT FOR 033588,033589,033610,033620,033621,033641,033649,033650.
999
LEVER (DOUBLE LEVER), NOT FOR USE WITH MERCEDES-BENZ BODY UP TO IDENT NO. 033578 EXCEPT FOR 033627 ALSO INSTALLED ON 033588,033589,033610,033620,033621,033641,033649,033650. FOR USE WITH MERCEDES-BENZ BODY UP TO IDENT NO. 033580 EXCEPT FOR 033627 ALSO INSTALLED ON 033588,033589,033610,033620,033621,033641,033649,033650.
