Поз.
Артикул
Описание

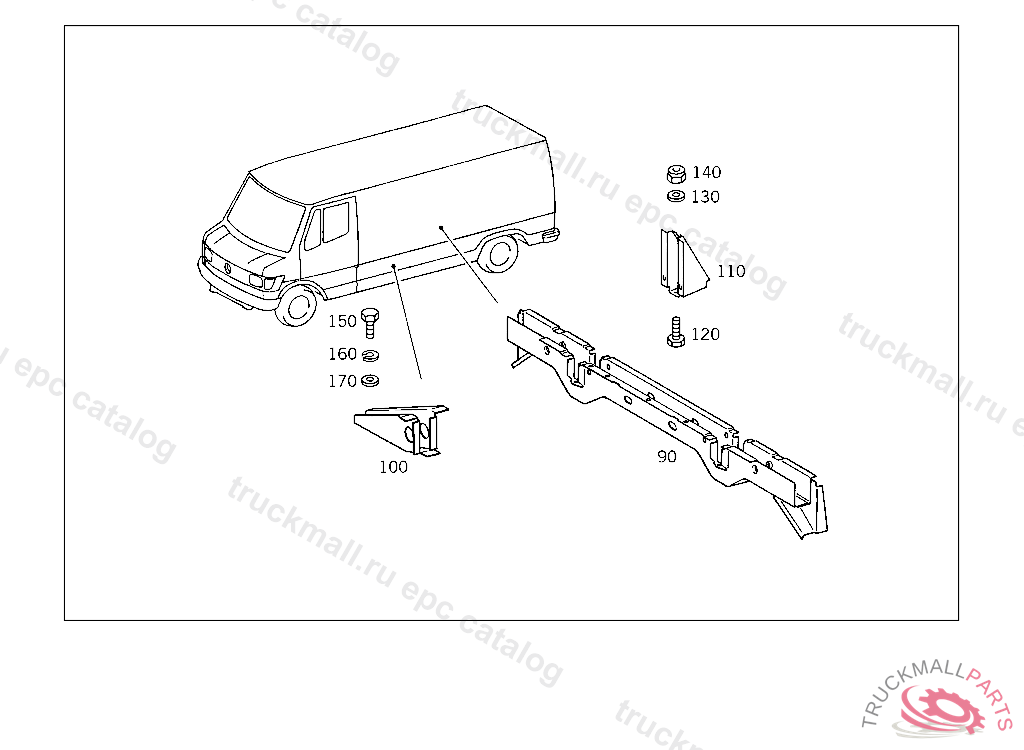

90
CROSS MEMBER
90
CROSS MEMBER , Replaced By: A6113102537
100
BRACKET FUEL SYSTEM,691934
110
BRACKET
110
BRACKET
120
SCREW BRACKET TO SIDE MEMBER
120
SCREW , Replaced By: N304017010002
130
WASHER STRUT TO CROSS MEMBER
130
WASHER , Replaced By: N007349010007
140
NUT STRAP TO BRACKET
140
NUT , Replaced By: N910113010000
150
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
160
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
170
WASHER
