Главная
›
Mercedes
›
BUS
›
309 D/310 D
›
602.477
›
31 FRAME
›
001 FRAME IL. 1
Mercedes N304017010043 - БОЛТ М10
309 D/310 D 602.477

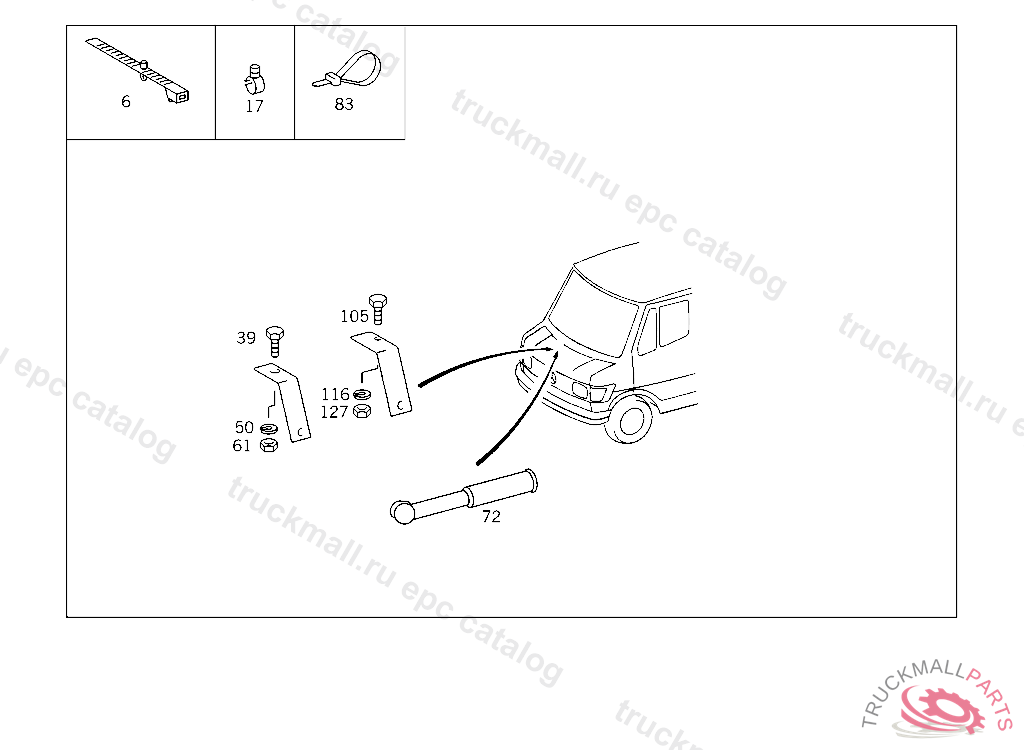

31 FRAME - 001 FRAME IL. 1
Поз.
Артикул
Описание
6
A1169970890
LOOM TIE
6
A1169970690
LOOM TIE , Replaced By: A1169970890
17
A1159950565
CLAMP ELECTRIC CABLE TO BRAKE HOSE
39
N304017010043
SCREW BRACKET TO CONSOLE
50
N912004010102
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
61
N304032010002
NUT
72
A6015460035
BOOT CONDUCTOR RAIL
83
A0019978390
LOOM TIE LINE MOUNTING 280 MM
105
N000933008145
SCREW CLAMP TO BRACKET AND TO PIPE
116
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
127
N304032008005
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
999
A6015460280
CABLE GUIDE STARTING MOTOR
999
A6015460380
CABLE GUIDE STARTING MOTOR
