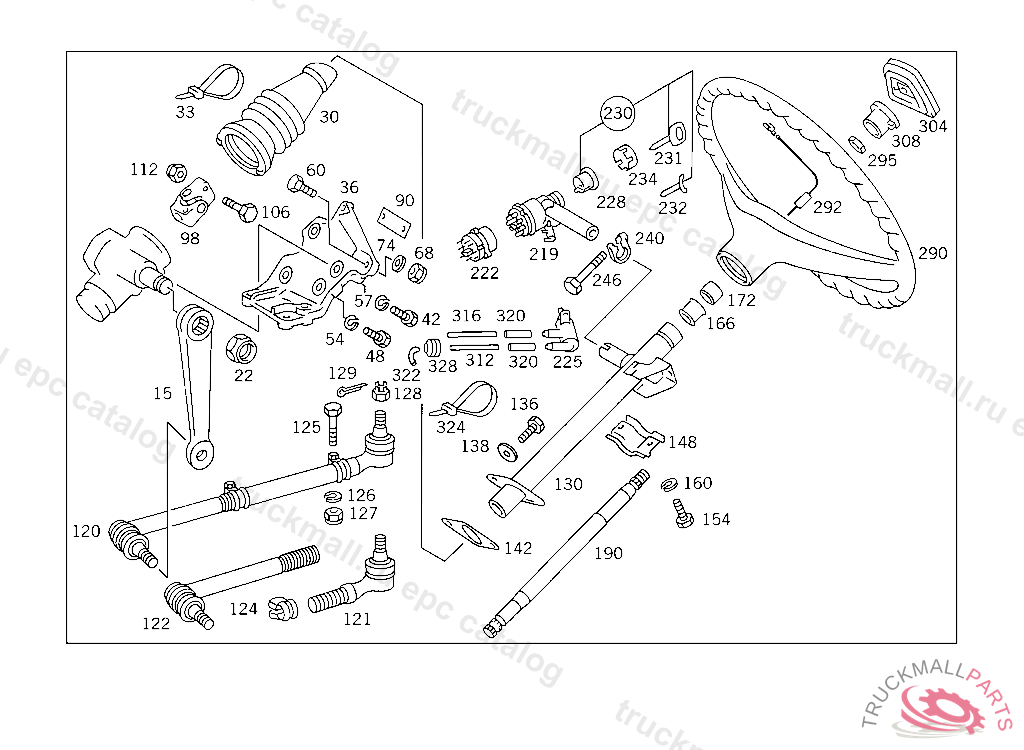

Поз.
Артикул
Описание
15
PITMAN ARM , 166249 P 000001
15
PITMAN ARM
22
NUT DRAG LINK TO LEVER
30
BOOT ,P 235579, Replaced By: A6114620096, +001A6014620297
30
BOOT UNIVERSAL JOINT COVERING,P 235580
33
LOOM TIE LINE MOUNTING
36
CONSOLE (STEERING BRACKET), INSTALL AS ADDITIONAL REINFORCEMENT UP TO CHASSIS 044324
36
CONSOLE (STEERING BRACKET)
42
FITTED SCREW STEERING TO STEERING BRACKET
48
SCREW BRACKET TO FRAME SIDE MEMBER
54
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
57
LOCK WASHER OIL PUMP TO TRANSMISSION CASE
60
SCREW CONNECTOR TO REAR SHIFTING ROD
60
HEXAGON HEAD BOLT BRACKET TO BRACKET
60
HEXAGON HEAD BOLT VIBRATION ABSORBER TO BRACKET
68
NUT CROSS MEMBER TO SIDE MEMBERS
74
WASHER RADIATOR TO RUBBER MOUNTING
90
BRACKET , Replaced By: A3184923441
90
BRACKET , Replaced By: A3184923841
90
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
98
UNIVERSAL JOINT ,370112
98
UNIVERSAL JOINT ,P 292961
98
UNIVERSAL JOINT ,370112
98
UNIVERSAL JOINT ,370112
106
SCREW UNIVERSAL JOINT TO STEERING COLUMN M 8X38,5 463984
112
NUT STRAP TO BRACKET
120
DRAG LINKLEMFOERDER, USE LOCK NUT FOR HEXAGON SOCKET : A 003 990 78 51
120
DRAG LINK , Replaced By: A6014601505
121
DRAG LINK END , Replaced By: A0004608548
121
DRAG LINK ENDLEMFOERDER
122
DRAG LINK END , Replaced By: A0004608648, +001A0039907851
122
DRAG LINK END
124
CLAMP DRAG LINK END TO DRAG LINK
124
CLAMP DRAG LINK END TO DRAG LINK
125
SCREW , Replaced By: N000961010031
125
SCREW CONSOLE TO SIDE MEMBER
125
SCREW , Replaced By: N308676010023
126
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
127
HEXAGON NUT
127
NUT , Replaced By: N308673010000
127
NUT , Replaced By: N910113010002
127
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
128
NUT M14X1,5 MM
128
NUT DRAG LINK TO LEVER SELF-LOCKING
129
COTTER PIN LEVER TO SUPPORT
130
STEER. COLUMN JACKET TUBE , Replaced By: A6114600216
130
STEER. COLUMN JACKET TUBE
136
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
138
WASHER , Replaced By: N009021008213
138
WASHER BRACKET TO LEFT SIDE MEMBER
142
SEAL STEERING COLUMN JACKET TUBE TO FLOOR PLATE,P 235579
142
COVERING STEERING COLUMN JACKET TUBE TO FLOOR PLATE,P 235580
148
CLAMP STEERING COLUMN JACKET TUBE TO INSTRUMENT PANEL
148
CLAMP , Replaced By: A6119950410
154
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
160
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
166
BUSHING STEERING COLUMN JACKET TUBE
172
RING STEERING COLUMN JACKET TUBE
190
STEERING SHAFT
190
STEERING SHAFT
219
SWITCH STARTING SWITCH TO BASE PLATE, FROM IDENT NO. 240107-499999 ALSO INSTALLED ON:237253,237254,240088556500P 000001
222
SWITCH STARTING SWITCH, NOT FOR RETROFIT/CATALYST VEHICLES
222
IGNITION SWITCH , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 564705 F 736504, Replaced By: A1244620493
222
IGNITION SWITCH , Replaced By: A2025450304
222
IGNITION SWITCH , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 328330 F 184466, Replaced By: A1244620193
228
TUMBLER , Replaced By: A6014600304
228
TUMBLER WITH LOCK DEFINED, STATE LOCK NUMBER WHEN ORDERING
230
TUMBLER WITHOUT LOCK UNDEFINED
231
KEYHUF, STATE LOCK NUMBER WHEN ORDERING
232
KEY BLANK HUF
234
COVER
234
COVER , Replaced By: A1234620523
240
CLAMPING PIECE
246
HEXAGON HEAD BOLT. SCREW STARTER SWITCH TO STEERING COLUMN JACKET TUBE
290
STEERING WHEEL
292
CONTACT PIECE STEERING WHEEL
295
NUT COMPRESSED AIR LINE THRU FRAME,5 395034
304
SIGNAL PLATE STEERING WHEEL, NO.8316INO.7C52INO.7B90INO.9051I II I
308
CONTACT PLATE STEERING WHEEL
316
PIPE LINE FROM CHECK VALVE DISTRIBUTOR TO SUPPLY TANK 500 MM, ORDER BY THE METER 114.010 FROM CHASSIS 031062,114.015,017 FROM CHASSIS 033609,114.021 FROM CHASSIS 001552,114.022 FROM CHASSIS 000843,114.023 FR OM CHASSIS 000001 115.010 FROM CHASSIS 034113,115.015 FROM CHASSIS 032215 114.010,021,022 UNTIL PRODUCTION STOP, 114.011 UP TO CHASSIS 108425, 114.015,017 UP TO CHASSIS 245853, 114.023 UP TO CHASSIS 100866 AND FOOTN.63
316
HOSE , ORDER BY THE METER
320
HOSE *** 30 MM
