Mercedes N009021005203 - Диск

O 404 614.313 FROM IDENT-NO. 069375

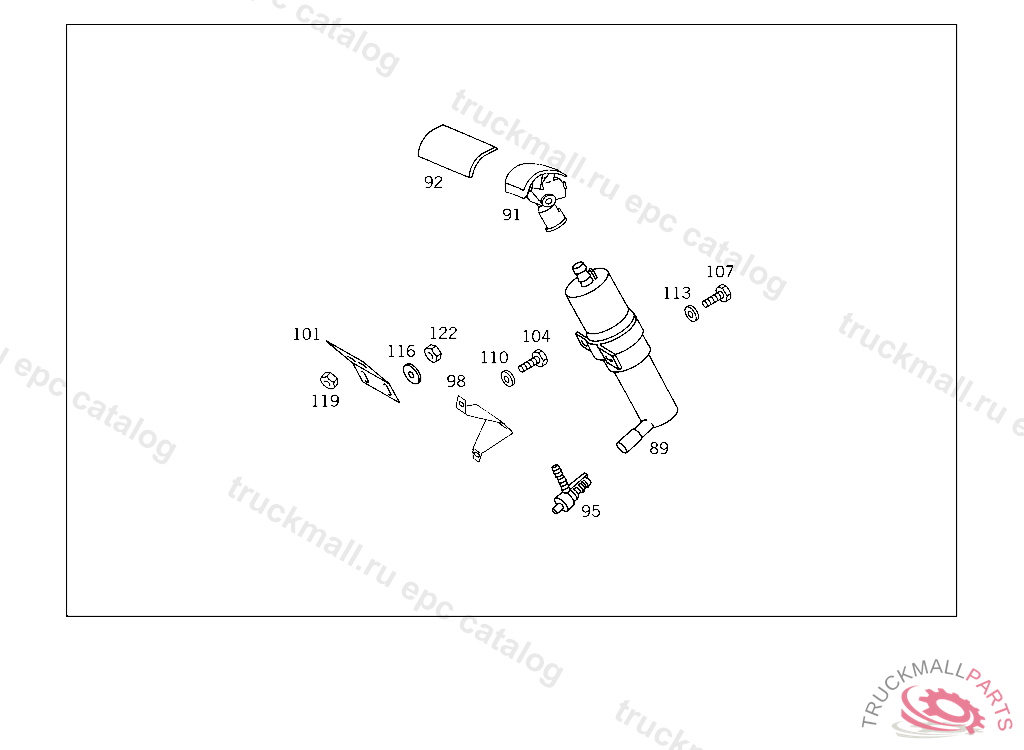

82 ELECTRICAL SYSTEM - 001 WINDSHIELD/HEADLAMP WASHER IL.2

Поз.
Артикул
Описание
89
A0008601090
WINDSHIELD WASHER HEADLAMP
91
A3568600247
NOZZLE HEADLAMP
92
A3568690108
COVERING NOZZLES
95
A0008691224
CONNECTOR NOZZLES
98
A3568601014
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3568602014
98
A3568601114
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3568602114
98
A3568602014
BRACKET , Replaced By: A3568690514, +001A3568690614
98
A3568602114
BRACKET , Replaced By: A3568690514, +001A3568690614
98
A3568690514
HOLDER
101
A3568690614
HOLDER
104
N914007006013
COMBINATION BOLT
107
N000933005059
SCREW BRACKET TO TAIL LAMP BRACKET
110
N000125005304
WASHER FUEL LINES TO BRACKET
113
N009021005203
WASHER HYDRAULIC LINE TO CAB
116
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
119
N304032006004
NUT SPRING-LOADED PUSH ROD
122
N304032005000
NUT ,230416
