Поз.
Артикул
Описание

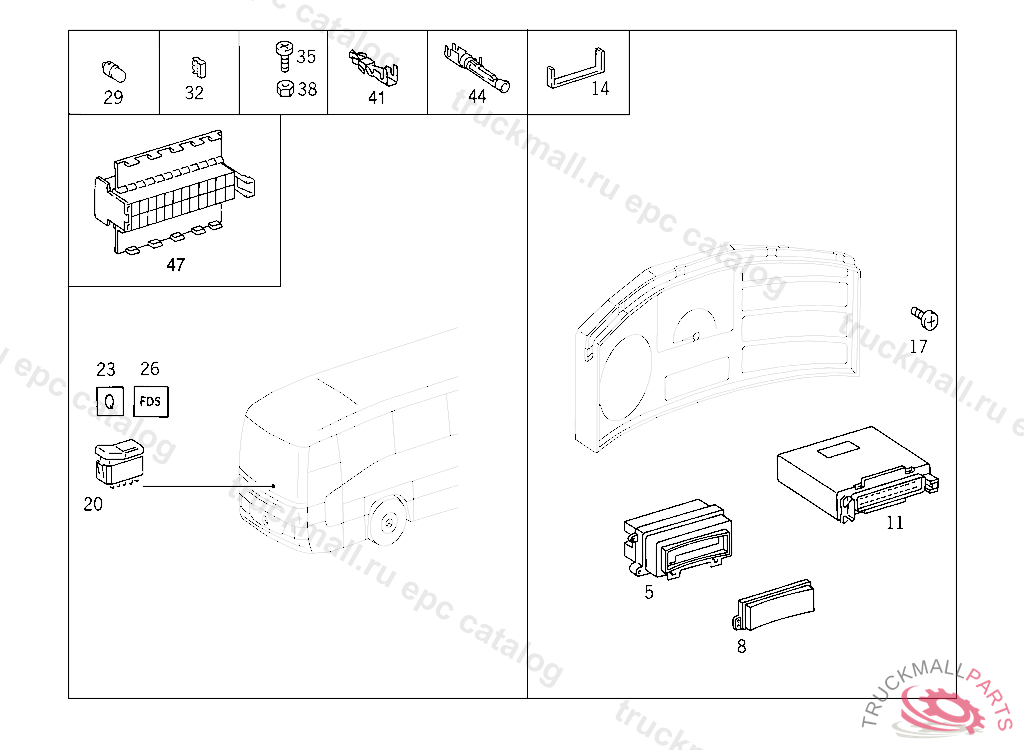

5
WARNING INDICATOR
8
DIAL FACING
11
MODULE MINI DISPLAY DIAGNOSIS
14
PLASTIC SECTION VOLTAGE TRANSFORMER 290 MM, ORDER BY THE METER
17
SCREW APPARATUS PLATE TO CAB,K 062140
17
SCREW , Replaced By: N007985006580
20
SWITCH ACKNOWLEDGEMENT OF FLEXIBLE SERVICE SYSTEM
23
LENS ACKNOWLEDGEMENT OF FLEXIBLE SERVICE SYSTEM
26
LENS FAILURE OF VEHICLE DIAGNOSIS SYSTEM (FDS)
29
BULB24V/1W, Replaced By: N049846000001
32
FUSE , Replaced By: N072581000303
32
FUSE MODULE 7.5 A
35
SCREW TEMPERATURE SWITCH M 3X10
38
NUT PLUG SOCKET TO BRACKET,5 906887
41
CONTACT SPRING0,5 - 1,0 MM2
44
ROUND PIN BUSHING
47
PIN BUSHING HOUSING 22-POLE
999
BULB , Replaced By: A0025441794
999
CABLE HARNESS , WHEN ORDERING CABLE HARNESSES STATE THE FOLLOWING: VEHICLE, IDENT. NO., INSTALLATION LOCATION/FUNCTION,AND/OR THE HARNESS NUMB ER ON THE HARNESS OR THE PART NUMBER
