Mercedes N912004005103 - КРЕПЕЖ

O 404 614.445 FROM IDENT-NO. 069375

82 ELECTRICAL SYSTEM - 001

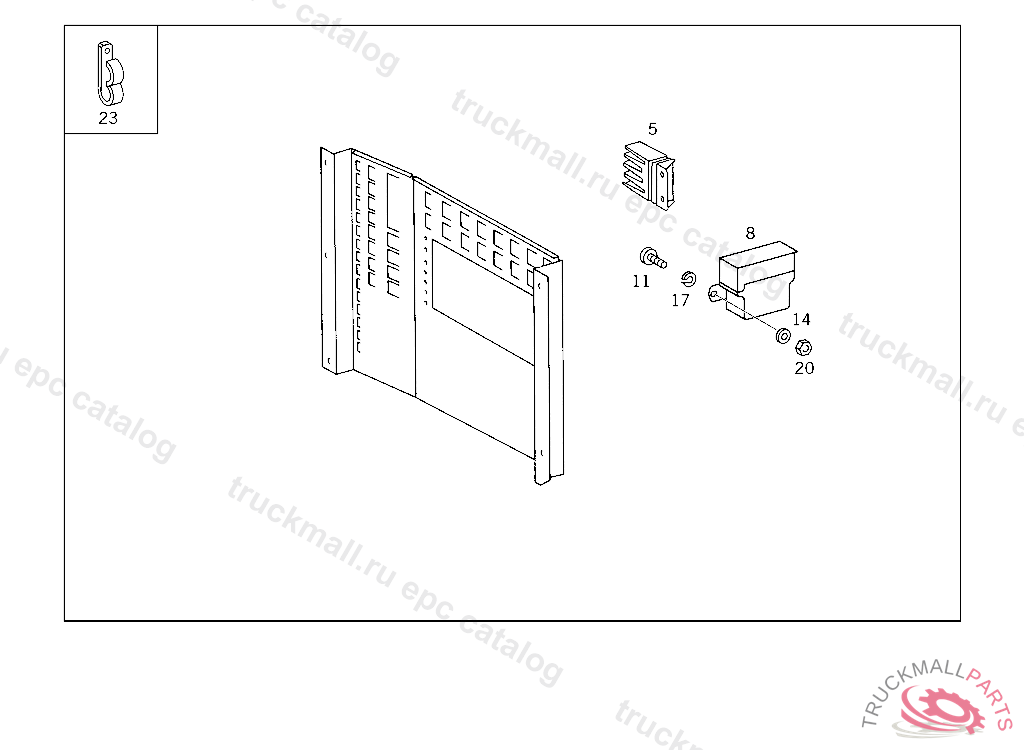

Поз.
Артикул
Описание
5
A0025458532
CONTROL UNIT
8
A0005400024
DIODE BOX RELAY TYP: AK 336.1
11
N007985005157
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
14
N009021006205
WASHER , Replaced By: N009021006208
14
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
17
N912004005103
LOCK WASHER BRACKET TO STEERING COLUMN END
20
N000934006007
NUT BALL PIVOT TO LEVER
23
A0009954820
CLAMP
999
A3565404913
CABLE HARNESS , WHEN ORDERING CABLE HARNESSES STATE THE FOLLOWING: VEHICLE, IDENT. NO., INSTALLATION LOCATION/FUNCTION,AND/OR THE HARNESS NUMB ER ON THE HARNESS OR THE PART NUMBER
