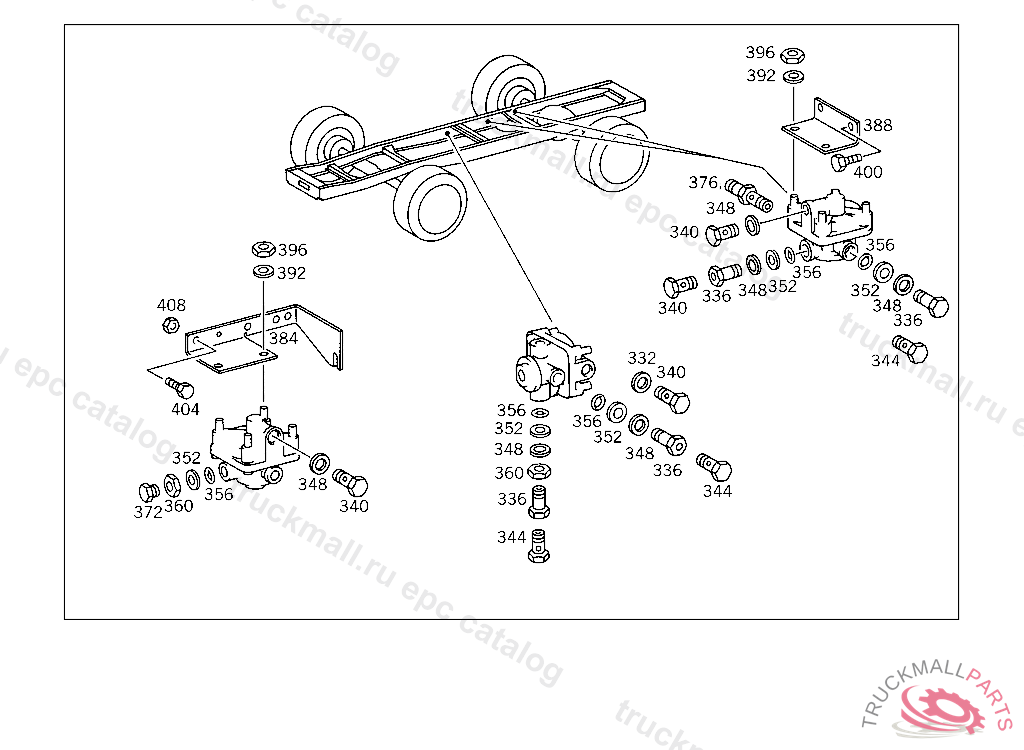

Поз.
Артикул
Описание
332
VALVE (RELAY VALVE)
336
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
340
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
344
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
348
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
352
THRUST RING CHECK VALVE TO AIR RESERVOIR
352
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
356
O-RING CHECK VALVE TO AIR RESERVOIR
360
NUT CHECK VALVE TO AIR RESERVOIR
372
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
372
SCREW PLUG AT TANK
376
HOLLOW SCREW FITTING RELAY VALVE,CONNECTION "20",LEFT
384
BRACKET RELAY VALVE
388
BRACKET RELAY VALVE
392
WASHER , Replaced By: N000125008443
392
WASHER EXHAUST MUFFLER TO STRAP
396
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
396
NUT , Replaced By: N913004008001
400
SCREW , Replaced By: N304017008034
400
SCREW BRACKET TO CROSS CONNECTION STRUT
404
SCREW END PIECE TO EXHAUST PIPE M 10X25
408
NUT , Replaced By: N910113010000
408
NUT STRAP TO BRACKET
999
THRUST RING THROTTLE VALVE,CONNECTIONS: "1,2"
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR 9X12 MM, LENGTH AVAILABLE 3000 MM
999
ADAPTER FITTING , Replaced By: A0004296934
999
ADAPTER FITTING LINE MOUNTING
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
VALVE (TWO-/TWO-WAY VALVE)
999
FITTING ,5 418584
999
FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
999
LOOM TIE LINE MOUNTING 280 MM
999
LOOM TIE LINE MOUNTING
999
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
999
SWITCH RELAY VALVE,CONNECTIONS: "2" ,6-7BAR
999
FITTING (DELIVERY LINE),FROM PUMP TO STEERING, Replaced By: A9329970772
999
FITTING AIR RESERVOIR,CONNECTION: "52",K 093236, Replaced By: N000000006190
999
VALVE (THROTTLE VALVE)
999
FITTING , NOT USED
999
SEAL RING THROTTLE VALVE,CONNECTIONS: "1,2"
999
FITTINGNO.II, 12 MM
999
LINE FROM PRESSURE REGULATOR TO SLIDE, LENGTH AVAILABLE 3000 MM
999
SOCKET WRENCH
999
BEARING BRACKET , Replaced By: A6164200178
999
BRACKET TRAILER BRAKE VALVE,5 276599
999
BRACKET SOLENOID VALVE
999
BRACKET BRAKE HOSE MOUNTING
999
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.5 281547, Replaced By: A6154311440
999
BRACKET LINE MOUNTING
999
BEARING BRACKET COMBINATION CYLINDER
999
STRAP SPRING-LOADED BRAKE AIR RESERVOIR, Replaced By: A6554900942
999
STRAP , Replaced By: A6214900242
999
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
999
STRAP , Replaced By: A6554900942
999
STRAP PARTICLE FILTER
999
FITTING (DELIVERY LINE),FROM PUMP TO STEERING
999
FITTING AIR RESERVOIR,CONNECTION: "52",K 093236
999
SCREW PLUG , Replaced By: N000908022011
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
999
GLAND LINE CONNECTION
999
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
999
CLAMPING SLEEVE , IN CASE OF STEEL AXLE
999
SEAL RING VALVE TO VALVE,K 025179
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
VALVE CAP
999
VALVE INSERT. VALVE CAP 3/2-WAY VALVE,CONNECTION: "2"
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT , Replaced By: N913004008001
999
UNION NUT LINE CONNECTION
999
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
