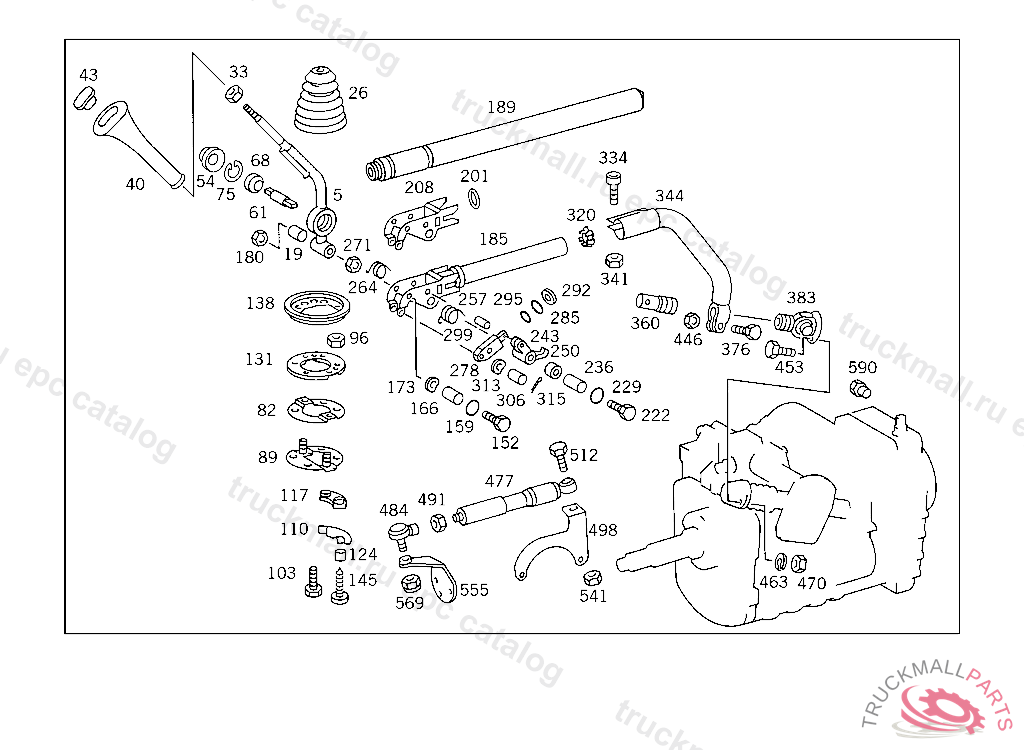

Поз.
Артикул
Описание
5
SHIFT LEVER REMOTE GEARSHIFT MECHANISM,4 291253
5
SHIFT LEVER REMOTE GEARSHIFT MECHANISM,4 291252
19
BUSHING PAWL TO ROD END,5 443047
26
BOOT SHIFTING LEVER
33
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
40
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
43
COVER 6-SPEED,SHIFT LEVER KNOB
54
BOOT SHIFT LEVER BEARING
54
BOOT , Replaced By: A6202680196
61
PIN SHIFT LEVER BEARING,K040603
68
JOINT BEARING SHIFT LEVER BEARING,K040603
68
JOINT BEARING SHIFT LEVER BEARING,K040603
68
JOINT BEARING , Replaced By: A0019813931
75
LOCK RING SHIFT LEVER BEARING
82
BRACKET SHIFT LEVER UPPER PART,K040603
89
BRACKET SHIFT LEVER LOWER PART,K040603
96
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
96
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
96
NUT , Replaced By: N913004008001
103
SCREW , Replaced By: N304017008018
103
SCREW SUPPORT TO FENDER
110
BRACKET SHIFT LEVER BEARING TO CAB FLOOR
117
RUBBER PAD SHIFT LEVER BEARING TO CAB FLOOR
124
TUBE. BUSHING CAB FLOOR COVERING
131
RUBBER PAD SHIFT LEVER TO CAB FLOOR,K040603
138
BRACKET BOOT
145
SHEET METAL SCREW BRACKET TO CAB
152
SCREW SHIFTING ROD TO SHIFT LEVER
152
SCREW , Replaced By: N000933010192
159
ROUND CORD RING. SEAL RING ROD END
166
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
173
SPRING WASHER SHIFTING ROD TO SHIFT LEVER
180
NUT STRAP TO BRACKET
180
NUT , Replaced By: N910113010000
185
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
185
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
189
SHIFTING TUBE (TELESCOPIC TUBE)
201
SEAL RING HYDRAULIC RELEASE
208
ROD END HYDRAULIC RELEASE
222
SCREW SHIFTING ROD TO SHIFT LEVER
222
SCREW , Replaced By: N000933010192
229
ROUND CORD RING. SEAL RING ROD END
236
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
243
PAWL SHIFTING ROD,5 443048
243
PAWL ,5 4430475 443048, Replaced By: A6202600087, +001A6202680150
250
BUSHING PAWL TO ROD END,5 443047
257
SPRING ROD END
264
SPRING ROD END
271
NUT STRAP TO BRACKET
271
NUT , Replaced By: N910113010000
278
SHIFTING CYLINDER HYDRAULIC RELEASE WABCO
278
SHIFTING CYLINDER HYDRAULIC RELEASE TECHNOMATIK
285
SEAL RING PISTON RINGS WABCO
292
SEAL RING SCREW FITTING WABCO
295
SEAL RING OUTSIDE WABCO
299
PIN SHIFTING CYLINDER TO PAWL 8X20 MM
299
PIN , Replaced By: N001444008235
306
PIN SHIFTING CYLINDER TO YOKE 8X45 MM
313
SPRING WASHER SHIFTING CYLINDER TO YOKE
315
COTTER PIN LEVER TO ROD
315
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
320
WASHER BETWEEN THE SHIFTING RODS
334
SCREW FRONT SHIFTING ROD TO REAR SHIFTING ROD
341
NUT STRAP TO BRACKET
341
NUT , Replaced By: N910113010000
344
SHIFTING ROD
344
SHIFTING ROD
360
CONNECTOR , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6172680028
376
SCREW CONNECTOR TO REAR SHIFTING ROD
383
JOINT SHIFTING ROD TO TRANSMISSION
383
JOINT SHIFTING ROD TO TRANSMISSION
446
NUT STRAP TO BRACKET
446
NUT , Replaced By: N910113010000
453
SCREW SHIFTING ROD TO TRANSMISSION
463
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
470
NUT
477
VIBRATION ABSORBER
484
JOINT VIBRATION ABSORBER
491
NUT
498
LEVER TRANSMISSION GEARSHIFT
498
LEVER TRANSMISSION GEARSHIFT
512
SCREW MOUNTING AND RAIL TO LEAF SPRING
590
LOCK NUT SPEEDOMETER DRIVE COVERING
999
CLAMPING PIECE SHIFTING ROD TO TRANSMISSION
999
SPACER TUBE VIBRATION ABSORBER TO BRACKET
999
BRACKET VIBRATION ABSORBER
999
BRACKET VIBRATION ABSORBER
999
BUSHING PAWL TO ROD END,5 443048
999
BUSHING PAWL TO ROD END,5 443048
999
SCREW , Replaced By: N304017008016
999
SCREW , Replaced By: N304017010047
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW CONNECTOR TO REAR SHIFTING ROD
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
